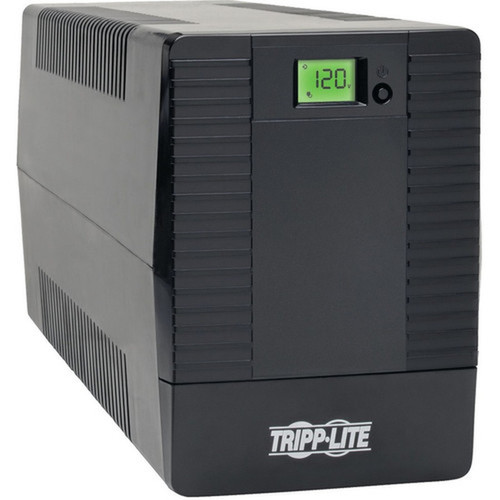

Tripp Lite by Eaton SMART750TSU 750VA/600W Tower UPS with AVR - 6 Battery Outlets - 8-Hour Recharge - 120V AC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This UPS operates on a single-phase, 60 Hz input and delivers a pulse-width modulated sine wave output, compatible with sensitive electronics like servers, networking gear, and workstations. It features a high-efficiency design rated above 95%, qualifying as a GREEN UPS to reduce energy costs and heat generation.
The integrated EMI/RFI noise filter suppresses line noise, while a 316 J surge energy rating protects against voltage spikes. Battery management includes alarms for low battery, fault, overload, and replace battery conditions, with a replaceable 12 V DC battery system that recharges in approximately 8 hours under typical conditions.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SMART750TSU combines robust power protection with user-friendly features for dependable operation in diverse settings. Its compact tower form factor fits easily under desks or in equipment closets, while the comprehensive outlet configuration supports multiple devices.
Enhanced Connectivity
Includes both serial and USB HID-compliant ports for remote monitoring and management via software, enabling automated shutdowns and status alerts.
- Serial Port: Yes
- USB (HID Compliant) Port: Yes
Operational Resilience
Designed for reliable performance across a wide range of environmental conditions, with a maximum operating temperature of 104°F (40°C) and storage tolerance from 5°F to 113°F.
- Maximum Operating Elevation: 9842.52 ft
- RoHS Compliant
Deployment / Use Cases
Ideal for safeguarding network infrastructure, digital signage, security systems, and desktop computers in retail, wholesale, casino, or office environments. The 4-minute full-load runtime provides a critical window for graceful shutdowns, while the 13-minute half-load runtime supports extended operation for less demanding loads.
Common applications include protecting DVRs, wireless routers, speakers, printers, home theater systems, and workstations from power interruptions and surges. Its tower design and NEMA 5-15P plug make it suitable for standard North American outlets, ensuring easy integration into existing setups.
Network & Security Backup
Ensures uninterrupted operation for routers, switches, and surveillance equipment, maintaining connectivity and recording during brief outages.
Office & Retail Support
Protects point-of-sale systems, computers, and monitors from data loss and hardware damage due to power fluctuations.
Physical Profile
The tower form factor measures 7.52" (191 mm) in height, 5.51" (140 mm) in width, and 15" (381 mm) in depth, offering a compact footprint for space-constrained installations. Weighing approximately 23.10 lb (10480 g), it remains portable while providing substantial power capacity. The design prioritizes efficient heat dissipation with 145 BTU/h thermal output, ensuring stable operation in enclosed spaces.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 7.52" (191 mm), 5.51" (140 mm), 15" (381 mm), 23.10 lb (10480 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 5.51" (140 mm)
- Depth
- 15" (381 mm)
- Height
- 7.52" (191 mm)
- Weight
- 23.10 lb (10480 g)
What's in the Box
The package includes all necessary components for immediate setup and operation.
Package contents include SMART750TSU 750VA Tower UPS USB Cable DB9 Cable Owner's Manual, SMART750TSU 750VA Tower UPS. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 750 VA/600 W load capacity for reliable backup power during outages
- Automatic voltage regulation (AVR) corrects brownouts and overvoltages without battery drain
- 6 battery/surge outlets plus 2 surge-only outlets for flexible device protection
- 4-minute full-load runtime and 13-minute half-load runtime for safe shutdowns

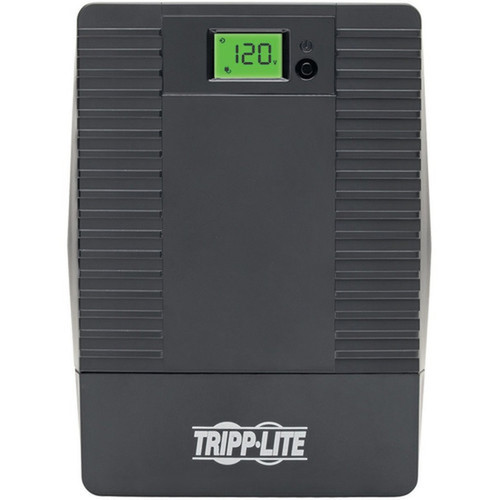

- Front-panel LCD displays real-time input/output voltage, load, and battery status
- USB and serial ports enable remote monitoring and management
- 8-hour typical battery recharge time with user-replaceable battery
- Tower form factor with compact dimensions for easy placement under desks
- Above 95% efficiency rating reduces energy costs and heat output
- 3-year limited warranty with RoHS compliance for environmental safety
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART750TSU |
| Brand Name | Tripp Lite series |
| Product Line | SmartPro |
| Product Model | SMART750TSU |
| Product Name | SMART750TSU 750VA Tower UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Number of Surge-only Outlets | 2 |
| Transfer Time | 6 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | Greater than 95% efficiency - GREEN UPS |
| Application/Usage | Network,Digital Signage,Security System,Monitor,Desktop Computer,Retail and Wholesale,Casino,High-end System Component,DVR,Wireless Router,Home Network,Speaker,Printer,Home Theater,Workstation,Equipment |
| Power Description | |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 600 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC,115 V AC,110 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 316 J |
| Management | |
| Alarm | Low Battery,Fault,Overload,Replace Battery |
| Controls/Indicators | |
| Status Indicators | Front Panel LCD Display: Input voltage Output voltage Load percentage Battery charge percentage Overload status |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 12 V DC |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 13 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Thermal Dissipation | 145 BTU/h |
| Physical Characteristics | |
| Height | 7.52" (191 mm) |
| Width | 5.51" (140 mm) |
| Depth | 15" (381 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 23.10 lb (10480 g) |
| Miscellaneous | |
| Package Contents | SMART750TSU 750VA Tower UPS USB Cable DB9 Cable Owner's Manual |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of the SMART750TSU UPS?
The SMART750TSU provides 750 VA (volt-amps) and 600 W (watts) of load capacity. This rating determines how much equipment it can support during a power outage, making it suitable for desktop computers, networking devices, and other critical electronics.
How long does the battery last during a power outage?
At full load (600 W), the battery runtime is approximately 4 minutes, allowing time for safe shutdowns. At half load (300 W), runtime extends to about 13 minutes. Actual times may vary based on connected device load and battery condition.
What types of outlets does this UPS have?
It includes 6 NEMA 5-15R battery/surge outlets that provide backup power and surge protection, plus 2 surge-only outlets for additional protection without battery backup. All outlets use standard North American connectors.
Does this UPS include automatic voltage regulation (AVR)?
Yes, the SMART750TSU features AVR to correct minor voltage fluctuations without switching to battery power. This extends battery life and ensures stable operation during brownouts or overvoltages, common in areas with unreliable grid power.
How do I monitor the UPS status?
A front-panel LCD display shows real-time input voltage, output voltage, load percentage, battery charge percentage, and overload status. For remote management, USB and serial ports allow connection to monitoring software for alerts and automated shutdowns.
What is the recharge time for the battery?
The typical battery recharge time is 8 hours under normal conditions. The battery is user-replaceable, and the UPS includes alarms to indicate when replacement is needed, ensuring long-term reliability.
What power capacity is listed for this UPS?
The listed power specification is 750 VA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 6, which helps buyers understand how many connected devices it can support in its intended deployment.
