Tripp Lite by Eaton S3M15K3B SmartOnline 15kVA Tower UPS - Double Conversion Online - 120/230V AC Input - 120/208V AC Output - Pure Sine Wave
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double conversion online UPS operates with true online topology, providing complete isolation from input power anomalies. The 15 kVA capacity supports unity output power factor (1.0), allowing more equipment to be protected without overloading the system. Input accepts 120V or 230V AC, while output delivers 120V or 208V AC at 60Hz with pure sine wave quality.
Battery configuration includes three batteries with 120V DC system voltage, delivering 13 minutes of runtime at full load and 27 minutes at half load. The typical recharge time is 8 hours. Thermal management handles 3686 BTU/h dissipation, with operation up to 104°F (40°C) and 3280 ft elevation.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Transfer Time, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SmartOnline S3M15K3B combines enterprise-grade power protection with operational efficiency and space-saving design. Its double conversion technology ensures clean, regulated power regardless of input conditions, while the compact tower footprint maximizes valuable server room space.
High Efficiency Operation
ENERGY STAR 2.0 certified with up to 98% efficiency in ECO mode and 94% in online mode, reducing utility and cooling costs significantly.
- Schedulable economy mode
- Reduced thermal output
- Lower operating expenses
Advanced Monitoring & Control

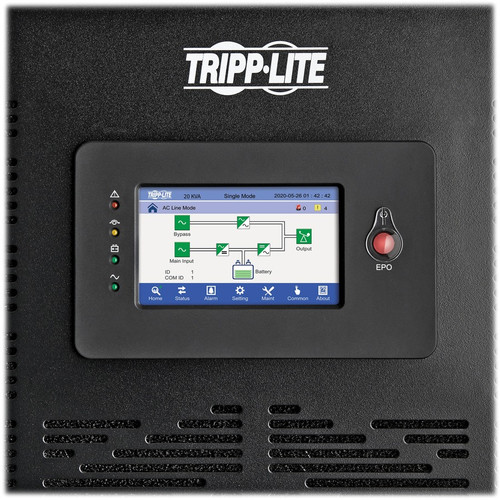

Large 5-inch color LCD touchscreen provides intuitive local monitoring with status, alarm, and maintenance screens, complemented by four LED indicators for quick status assessment.
- Comprehensive diagnostics
- User-friendly interface
- Multi-protocol remote management
Scalable & Redundant Design
Parallel capability supports up to four units for increased capacity or N+1 redundancy, while optional WEBCARDLXMINI network card enables cost-effective remote management.
- Parallel operation ready
- Capacity expansion
- Redundancy configurations
Deployment / Use Cases
This 15kVA tower UPS is designed for environments requiring reliable power protection for critical systems. Its three-phase hardwired configuration and robust capacity make it suitable for medium to large installations where power quality and uptime are non-negotiable.
Typical deployments include server rooms, data centers, network infrastructure, telecommunications equipment, financial systems, healthcare facilities, government operations, manufacturing plants, and edge computing locations. The unit's compact tower form factor allows flexible placement where rack space is limited or where standalone deployment is preferred.
Data Center & Server Room Protection
Provides clean, uninterrupted power to servers, storage arrays, and networking equipment, preventing data loss and hardware damage during power events.
Industrial & Critical Infrastructure
Supports manufacturing equipment, control systems, and telecommunications infrastructure where power anomalies could disrupt operations or cause safety issues.
Physical Profile
The tower design measures 34.17 inches in height, 9.84 inches in width, and 35.43 inches in depth, with a weight of approximately 525 pounds. This compact footprint optimizes floor space utilization while providing substantial power capacity. The front panel features the 5-inch LCD touchscreen and status LEDs for clear operational feedback.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 34.17" (867.92 mm), 9.84" (249.94 mm), 35.43" (899.92 mm), 525.15 lb (238204.03 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 9.84" (249.94 mm)
- Depth
- 35.43" (899.92 mm)
- Height
- 34.17" (867.92 mm)
- Weight
- 525.15 lb (238204.03 g)
What's in the Box
The package includes all necessary components for installation and operation:
Highlights
- 15 kVA double conversion online UPS with pure sine wave output
- 13-minute runtime at full load, 27 minutes at half load
- 120V/230V AC input to 120V/208V AC output, three-phase hardwired
- 5-inch color LCD touchscreen with comprehensive monitoring
- SNMP, SSH, and Telnet management for remote oversight
- Parallel capability for up to 4 units (capacity/redundancy)
- ENERGY STAR 2.0 certified with up to 98% efficiency
- Compact tower footprint saves valuable server room space
- Includes all necessary cables and connectors for installation
- 2-year limited warranty with RoHS compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | S3M15K3B |
| Brand Name | Tripp Lite series |
| Product Line | SmartOnline |
| Product Series | S3M |
| Product Model | S3M15K3B |
| Product Name | SmartOnline S3M15K3B 15kVA Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | Hard Wire (3-PH) |
| Transfer Time | 0 ns |
| Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes |
| Phase | Three Phase |
| Energy Saving | High efficiency economy mode operation; Schedulable daily hours of economy mode operation |
| Application/Usage | IT Equipment,Network,Telecommunication,Finance,Industrial,Data Center,Server Room,Critical System,Banking,Education,Healthcare,Government,Manufacturing Facility,Edge Computing |
| Power Description | |
| Load Capacity (VA) | 15 kVA |
| Input Voltage | 120 V AC,230 V AC |
| Output Voltage | 120 V AC,208 V AC |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Management | |
| Network Management | SNMP Manageable,SSH,Telnet |
| Alarm | Low Battery,Overload,Shutdown,Bypass Mode |
| Controls/Indicators | |
| Status Indicators | Front Panel LCD Display: Large touchscreen color LCD display (5in/ 12.7cm) enables comprehensive local monitoring Diagnostics and control Intuitive and user-friendly interface. Sub-screens Status: Home Status Alarm Setting Maint Common About LED Indicators: Four LEDs indicate AC mode (Green) Bypass (Yellow) Battery (Yellow) Fault (Red) Modes |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Battery Information | |
| DC System Voltage | 120 V DC |
| Number of Batteries | 3 |
| Backup/Run Time (Full Load) | 13 Minute |
| Backup/Run Time (Half Load) | 27 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 3280 ft (999744 mm) |
| Thermal Dissipation | 3686 BTU/h |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 34.17" (867.92 mm) |
| Width | 9.84" (249.94 mm) |
| Depth | 35.43" (899.92 mm) |
| Weight (Approximate) | 525.15 lb (238204.03 g) |
| Miscellaneous | |
| Package Contents | SmartOnline S3M15K3B 15kVA Tower UPS RS-232 Cable (Male/Female), 5 ft. (1.5 m) Parallel Cable (Male/Female), 5 ft. (1.5 m) USB Cable, 5 ft. (1.5 m) Battery Cable Anderson Connectors Set to Terminate a Battery Cable (2 Black, 2 White, 2 Red and several metal terminals) Cable Glands (x6) for Cable Landing Box (waterproof fasteners) Dry Contact Connector (Green) Owner's Manual |
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this UPS?
This Tripp Lite by Eaton SmartOnline UPS has a 15 kVA (kilovolt-ampere) load capacity. With unity output power factor (1.0), it can support more equipment without overloading compared to units with lower power factors. The three-phase hardwired configuration handles demanding electrical loads for medium to large installations.
How long does the battery last during a power outage?
At full load, the battery provides 13 minutes of runtime. At half load, runtime extends to 27 minutes. These times are based on the installed three-battery configuration with 120V DC system voltage. The typical recharge time after complete discharge is 8 hours.
What input and output voltages does this UPS support?
The UPS accepts input voltages of 120V AC or 230V AC. It delivers output voltages of 120V AC or 208V AC at 60Hz frequency. This dual-voltage capability provides flexibility for different electrical environments while maintaining pure sine wave output quality.
How is this UPS monitored and managed?
Local monitoring is provided through a 5-inch color LCD touchscreen with intuitive interface and status screens. Remote management supports SNMP, SSH, and Telnet protocols. The unit includes serial, USB (HID compliant), and EPO ports. An optional WEBCARDLXMINI network card enables cost-effective 24/7 remote management.
Can multiple units be connected together?
Yes, this UPS has parallel capability that allows connecting up to four units. This enables increased capacity for larger loads or N+1 redundancy configurations where one unit can take over if another fails. The package includes a 5-foot parallel cable for this purpose.
What is included in the package?
The package contains the SmartOnline S3M15K3B 15kVA Tower UPS, RS-232 cable (5 ft), parallel cable (5 ft), USB cable (5 ft), battery cable, Anderson connectors set (with terminals), cable glands (x6), dry contact connector, and owner's manual. All necessary components for installation are provided.
What power capacity is listed for this UPS?
The listed power specification is 15 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC,230 V AC, which helps position the unit for the right load level and installation role.
