Tripp Lite by Eaton SV60KL SmartOnline 60kVA Tower UPS - 3-Phase Pure Sine Wave - Hardwired Input/Output - SNMP/SSH/Telnet
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This UPS employs double conversion online topology, which continuously converts incoming AC power to DC and back to AC, providing complete isolation from utility power anomalies. The 60 kVA load capacity supports high-power equipment, while the pure sine wave output ensures compatibility with modern power supplies, reducing the risk of equipment malfunction or damage.
Network management capabilities include SNMP, SSH, and Telnet interfaces, enabling remote monitoring, configuration, and shutdown procedures. The three-phase hardwired design handles substantial electrical loads efficiently, and the unit's construction adheres to RoHS environmental standards, reflecting a commitment to reduced hazardous substances.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Phase, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SV60KL delivers enterprise-grade power protection with features that prioritize uptime and equipment safety. Its design eliminates single points of failure in power delivery, offering a robust solution for critical infrastructure.
Clean Power Output
Pure sine wave output ensures compatibility with sensitive electronics, reducing harmonic distortion and preventing equipment damage from irregular power waveforms.
- Compatible with active PFC power supplies
- Minimizes risk of data corruption
- Supports precision equipment
Advanced Management
Comprehensive network management protocols allow for seamless integration into existing IT infrastructure management systems.
- Remote monitoring via SNMP
- Secure configuration with SSH
- Legacy support with Telnet
Flexible Installation
Dual voltage capability and hardwired connections provide installation flexibility across different electrical environments.
- 120V/230V input/output
- Three-phase power handling
- Tower form factor for standalone deployment
Deployment / Use Cases
The SmartOnline SV60KL is engineered for environments where power continuity is critical to operations. Its substantial capacity and robust design make it suitable for protecting entire server racks, network operations centers, and industrial control systems.
In data center applications, this UPS can support multiple server racks during utility outages, providing time for graceful shutdowns or generator startup. For manufacturing facilities, it protects programmable logic controllers (PLCs) and automation equipment from power disturbances that could cause production downtime. Telecommunications installations benefit from its pure sine wave output for sensitive switching equipment, while healthcare facilities can use it to maintain power to diagnostic imaging systems and laboratory analyzers.
Data Center Protection
Provides backup power for server racks and networking equipment, ensuring business continuity during power events.
Industrial Applications
Safeguards manufacturing control systems and process automation equipment from power quality issues.

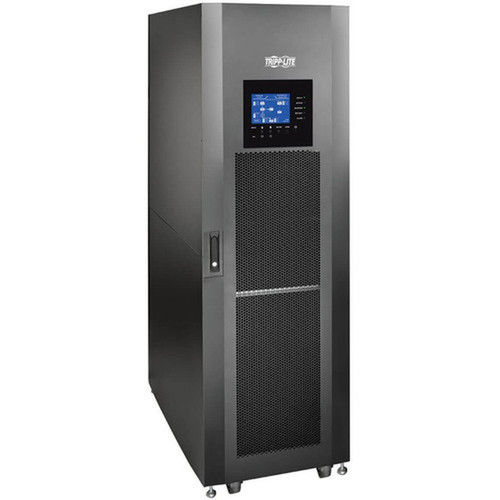

Physical Profile
The tower form factor measures 79.13" high, 23.62" wide, and 43.30" deep, with an approximate weight of 830 pounds. This substantial footprint accommodates the internal components necessary for 60 kVA power capacity, including batteries and power modules. The design prioritizes serviceability and heat dissipation, with accessible components for maintenance. When planning installation, ensure adequate floor space and structural support for the weight, along with proper ventilation to maintain optimal operating temperatures.
- Width
- 23.62" (599.95 mm)
- Depth
- 43.30" (1099.82 mm)
- Height
- 79.13" (2009.90 mm)
- Weight
- 830 lb (376480 g)
What's in the Box
The package includes all necessary components for deployment, with pre-installed modules to simplify setup.
Highlights
- 60 kVA double conversion online UPS with pure sine wave output
- Three-phase hardwired design for high-power applications
- Dual voltage input/output (120V/230V AC) for installation flexibility
- Advanced network management via SNMP, SSH, and Telnet
- Tower form factor with substantial 830 lb weight capacity
- Includes three SV20PM 20kVA power modules pre-installed
- RoHS compliant with environmentally friendly construction
- 1-year limited warranty from Tripp Lite by Eaton
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SV60KL |
| Brand Name | Tripp Lite series |
| Product Line | SmartOnline |
| Product Series | SV |
| Product Model | SV60KL |
| Product Name | SmartOnline SV60KL 60kVA Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | Hardwired |
| Phase | Three Phase |
| Power Description | |
| Load Capacity (VA) | 60 kVA |
| Input Voltage | 120 V AC,230 V AC |
| Output Voltage | 120 V AC,230 V AC |
| Waveform Type | Pure Sine Wave |
| Management | |
| Network Management | SNMP Manageable,SSH,Telnet |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 79.13" (2009.90 mm) |
| Width | 23.62" (599.95 mm) |
| Depth | 43.30" (1099.82 mm) |
| Weight (Approximate) | 830 lb (376480 g) |
| Miscellaneous | |
| Package Contents | SmartOnline SV60KL 60kVA Tower UPS Pre-installed network interface 3 X SV20PM 20kVA power modules Owner's manual DB9 cabling |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the power capacity of the SV60KL UPS?
The Tripp Lite by Eaton SmartOnline SV60KL provides 60 kVA of power capacity. This substantial rating supports high-demand equipment in commercial and industrial settings, making it suitable for protecting server racks, manufacturing controls, or telecommunications infrastructure during power disturbances.
Does this UPS provide pure sine wave output?
Yes, the SV60KL delivers pure sine wave output. This clean power waveform is essential for compatibility with modern active PFC power supplies found in servers, networking equipment, and sensitive electronics, reducing the risk of equipment malfunction or damage from irregular power.
What input and output voltages does the SV60KL support?
This UPS supports dual voltage configurations for both input and output: 120 V AC and 230 V AC. This flexibility allows deployment across different electrical infrastructures without requiring voltage conversion equipment, simplifying installation in varied environments.
How is the SV60KL managed and monitored?
Network management capabilities include SNMP, SSH, and Telnet interfaces. These protocols enable remote monitoring of power status, configuration changes, and initiation of graceful shutdown procedures, allowing integration into existing IT management systems for comprehensive infrastructure oversight.
What is the form factor and approximate weight of this UPS?
The SV60KL features a tower form factor with dimensions of 79.13" H × 23.62" W × 43.30" D and an approximate weight of 830 pounds. This substantial standalone design accommodates the internal components needed for 60 kVA capacity and requires adequate floor space and structural support during installation planning.
What comes included in the package with the SV60KL?
The package includes the SmartOnline SV60KL 60kVA Tower UPS unit with pre-installed network interface, three SV20PM 20kVA power modules, an owner's manual, and DB9 cabling. These components provide everything needed for deployment, with the power modules already installed to simplify setup.
What power capacity is listed for this UPS?
The listed power specification is 60 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC,230 V AC, which helps position the unit for the right load level and installation role.
