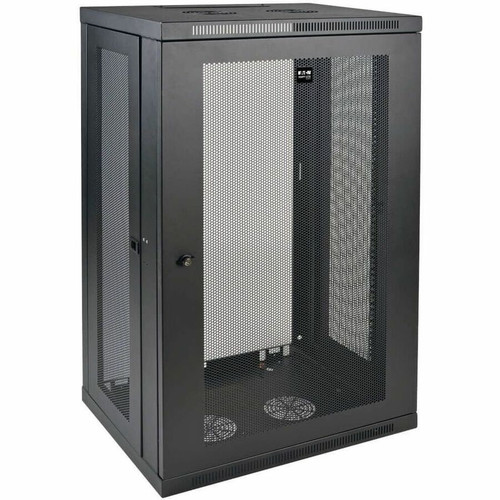

Tripp Lite series SmartRack 21U Wall-Mount Standard-Depth Rack Enclosure Cabinet - 21U Rack Height x 19" (482.60 mm) Rack Width x mm) (SRW21U)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- SmartRack 21U Wall-Mount Standard-Depth Rack Enclosure Cabinet
- 44 x M6 Screws
- 44 x M6 Cage Nuts
- 44 x M6 Cup Washers
- 44 x 12-24 Screws
- Removable Mounting Plate
- 3 x Mounting Plate Screws
- 2 x Keys
- Owner's Manual
Form Factor: Wall Mountable
Color Family: Black
Product Color: Black
Maximum Weight Capacity: 200 lb (90718.47 g)
Static/Stationary Weight Capacity: 200 lb (90718.47 g)
Height: 40.87" (1038.10 mm)
Width: 23.63" (600.20 mm)
Depth: 17.72" (450.09 mm)
Rack Height: 21U
Rack Width: 19" (482.60 mm)
Rack Depth: 16.50" (419.10 mm)
Weight (Approximate): 51 lb (23133.21 g)
Package Contents:
Assembly Required: No
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
- Maximum load capacity of 200 lb.
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 21U of 19 in. rack equipment up to 16.5 in. deep
- Mounts to wall or rolls on floor (with optional SRCASTER)
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SRW21U |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Line | SmartRack |
| Product Model | SRW21U |
| Product Name | SmartRack 21U Wall-Mount Standard-Depth Rack Enclosure Cabinet |
| Product Type | Rack Cabinet |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Black |
| Product Color | Black |
| Maximum Weight Capacity | 200 lb (90718.47 g) |
| Static/Stationary Weight Capacity | 200 lb (90718.47 g) |
| Height | 40.87" (1038.10 mm) |
| Width | 23.63" (600.20 mm) |
| Depth | 17.72" (450.09 mm) |
| Rack Height | 21U |
| Rack Width | 19" (482.60 mm) |
| Rack Depth | 16.50" (419.10 mm) |
| Weight (Approximate) | 51 lb (23133.21 g) |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
[custom-options]
| Product | Tripp Lite Horizontal Cable Manager - Cable Cover - Black - 1U Rack Height x 19" Panel Width |
| SKU | SRCABLEDUCT1U |
| Sale Price | $94.95 |
| Product | Tripp Lite UPSHDEARKIT Front Mount UPS Brackets - Steel - 29.48 kg |
| SKU | UPSHDEARKIT |
| Sale Price | $75.95 |
| Product | Tripp Lite SRSWITCH Magnetic Door Switch Kit - Door |
| SKU | SRSWITCH |
| Sale Price | $50.95 |
| Product | Tripp Lite SRCASTER Caster Kit - 550lb per Caster |
| SKU | SRCASTER |
| Sale Price | $131.95 |
| Product | Tripp Lite series SRFANWM Cooling Fan - 2 Pack - 2 x Fan(s) - 210 CFM (356.79m³/h) Maximum Airflow - NEMA 5-15P - 2 - Cabinet |
| SKU | SRFANWM |
| Sale Price | $143.95 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
