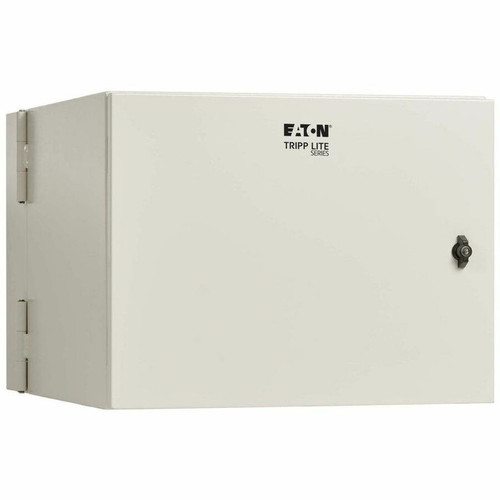

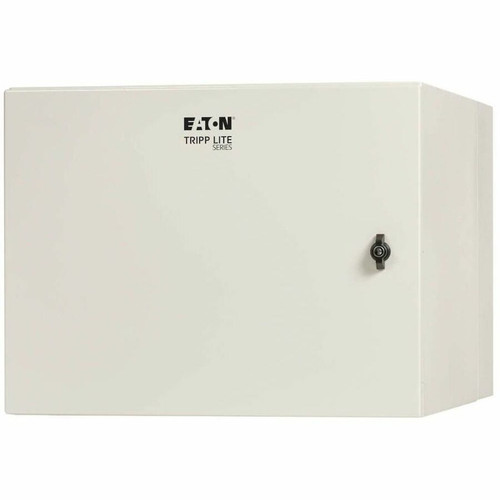

Tripp Lite by Eaton SRN4G9US Tripp Lite SmartRack Rack Mount Enclosure - 9U Wall-Mountable Enclosed Cabinet - Gray Metal/Steel - 200 lb Capacity
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This industrial-grade rack enclosure delivers robust physical protection with its all-metal construction and comprehensive environmental resistance ratings. The enclosure supports static weight loads up to 200.62 pounds, making it suitable for dense equipment configurations without compromising structural integrity.
The 9U rack height provides ample vertical space for standard rack-mount devices, while the 28-inch rack depth accommodates deeper equipment such as servers or power distribution units. External dimensions measure 18.83 inches in height, 24 inches in width, and 30.05 inches in depth, creating a compact footprint suitable for wall mounting in space-constrained locations.
This section brings together practical product details such as Rack Type, Application/Usage, Features, Plug/Connector Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SRN4G9US combines industrial durability with practical installation features for reliable equipment protection. The enclosure's environmental resistance extends equipment lifespan in challenging conditions, while the thoughtful design elements reduce installation time and improve accessibility.
Environmental Protection
NEMA 4 rating ensures resistance to water, rain, snow, and moisture ingress, protecting sensitive electronics from environmental damage in indoor/outdoor applications.
- Snow Resistant
- Moisture Resistant
- Rain Resistant
- Water Resistant
- Debris Resistant
Security & Access
Lockable door with tamper-resistant hardware prevents unauthorized access, while the heavy-duty steel construction provides damage resistance and anti-theft protection.
- Lockable Door
- Tamper Resistant
- Anti-theft
- Damage Resistant
Installation Efficiency
Adjustable mounting rails accommodate various equipment depths, and integrated cable management keeps wiring organized for improved airflow and maintenance access.
- Adjustable Mounting Rails
- Cable Management
- No Assembly Required
Deployment / Use Cases
The Tripp Lite SmartRack SRN4G9US is engineered for environments where equipment protection and space optimization are critical. Its wall-mountable form factor makes it ideal for locations where floor space is limited or where equipment needs to be positioned at specific heights for operational efficiency.
Common deployment scenarios include security control rooms housing DVR systems and network switches, telecommunications closets containing patch panels and PDUs, industrial settings requiring protected UPS installations, and retail environments where compact equipment housing is necessary. The enclosure's environmental ratings make it suitable for semi-protected outdoor applications or indoor locations with potential moisture exposure.
Security & Surveillance
House DVR systems, network switches, and power equipment in a single secured enclosure for complete surveillance system protection.
Network Infrastructure
Organize patch panels, switches, and PDUs in telecommunications rooms with proper cable management and physical security.
Physical Profile
Constructed from powder-coated steel with a gray finish, the SRN4G9US presents a professional appearance while providing corrosion resistance. The enclosure's compact external dimensions allow wall mounting in space-constrained areas, with the 30.05-inch depth providing sufficient clearance for equipment installation and cable routing. The design includes ventilation considerations for adequate airflow while maintaining environmental protection.
- Width
- 24" (609.60 mm)
- Depth
- 30.05" (763.27 mm)
- Height
- 18.83" (478.30 mm)
- Weight
- 200 lb (90718.47 g)
What's in the Box
The enclosure ships fully assembled with all necessary hardware for immediate installation.
Highlights
- 9U enclosed cabinet rack mount enclosure for DVR, switch, PDU, patch panel, and UPS equipment
- Wall-mountable form factor with NEMA 4 rating for environmental protection
- Heavy-duty steel construction with gray finish and 200 lb weight capacity
- Lockable door with tamper-resistant hardware for physical security
- Adjustable mounting rails and integrated cable management for easy installation
- Snow, moisture, rain, water, and debris resistant for challenging environments
- No assembly required - ships fully assembled with all necessary hardware
- 5-year limited warranty with RoHS and REACH environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SRN4G9US |
| Brand Name | Tripp Lite series |
| Product Line | SmartRack |
| Product Model | SRN4G9US |
| Product Name | SmartRack SRN4G9US Rack Mount Enclosure |
| Product Type | Rack Mount Enclosure |
| Technical Information | |
| Rack Type | Enclosed Cabinet |
| Application/Usage | DVR,Switch,PDU,Patch Panel,UPS |
| Features | Snow Resistant,Moisture Resistant,Lockable Door,Damage Resistant,Tamper Resistant,Anti-theft,Cable Management,Adjustable Mounting Rails,Debris Resistant,Heavy Duty,Rain Resistant,Water Resistant |
| Power Description | |
| Plug/Connector Type | NEMA 4 |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Gray |
| Product Color | Gray |
| Product Material | Metal,Steel |
| Maximum Weight Capacity | 200 lb (90718.47 g) |
| Static/Stationary Weight Capacity | 200.62 lb (91000 g) |
| Height | 18.83" (478.30 mm) |
| Width | 24" (609.60 mm) |
| Depth | 30.05" (763.27 mm) |
| Rack Height | 9U |
| Rack Depth | 28" (711.20 mm) |
| Weight (Approximate) | 106.79 lb (48440 g) |
| Miscellaneous | |
| Package Contents | SRN4G9US Industrial Enclosure 24 x 10-32 screws 24 x M6 washers 4 x LDPE sheet metal plugs 4 x M10 foam washers 2 x Keys Owner's manual |
| Assembly Required | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What types of equipment can the SRN4G9US enclosure accommodate?
The Tripp Lite SRN4G9US is designed to house standard 19-inch rack-mount equipment including DVR systems, network switches, power distribution units (PDUs), patch panels, and UPS systems. The 9U rack height provides vertical space for multiple devices, while the 28-inch rack depth accommodates deeper equipment. The enclosure's 200-pound weight capacity supports dense equipment configurations commonly found in network infrastructure and security applications.
What environmental protections does this rack enclosure provide?
This enclosure features a NEMA 4 rating, which ensures protection against water ingress, rain, snow, moisture, and airborne debris. The design includes specific resistance to snow, moisture, rain, and water exposure, making it suitable for environments where equipment needs protection from environmental elements. The heavy-duty steel construction also provides damage resistance and durability in challenging installation conditions.
Can this enclosure be wall mounted, and what are its dimensions?
Yes, the SRN4G9US is designed for wall mounting with a form factor specifically designated as wall mountable. External dimensions measure 18.83 inches in height, 24 inches in width, and 30.05 inches in depth (478.30 × 609.60 × 763.27 mm). The compact footprint makes it ideal for installations where floor space is limited. The enclosure weighs approximately 106.79 pounds and supports static weight loads up to 200.62 pounds when properly mounted.
What security features are included with this rack enclosure?
The enclosure includes a lockable door with tamper-resistant hardware to prevent unauthorized access. Additional security features include anti-theft protection and damage-resistant construction. The lockable door secures your equipment while maintaining accessibility for authorized personnel. Two keys are included with the enclosure for immediate use upon installation.
Does this enclosure require assembly, and what comes in the package?
No assembly is required - the SRN4G9US ships fully assembled and ready for installation. The package includes the complete industrial enclosure, 24 × 10-32 screws, 24 × M6 washers, 4 × LDPE sheet metal plugs, 4 × M10 foam washers, 2 keys, and an owner's manual. All necessary mounting hardware is provided for immediate wall installation without additional parts required.
What warranty and compliance certifications apply to this product?
The Tripp Lite SRN4G9US comes with a 5-year limited warranty from the manufacturer. The product is environmentally compliant with Restriction of Hazardous Substances (RoHS) and Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) standards. It is also designated as environmentally friendly and manufactured in China. These certifications ensure the product meets current regulatory requirements for electronic equipment.
