Tripp Lite by Eaton SRW12USNEMA Tripp Lite SmartRack Wall-Mount Rack Cabinet - 12U Height - 19" Width - 200 lb Capacity - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

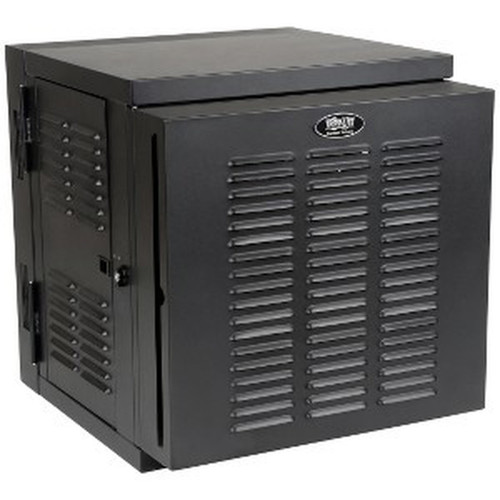

This rack cabinet features a NEMA 12 (IP54) rating, which protects against dirt, dust, drips, and splashes, making it suitable for environments where minor environmental exposure is a concern. The cabinet swings away from the wall on hinges, providing easy back-door access for cable management and equipment maintenance without requiring full dismounting.
The external dimensions are 25 inches high, 23.63 inches wide, and 21.60 inches deep, with an internal rack width of 19 inches to accommodate standard rack-mount devices. The removable and replaceable dust filter helps maintain internal air quality, reducing the need for frequent cleaning and extending the life of installed components.
Key Product Advantages
The SRW12USNEMA combines space-saving design with robust construction, offering several advantages for network deployments. Its wall-mount form factor frees up valuable floor space, while the swing-away hinge simplifies access for upgrades and troubleshooting.
Enhanced Security
The locking steel cabinet deters unauthorized access, protecting sensitive networking equipment from physical tampering or theft.
- Locking door
- Steel construction
- Key included
Environmental Protection
NEMA 12 (IP54) rating ensures resistance to dust, dirt, and light moisture, suitable for non-climate-controlled areas.
- IP54 compliant
- Dust filter
- Ventilation fans
Deployment / Use Cases
This rack cabinet is ideal for small to medium-sized network installations where space optimization is critical. Common use cases include wiring closets in office buildings, network racks in retail environments, or server enclosures in educational facilities.
The 12U capacity supports a typical mix of equipment such as a 1U or 2U server, a network switch, a patch panel, a UPS, and cable management accessories. Its wall-mount design makes it perfect for locations where floor-mounted racks are impractical, such as above workbenches, in tight corridors, or in rooms with limited square footage.
Compact Office Networks
Deploy in small offices to centralize networking gear without consuming desk or floor space, keeping equipment organized and secure.
Retail and Light Industrial
Use in retail stores or light industrial settings where environmental factors like dust or occasional splashes are present, thanks to the NEMA 12 rating.
Physical Profile
The cabinet measures 25 inches in height, 23.63 inches in width, and 21.60 inches in depth, with a weight of approximately 60 pounds. Its black steel finish provides a sleek, professional look that blends into most environments. The wall-mount design includes hardware for secure attachment, and the swing-away hinge allows the cabinet to pivot for rear access without complete removal, simplifying installation and maintenance.
- Width
- 23.63" (600.20 mm)
- Depth
- 21.60" (548.64 mm)
- Height
- 25" (635 mm)
- Weight
- 200 lb (90718.47 g)
What's in the Box
The package includes all necessary components for immediate deployment: the SmartRack SRW12USNEMA rack cabinet, mounting hardware, and accessories for securing equipment.
Highlights
- Wall-mountable 12U rack cabinet for space-constrained installations
- Supports 19" rack equipment up to 20.5 inches deep
- Maximum load capacity of 200 pounds for secure equipment housing
- NEMA 12 (IP54) rating protects against dust, dirt, drips, and splashes
- Swing-away hinge allows easy back-door access without dismounting
- Locking steel cabinet with built-in ventilation fans for security and cooling
- Includes removable/replaceable dust filter to maintain internal air quality
- No assembly required; ready to mount out of the box
- RoHS compliant and environmentally friendly
- Backed by a 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SRW12USNEMA |
| Brand Name | Tripp Lite series |
| Product Line | SmartRack |
| Product Model | SRW12USNEMA |
| Product Name | SmartRack SRW12USNEMA Rack Cabinet |
| Product Type | Rack Cabinet |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Black |
| Product Color | Black |
| Static/Stationary Weight Capacity | 200 lb (90718.47 g) |
| Height | 25" (635 mm) |
| Width | 23.63" (600.20 mm) |
| Depth | 21.60" (548.64 mm) |
| Rack Height | 12U |
| Rack Width | 19" (482.60 mm) |
| Weight (Approximate) | 60 lb (27215.54 g) |
| Miscellaneous | |
| Package Contents | SmartRack SRW12USNEMA Rack Cabinet 20 x M6 Cagenuts 20 x M6 Screws 20 x Washers 2 x Keys 1 x Removable/Replaceable Dust Filter Owner's Manual |
| Assembly Required | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the maximum load capacity of this rack cabinet?
The Tripp Lite SmartRack SRW12USNEMA has a static/stationary weight capacity of 200 pounds (90718.47 grams). This allows it to securely hold a combination of servers, switches, UPS units, and other rack-mount equipment without risk of structural failure or instability.
Does this cabinet require assembly?
No assembly is required for this rack cabinet. It comes fully constructed and ready for wall mounting, which saves time and reduces the complexity of deployment. Simply attach it to the wall using the included hardware and begin installing your equipment.
What environmental protection does the NEMA 12 rating provide?
The NEMA 12 (IP54) rating indicates that the cabinet is sealed against dirt, dust, drips, and splashes. This makes it suitable for environments where minor exposure to these elements is possible, such as in light industrial areas, workshops, or locations with occasional moisture, without requiring a fully sealed enclosure.
How does the swing-away hinge work for maintenance?
The cabinet is mounted on hinges that allow it to swing away from the wall, providing full access to the back of the installed equipment. This feature enables easier cable management, hardware upgrades, and troubleshooting without needing to completely remove the cabinet from the wall, streamlining maintenance tasks.
What is included in the package with this rack cabinet?
The package includes the SmartRack SRW12USNEMA rack cabinet, 20 M6 cagenuts, 20 M6 screws, 20 washers, 2 keys for the locking door, 1 removable/replaceable dust filter, and an owner's manual. All necessary mounting and securing hardware is provided for immediate installation.
What is the warranty coverage for this product?
This rack cabinet is backed by a 2-year limited warranty from Tripp Lite by Eaton. The warranty covers defects in materials and workmanship under normal use, providing assurance of quality and reliability for your network infrastructure investment.
