Tripp Lite by Eaton SRW12US33G SmartRack 12U Server-Depth Wall-Mount Rack Enclosure Cabinet - 250 lb Capacity - Black Powder Coat
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SmartRack enclosure features a 12U rack height with EIA-310-D compliant 19-inch mounting rails, supporting equipment depths up to 25.99 inches within the internal rack space. The external cabinet dimensions measure 25 inches high by 23.63 inches wide by 33.50 inches deep, providing adequate clearance for cable routing and ventilation while maintaining a compact wall footprint.

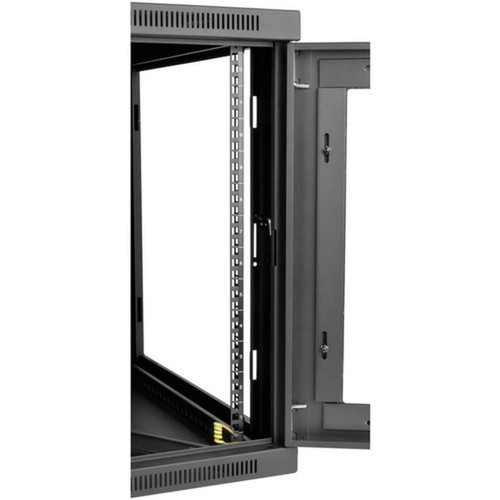

The steel construction with acrylic side panels ensures structural integrity while allowing visibility into the cabinet interior. Ventilation openings at the top, bottom, and sides promote passive airflow to prevent heat buildup, and the locking steel doors secure equipment against unauthorized access.
Key Product Advantages
The SRW12US33G combines secure equipment protection with exceptional accessibility through its innovative hinged mounting system. Unlike fixed wall racks, this enclosure swings completely away from the wall, providing unobstructed access to both front and rear panels of installed devices for easier installation, troubleshooting, and cable management.
High-Capacity Design
With a 250-pound static weight capacity, this cabinet reliably supports dense configurations of networking gear, servers, and power distribution units without structural compromise.
- Tested for 250 lb static loads
- Heavy-duty steel construction
- Reinforced mounting points
Flexible Deployment Options
While primarily designed for wall mounting, the cabinet can be converted to mobile use with optional SRCASTER wheel kits, allowing temporary relocation or repositioning within a facility.
- Wall bracket included
- Optional floor mobility
- Quick conversion capability
Deployment / Use Cases
This server-depth enclosure is ideal for consolidating network infrastructure in environments where floor space is limited or where equipment needs to be secured off the ground. The 12U capacity accommodates typical small to medium business network cores, including a combination of switches, patch panels, and compact servers.
Common deployment scenarios include telecommunications closets in office buildings, network distribution points in educational facilities, industrial control system enclosures in manufacturing environments, and secure equipment housing in healthcare settings. The locking doors provide physical security for sensitive network equipment, while the ventilation design ensures reliable operation in enclosed spaces.
Network Distribution Closets
Consolidate patch panels, switches, and fiber termination panels in a single secure enclosure with organized cable management and front/rear access.
- Patch panel organization
- Switch mounting
- Cable routing channels
Compact Server Installations
House 1U or 2U servers alongside necessary networking equipment in a secure, ventilated enclosure that maximizes vertical space utilization.
- Server depth compatible
- Adequate ventilation
- Secure locking mechanism
Physical Profile
The enclosure features a durable black powder coat finish over heavy-gauge steel construction, providing corrosion resistance and a professional appearance. The acrylic side panels offer visibility into the cabinet interior while maintaining security. With an approximate weight of 94.50 pounds when empty, the cabinet requires proper wall stud mounting or optional floor casting for stable installation.
- Width
- 23.63" (600.20 mm)
- Depth
- 33.50" (850.90 mm)
- Height
- 25" (635 mm)
- Weight
- 250 lb (113398.09 g)
What's in the Box
The enclosure ships with all necessary hardware for immediate installation and equipment mounting.
Highlights
- 12U server-depth wall-mount rack enclosure with 250 lb load capacity
- Hinged design swings away from wall for full front and rear equipment access
- Locking steel cabinet with ventilation at sides, top, and bottom
- Accommodates 19-inch rack equipment up to 32.5 inches deep
- Convertible to floor-mobile use with optional SRCASTER wheel kits
- Black powder coat finish over steel and acrylic construction
- Includes comprehensive mounting hardware package
- RoHS compliant with 5-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SRW12US33G |
| Brand Name | Tripp Lite series |
| Product Line | SmartRack |
| Product Model | SRW12US33G |
| Product Name | SRW12US33G SmartRack 12U Server-Depth Wall-Mount Rack Enclosure Cabinet |
| Product Type | Rack Cabinet |
| Technical Information | |
| Application/Usage | LAN Switch,Patch Panel,Server,PDU |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Black |
| Product Color | Black Powder Coat |
| Product Material | Steel,Acrylic |
| Maximum Weight Capacity | 250 lb (113398.09 g) |
| Static/Stationary Weight Capacity | 250 lb (113398.09 g) |
| Height | 25" (635 mm) |
| Width | 23.63" (600.20 mm) |
| Depth | 33.50" (850.90 mm) |
| Rack Height | 12U |
| Rack Width | 19" (482.60 mm) |
| Rack Depth | 25.99" (660.15 mm) |
| Weight (Approximate) | 94.50 lb (42864.48 g) |
| Miscellaneous | |
| Package Contents | SRW12US33G SmartRack 12U Server-Depth Wall-Mount Rack Enclosure Cabinet 36 x M6 Screws 36 x M6 Cage Nuts 36 x M6 Washers 36 x 12-24 Screws 2 x Keys Owner's Manual |
| Assembly Required | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the maximum equipment depth this rack enclosure can accommodate?
The SRW12US33G accommodates standard 19-inch rack-mount equipment up to 25.99 inches deep within the internal rack space. The external cabinet depth is 33.50 inches, providing additional clearance for cable management and proper airflow behind installed devices.
Can this wall-mount cabinet be used on the floor?
While primarily designed for wall mounting, the cabinet can be converted for floor use with the optional SRCASTER wheel kit. This allows the enclosure to be mobile within a facility, though the 250-pound weight capacity and structural design remain optimized for secure wall mounting as the primary installation method.
What types of equipment is this rack enclosure designed to hold?
This enclosure is designed for LAN switches, patch panels, servers, and PDUs—common network infrastructure components that require secure, organized mounting. The 12U capacity and server-depth design make it suitable for small to medium network cores where multiple devices need consolidation in a single protected enclosure.
Does the cabinet require assembly before use?
No assembly is required for the main cabinet structure. The enclosure ships pre-assembled with all mounting hardware included. Installation involves securing the wall bracket to studs, then mounting the cabinet to the bracket. Equipment mounting uses the provided M6 screws, cage nuts, washers, and 12-24 screws as appropriate for your devices.
What security features does this rack enclosure include?
The cabinet features locking steel doors with keyed access to prevent unauthorized physical access to installed equipment. Two keys are included with the enclosure. The solid steel construction and locking mechanism provide basic physical security for network infrastructure in shared or accessible spaces.
What is the warranty coverage for this Tripp Lite rack enclosure?
The SRW12US33G comes with a 5-year limited warranty from Tripp Lite by Eaton, covering defects in materials and workmanship under normal use. The warranty supports the product's industrial-grade construction and is backed by Eaton's global service network for commercial and institutional customers.
