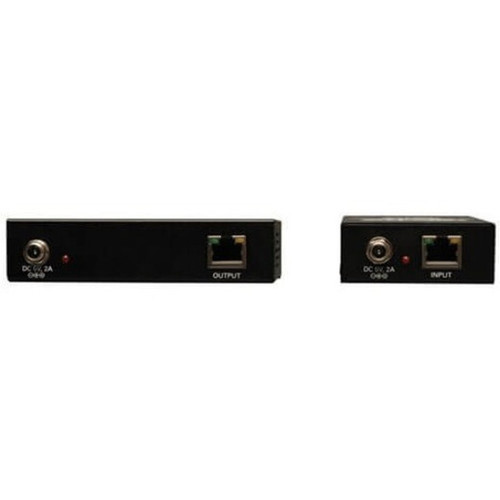

Tripp Lite series VGA over Cat5 Extender Kit ( Transmitter + Receiver ) - 1 Input Device - 2 Output Device - 1000 ft (304800 mm) Range (B130-101-2)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Local (Transmitter) Unit 1 x 4.5 x 2.5 (in.)
- Remote (Receiver) Unit 1 x 2.5 x 3.5 (in.)
- Mini-Screwdriver for EQ/Gain Adjustment
- 2 x Mounting Hardware Kits
- 2 x External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
- Owner's Manual
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 2
Maximum Operating Distance: 1000 ft (304800 mm)
Maximum Video Resolution: 1920 x 1440
Network (RJ-45): Yes
VGA In: Yes
VGA Out: Yes
Number of Network (RJ-45) Ports: 2
Number of VGA Inputs: 1
Number of VGA Outputs: 2
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Color Family: Black
Product Color: Black
Form Factor: Wall Mountable,Rack-mountable,Pole-mountable
Package Contents:
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 1 Year
- Extends a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x 768 (60Hz) video signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
- EDID copy feature ensures optimal display compatibility
- Can further expand the range and number of monitors by adding B132-110 repeaters
- For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B130-101-2 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Name | VGA over Cat5 Extender Kit ( Transmitter + Receiver ) |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 2 |
| Maximum Operating Distance | 1000 ft (304800 mm) |
| Video | |
| Maximum Video Resolution | 1920 x 1440 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| VGA In | Yes |
| VGA Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of VGA Inputs | 1 |
| Number of VGA Outputs | 2 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Wall Mountable,Rack-mountable,Pole-mountable |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
