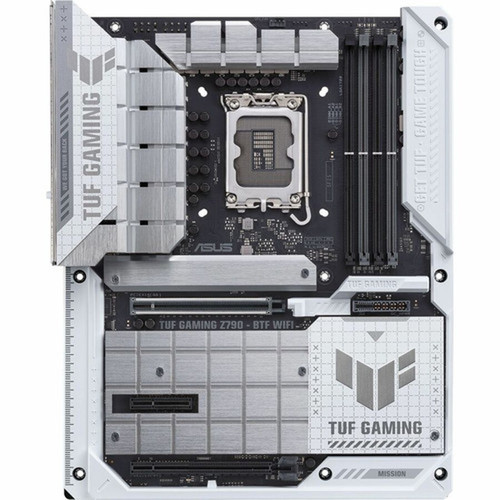

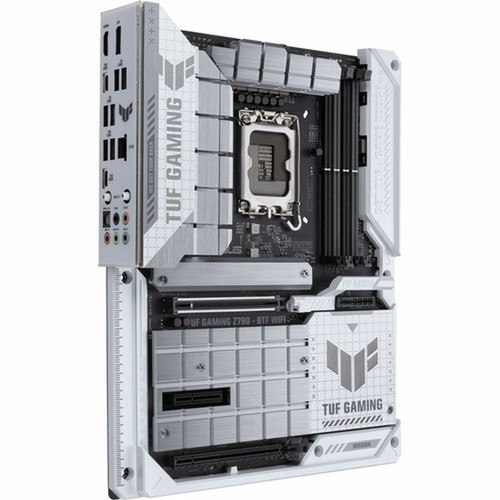

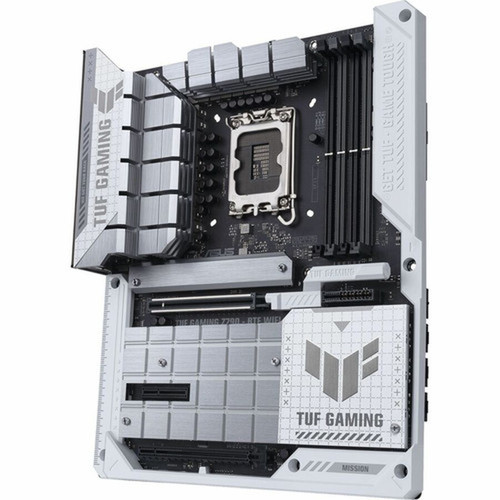

TUF GAMING Z790-BTF WIFI ATX Desktop Motherboard With Intel Chipset And LGA 1700 Support For Core Compatible CPUs TUF GAMING TUF GAMING Z790-BTF WIFI
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Z790-BTF WIFI Gaming Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x ASUS WiFi Q-Antenna
- 1 x TUF GAMING sticker
- 2 x M.2 rubber packages
- 1 x Screw package for M.2 SSD
- 1 x TUF certification card
- 1 x Quick start guide
Marketing Information:
TUF GAMING Z790-BTF WIFI
TUF GAMING Z790-BTF WIFI takes all the essential elements of the latest Intel®processors and combines them with game-ready features and proven durability. "BTF" means "Back To (the) Future" for a new era for all PC DIY gamers; the advanced BTF series not only hides all its connectors on the underside of the motherboard, but it also delivers up to 600 watts for BTF graphics cards through a graphics card high-power slot, for clean cable management and a minimalist build appearance.
EASY PC DIY
The TUF GAMING BTF lineup allows easy cable management and setup for builders of all levels. The ASUS BTF Alliance ecosystem confirms compatibility, while Armoury Crate displays hardware information and makes it easy to adjust Fan Xpert 4, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.
BTF DESIGN | Optimized Cable Management
The hidden-connector design can be ideal for a first-time builder, because it allows easier cable management and also enhances a build's appearance by presenting neat and clean internals.
Advanced BTF Design
With the combination of a BTF graphics card, motherboard, and chassis, you can enjoy a full hidden-connector experience. This Advanced BTF approach is achieved through graphics cards compatible with the new graphics card high-power slot to deliver up to 600 watts through this motherboard. With a set of compatible BTF components, builders can eliminate the need for visible cables for a clean and organized Advanced BTF look.
TUF PROTECTION | SafeSlot & SafeDIMM
SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Because PCIe 5.0 is two times faster than PCIe 4.0, ASUS enhanced SMT manufacturing processes for the faster SafeSlot?all to ensure users get the highest-possible data speeds. In addition, the ASUS SafeDIMM sheath is added to support and protect memory modules on select ASUS motherboards, empowering you to insert modules with speed, accuracy and confidence.
ESD Guards
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge - greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.
USB Connectors
Additional on-circuit ESD transient-voltage-suppression
TUF LANGuard
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

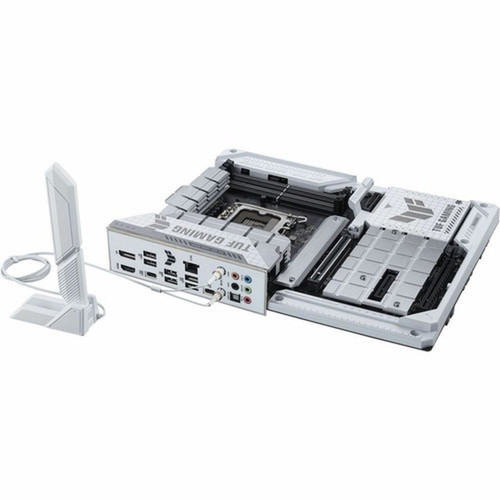

Stainless Steel Back I/O Panel
TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that's three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.
EASY CONFIGURATION | PCIe Q-Release
A physical lever unlocks the first PCIe slot's security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new graphics card or other compatible device.
AI-powered: Yes
Chipset Manufacturer: Intel
Chipset Model: Z790
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 14th Gen,13th Gen,12th Gen
Processor Supported: Core,Pentium Gold,Celeron
Number of Memory Slots: 4
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 192 GB
Memory Speed Supported: 7200 MHz,7000 MHz,6800 MHz,6600 MHz,6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz
Memory Technology: DDR5 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,1,5,10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11be
Total Number of Expansion Slots: 3.0
Total Number of PCI Express Slots: 3
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 2
PCI Express Standard: PCI Express 5.0,PCI Express 4.0
Total Number of USB Ports: 8
S/PDIF: Yes
VGA: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Thunderbolt: Yes
Number of Thunderbolt 4 Ports: 2
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Form Factor: ATX
Width: 12.01" (305 mm)
Depth: 9.61" (244 mm)
Package Contents:
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Taiwan Restriction of Hazardous Substances (Taiwan RoHS),China Restriction of Hazardous Substances (China RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 3 Year
- Compatible Core processor lets you perform all your computational tasks at a swift pace
- DDR5 SDRAM slot for convenient installation of memory
- Supported 0 RAID levels provide data reliability and fault tolerance
- IEEE 802.11be wireless standard support lets you connect to the internet and have instant access to social media, music, movies, and online games
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX gaming desktop motherboard
[custom-specifications]
| Specifications | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | TUF GAMING Z790-BTF WIFI |
| Manufacturer Website Address | http://www.asus.com |
| Brand Name | TUF |
| Product Model | Z790-BTF WIFI |
| Product Name | Z790-BTF WIFI Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Technical Information | |
| AI-powered | Yes |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Z790 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 14th Gen,13th Gen,12th Gen |
| Processor Supported | Core,Pentium Gold,Celeron |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 192 GB |
| Memory Speed Supported | 7200 MHz,7000 MHz,6800 MHz,6600 MHz,6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz |
| Memory Technology | DDR5 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,5,10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11be |
| I/O Expansions | |
| Total Number of Expansion Slots | 3.0 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| PCI Express Standard | PCI Express 5.0,PCI Express 4.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| S/PDIF | Yes |
| VGA | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 4 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12.01" (305 mm) |
| Depth | 9.61" (244 mm) |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Taiwan Restriction of Hazardous Substances (Taiwan RoHS),China Restriction of Hazardous Substances (China RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
