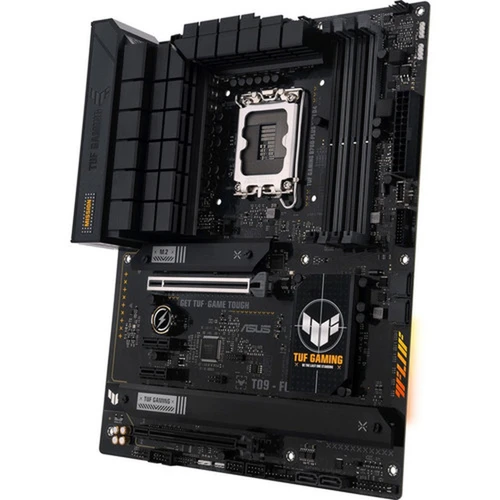

TUF TUF GAMING B760-PLUS WIFI Gaming Desktop Motherboard - Intel B760 Chipset - LGA-1700 Socket - ATX - DDR5128GB - WiFi 6E - Thunderbolt 4
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The B760-PLUS WIFI motherboard features a Socket LGA-1700 design, compatible with Intel's 12th and 13th Generation desktop CPUs. It incorporates PCIe 5.0 support on the primary x16 slot, delivering double the bandwidth of PCIe 4.0 for next-generation graphics cards and storage devices. Three M.2 slots and four SATA 6Gb/s ports provide flexible storage configurations, with RAID 0, 1, 5, and 10 support for data redundancy or performance striping.
Audio is handled by a 7.1-channel HD audio codec, while video output depends on the installed CPU's integrated graphics, with both HDMI and DisplayPort connectors available. The board includes a comprehensive I/O panel with multiple USB 3.2 ports, a Thunderbolt 4 connector, and S/PDIF optical audio output. Onboard headers add four USB 2.0 ports and additional connectivity options for chassis integration.
Relevant factors for this section include Chipset Manufacturer, Chipset Model, Total Processor Supported, Number of Memory Slots. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This motherboard stands out with its combination of modern connectivity and expansion headroom. The inclusion of both WiFi 6E and 2.5GbE Ethernet provides dual high-speed networking options, reducing bottlenecks for online gaming and large file transfers. Thunderbolt 4 support adds professional-grade I/O capabilities, enabling daisy-chained peripherals and 40Gbps data transfer speeds.
Enhanced Storage Flexibility
Three M.2 slots support NVMe SSDs for ultra-fast boot and load times, while four SATA ports accommodate traditional hard drives or SSDs for bulk storage. RAID configurations allow for performance optimization or data protection.
- 3 x M.2 interfaces for NVMe SSDs
- 4 x SATA 6Gb/s ports
- RAID 0, 1, 5, 10 support
Robust Expansion Capabilities
The ATX layout provides two PCIe 5.0 x16 slots and two PCIe 3.0 x1 slots, accommodating multiple graphics cards, capture cards, or other add-in boards. Enhanced power delivery and cooling ensure stable operation under load.
- 2 x PCIe 5.0 x16 slots
- 2 x PCIe 3.0 x1 slots
- ATX form factor for optimal component spacing
Deployment / Use Cases
The TUF GAMING B760-PLUS WIFI is ideally suited for mid-range gaming PCs where balanced performance and future-proof connectivity are priorities. Its support for both DDR5 memory and PCIe 5.0 ensures compatibility with upcoming components, while current-generation CPU support keeps build costs manageable.
Content creators and streamers will appreciate the Thunderbolt 4 port for high-speed external storage and capture devices, combined with ample USB connectivity for peripherals. The motherboard's RAID capabilities make it suitable for workstations requiring data redundancy or striped storage performance. Small office environments can leverage the integrated WiFi 6E for flexible networking without additional adapters.
Gaming System Foundation
Provides the essential platform for a gaming rig with PCIe 5.0 for next-gen GPUs, DDR5 for high frame rates, and dual networking for lag-free online play.
Creative Workstation Base
Thunderbolt 4 enables professional audio/video interfaces and fast external storage, while multiple M.2 slots allow for scratch disk and project file separation.
Physical Profile

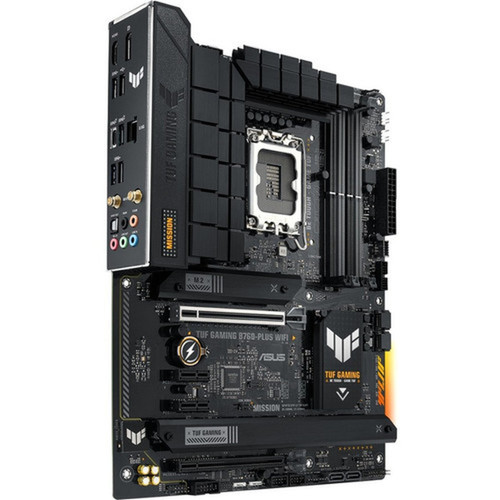

This ATX motherboard measures 12 inches by 9.6 inches (304.8mm x 243.84mm), fitting standard ATX cases with proper standoff alignment. The layout positions the CPU socket centrally with clear access to memory slots and primary PCIe x16 slot. Rear I/O is comprehensive, including antenna connectors for the included Wi-Fi moving antenna. The board's design facilitates cable routing with edge-positioned SATA and USB headers.
- Width
- 12" (304.80 mm)
- Depth
- 9.60" (243.84 mm)
What's in the Box
The package includes all essential components for motherboard installation and basic functionality.
Highlights
- Intel B760 chipset with LGA-1700 socket for 12th/13th Gen CPUs
- Supports up to 128GB DDR5 memory across four slots
- WiFi 6E (802.11ax) and Bluetooth 5.2 for wireless connectivity
- 2.5GbE and Gigabit Ethernet ports for wired networking
- Thunderbolt 4 port for 40Gbps peripheral connectivity
- PCIe 5.0 support on primary x16 slot for next-gen components
- Three M.2 slots and four SATA ports for storage expansion
- ATX form factor with enhanced cooling and expansion capabilities
- 7.1-channel HD audio with S/PDIF output
- RAID 0, 1, 5, 10 support for storage performance or redundancy
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | TUF GAMING B760-PLUS WIFI |
| Brand Name | TUF |
| Product Model | GAMING B760-PLUS WIFI |
| Product Name | GAMING B760-PLUS WIFI Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 13th Gen,12th Gen |
| Processor Supported | Core,Pentium Gold,Celeron |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM,DIMM |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 10,1,0,5 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Total Number of PCI Express Slots | 4 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| PCI Express Standard | PCI Express 5.0,PCI Express 3.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 1 Type-A Ports | 3 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| S/PDIF | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 3 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
| Miscellaneous | |
| Package Contents | GAMING B760-PLUS WIFI Gaming Desktop Motherboard 2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antenna 1 x TUF Gaming sticker 2 x M.2 Rubber Packages 1 x Screw package for M.2 SSD 1 x TUF Certification card 1 x User guide |
FAQ
What processors are compatible with this motherboard?
The TUF GAMING B760-PLUS WIFI supports Intel 12th and 13th Generation desktop processors using the LGA-1700 socket. This includes Core i9, i7, i5, and i3 series, as well as Pentium Gold and Celeron CPUs. The motherboard uses the Intel B760 chipset, which provides optimized support for these CPU families without overclocking capabilities.
What type of memory does this motherboard support?
This motherboard supports DDR5 SDRAM across four UDIMM/DIMM slots, with a maximum capacity of 128GB. DDR5 offers higher bandwidth and improved power efficiency compared to DDR4. The memory controller is integrated into the CPU, so actual supported speeds depend on the installed processor's specifications.
Does this motherboard have built-in WiFi?
Yes, the B760-PLUS WIFI includes integrated WiFi 6E (802.11ax) wireless networking, supporting the 2.4GHz, 5GHz, and 6GHz bands for reduced interference and higher throughput. It also features Bluetooth 5.2 for connecting peripherals like headphones, keyboards, and controllers. The package includes a moving antenna for optimal signal reception.
What expansion slots are available?
The motherboard provides four PCIe expansion slots: two PCIe 5.0 x16 slots (with the primary slot offering full bandwidth) and two PCIe 3.0 x1 slots. This configuration supports multiple graphics cards in appropriate configurations, plus additional cards like capture devices, sound cards, or network adapters. The PCIe 5.0 slots offer double the bandwidth of PCIe 4.0 for future components.
How many storage drives can I connect?
You can connect up to seven storage devices directly: three M.2 NVMe SSDs and four SATA 6Gb/s drives (HDDs or SSDs). The M.2 slots support PCIe-based NVMe SSDs for maximum speed, while the SATA ports accommodate traditional storage. The motherboard also supports RAID 0, 1, 5, and 10 configurations across SATA ports for performance or redundancy.
What are the key connectivity features?
Rear I/O includes six USB ports (three USB 3.2 Gen1 Type-A, one USB 3.2 Gen2 Type-A), HDMI and DisplayPort outputs (CPU-dependent), a 2.5GbE RJ-45 port, a Gigabit Ethernet port, a Thunderbolt 4 port, and S/PDIF optical audio. Onboard headers add seven more USB ports (including four USB 2.0). The Thunderbolt 4 port supports 40Gbps data transfer, dual 4K display output, and up to 100W power delivery.
