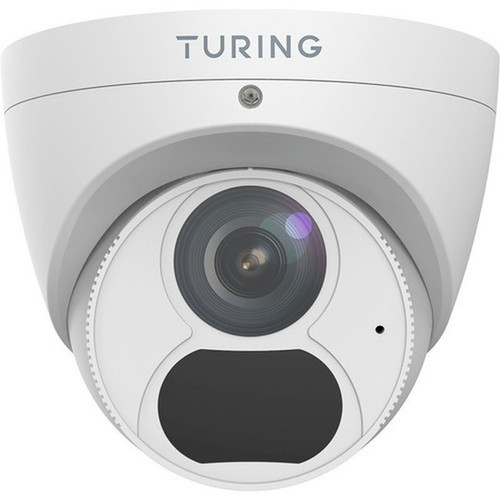

Turing Video TP-MED4M4 Smart 4MP HD TwilightVision IR Turret Network Camera - 2688 x 1520 Resolution - 98. 43 ft IR Night Vision - IP67 - Wired
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera features a fixed 4mm lens with an f/1.6 maximum aperture, providing a wide field of view covering 83.7° horizontally, 44.9° vertically, and 89.2° diagonally. The CMOS image sensor delivers color video during daylight hours and automatically switches to infrared-enhanced monochrome imaging when lighting conditions deteriorate. Exposure control ranges from 1/100,000 second to 1 second, allowing for optimal image capture in varying light scenarios.
Video processing includes support for Ultra 265, H.265, H.264, and MJPEG formats, giving system integrators flexibility in balancing quality and bandwidth requirements. The camera incorporates 2D and 3D digital noise reduction along with wide dynamic range and highlight compensation to maintain image clarity in high-contrast situations. Remote management capabilities allow for centralized configuration and monitoring through standard network video management systems.
Key Product Advantages
The TP-MED4M4 delivers several distinct advantages for surveillance deployments where reliability and image quality are paramount. Its combination of high-resolution imaging, extended infrared illumination, and robust environmental protection creates a versatile camera suitable for retail, commercial, and industrial applications.
Enhanced Low-Light Performance
Infrared LEDs provide illumination up to 98.43 feet, ensuring usable video footage even in complete darkness without visible light pollution that could alert subjects to surveillance presence.
- Automatic day/night switching
- Infrared illumination
- 98.43 ft (30 m) range
Comprehensive Environmental Protection
IP67 rating protects against dust ingress and temporary immersion in water, while the operating temperature range of -22°F to 140°F (-30°C to 60°C) ensures reliable performance in extreme weather conditions.
- IP67 certified
- Wide temperature tolerance
- 95% humidity maximum
Flexible Installation Options
Multiple mounting types including junction box, pole, wall, tilted, and pendant mounts provide installation flexibility for various architectural requirements and viewing angles.
- Five mounting types
- Turret form factor
- 3.70" height, 4.35" diameter
Deployment / Use Cases
This turret network camera is particularly well-suited for perimeter security applications where discreet monitoring is required. The compact turret housing blends with architectural elements while providing 360° rotation capability for optimal positioning. The 4-megapixel resolution delivers sufficient detail for license plate recognition at appropriate distances and facial identification in controlled environments.
Commercial retail environments benefit from the camera's wide dynamic range and highlight compensation features, which maintain visibility in storefronts with bright exterior lighting and darker interior spaces. The motion detection and tampering alarm functions provide proactive security alerts, while privacy masking allows for compliance with privacy regulations in sensitive areas. For industrial settings, the robust construction and environmental ratings ensure continuous operation in manufacturing facilities, warehouses, and loading docks where dust, moisture, and temperature variations are common.
Physical Profile
The turret design measures 3.70 inches (94.10 mm) in height with a diameter of 4.35 inches (110.50 mm), presenting a low-profile appearance that minimizes visual intrusion. Weighing approximately 14.82 ounces (420 grams), the camera maintains a substantial feel without excessive bulk. The housing construction supports multiple orientation options through its versatile mounting system, allowing installers to achieve optimal viewing angles while maintaining a clean aesthetic. The compact dimensions facilitate installation in space-constrained locations while the robust build quality ensures long-term durability in demanding surveillance environments.
- Height
- 3.70" (94.10 mm)
- Weight
- 14.82 oz (420 g)
- Length
- 4 mm (0.16")
Highlights
- 4-megapixel resolution delivers 2688 x 1520 video for detailed surveillance footage
- Infrared night vision extends to 98.43 feet (30 meters) for around-the-clock monitoring
- IP67 rating provides dust and water resistance for reliable outdoor operation
- Wide 89.2° diagonal field of view covers substantial area with single camera
- Supports Ultra 265 and H.265 compression for efficient bandwidth utilization
- Multiple mounting options including junction box, pole, wall, and pendant mounts
- Operating temperature range from -22°F to 140°F (-30°C to 60°C)
- Built-in microphone enables audio monitoring alongside video surveillance
- Motion detection and tampering alarm provide proactive security alerts
- 12V DC power input with wired Ethernet connectivity for stable operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Turing Video |
| Manufacturer Part Number | TP-MED4M4 |
| Brand Name | Turing Video |
| Product Line | Smart |
| Product Model | TP-MED4M4 |
| Product Name | 4MP HD TwilightVision IR Turret Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | Angle of view (H): 83.7° - Angle of View (V): 44.9° - Angle of View (O): 89.2° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | Ultra 265,H.265,H.264,MJPEG,H.264 BP,H.264 (MP),H.264 HP |
| Maximum Video Resolution | 2688 x 1520 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm (0.16") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Mount Type | Junction Box Mount,Pole Mount,Wall Mount,Tilted Mount,Pendant Mount |
| Form Factor | Turret |
| Height | 3.70" (94.10 mm) |
| Diameter | 4.35" (110.50 mm) |
| Weight (Approximate) | 14.82 oz (420 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | SD Card Local Storage,Built-in Microphone,Wide Dynamic Range,Surge Protection,Ingress Protection,Automatic White Balance,2D Digital Noise Reduction (2DNR),3D Digital Noise Reduction,Highlight Compensation (HLC),Day/Night,Privacy Masking,Motion Detection,Tampering Alarm |
| Ingress Protection Rating | IP67 |
| Country of Origin | China |
User Manual
FAQ
What is the maximum resolution of this network camera?
The Turing Video TP-MED4M4 captures video at up to 4-megapixel resolution, specifically 2688 x 1520 pixels. This resolution provides significantly more detail than standard 1080p cameras, allowing for clearer identification of subjects and objects in surveillance footage. The camera maintains this resolution at 30 frames per second for smooth video playback.
How far does the night vision reach on this camera?
The infrared night vision effectively illuminates subjects up to 98.43 feet (30 meters) in complete darkness. This extended range ensures usable video footage in low-light conditions without requiring additional external lighting. The camera automatically switches between color daytime imaging and infrared-enhanced monochrome night vision based on ambient light levels.
Is this camera suitable for outdoor installation?
Yes, this camera is designed for both indoor and outdoor use with an IP67 ingress protection rating. This certification means the housing is completely dust-tight and can withstand temporary immersion in water up to 1 meter deep for 30 minutes. Combined with its operating temperature range of -22°F to 140°F (-30°C to 60°C), it can handle most environmental conditions encountered in outdoor surveillance applications.
What mounting options are available for this turret camera?
The TP-MED4M4 supports five different mounting types: junction box mount, pole mount, wall mount, tilted mount, and pendant mount. This flexibility allows installers to adapt the camera to various architectural requirements and achieve optimal viewing angles. The turret form factor itself provides 360° rotation capability for precise directional adjustment during installation.
What video compression formats does this camera support?
This camera supports multiple video compression formats including Ultra 265, H.265, H.264, and MJPEG. The inclusion of Ultra 265 and H.265 provides efficient bandwidth utilization while maintaining high video quality, which is particularly valuable in multi-camera installations where network bandwidth may be constrained. System administrators can select the format that best balances their quality requirements and bandwidth limitations.
Does this camera include audio recording capability?
Yes, the TP-MED4M4 features a built-in microphone that enables audio monitoring alongside video surveillance. This allows for comprehensive security monitoring that includes both visual and auditory information. The camera also supports privacy masking features that can be configured to comply with local regulations regarding audio recording in surveillance applications.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
