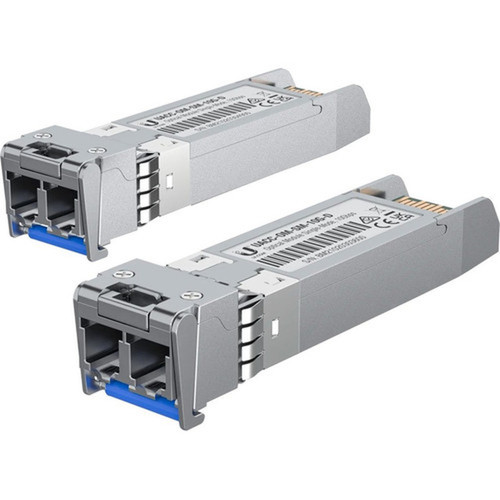

Ubiquiti UACC-OM-SM-10G-D-20 SFP+ 10G Single-Mode Optical Module - 2x LC/UPC - 1310nm - 10GbE - 10km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Ubiquiti optical transceiver operates on 10GBase-X network technology, which is the IEEE standard for 10 Gigabit Ethernet over fiber optic cabling. The module's electrical interface complies with SFP+ MSA specifications, ensuring hot-pluggable functionality and compatibility with SFP+ slots in switches, routers, and network interface cards that support 10GbE optical connections.
The 1310 nm wavelength is optimized for single-mode fiber, which typically uses a 9/125 micron core/cladding diameter. This wavelength provides an effective balance of attenuation and dispersion characteristics for metropolitan and long-haul applications. The LC/UPC connector type offers precise alignment and low insertion loss, critical for maintaining signal integrity at 10 Gbit/s speeds over the supported 10 km distance.
Key Product Advantages
This optical module combines high performance with deployment flexibility for modern fiber optic networks. Its design focuses on delivering reliable 10 Gigabit Ethernet connectivity with the reach and signal quality needed for backbone and aggregation links.
High-Speed Connectivity
Supports full 10 Gbit/s line rate with 10GBase-X technology, enabling efficient data transfer for bandwidth-intensive applications like video streaming, large file transfers, and virtualized environments.
- 10 Gigabit Ethernet compliance
- 10GBase-X network standard
- Low latency for real-time traffic
Extended Reach Capability
The 10 km maximum distance supported by single-mode fiber at 1310 nm wavelength allows connectivity between geographically separated network nodes without intermediate equipment.
- 10 km reach for metro applications
- Single-mode fiber efficiency
- Minimal signal loss over distance
Standardized Interface
LC/UPC connectors provide a widely adopted interface that ensures compatibility with existing fiber infrastructure and patch panels, simplifying installation and maintenance.
- Industry-standard LC/UPC connectors
- Duplex configuration support
- Easy integration with existing cabling
Deployment / Use Cases
This Ubiquiti SFP+ module is designed for various networking scenarios where high-speed fiber connectivity is required. Its 10 Gbit/s capability and 10 km reach make it particularly valuable for extending network segments beyond copper limitations while maintaining performance standards.
In data center environments, these modules can connect top-of-rack switches to aggregation switches or core routers over single-mode fiber backbones. For enterprise networks, they enable high-speed links between buildings on a campus or connect remote offices to central infrastructure. Service providers may deploy them in access networks or for point-to-point connections where 10 Gigabit Ethernet service delivery is required.
Data Center Interconnect
Connect server racks to network cores with 10 Gbit/s fiber links that support virtualization, storage networking, and high-performance computing workloads.
Enterprise Backbone
Establish reliable 10 km fiber links between buildings or floors for unified network infrastructure with sufficient bandwidth for voice, video, and data convergence.
Highlights
- SFP+ form factor optical transceiver module for 10 Gigabit Ethernet networks
- Two LC/UPC connectors support duplex fiber optic connections
- 1310 nm wavelength optimized for single-mode fiber transmission
- Maximum data transfer rate of 10 Gbit/s using 10GBase-X technology
- Supports distances up to 10 kilometers (6.21 miles)
- Hot-pluggable design for easy installation and replacement
- Ideal for data networking and optical network applications
- Packaged in quantities of 20 for multi-link deployments
Specifications
| Specifications | |
|---|---|
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | UACC-OM-SM-10G-D-20 |
| Brand Name | Ubiquiti |
| Product Name | 10G Single-Mode Optical Module |
| Product Type | SFP+ |
| Packaged Quantity | 20 Pack |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Connector Type | LC/UPC |
| Interfaces/Ports Details | 2 x LC/UPC 10GBase-X Duplex Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Optic Cable Wavelength | 1310 nm |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-X |
| Maximum Distance Supported | 10 km (6.21 Mile) |
| Maximum Data Transfer Rate | 10 Gbit/s |
User Manual
FAQ
What type of optical transceiver is the Ubiquiti UACC-OM-SM-10G-D-20?
This is a SFP+ (Small Form-factor Pluggable Plus) optical transceiver module designed for 10 Gigabit Ethernet networks. It uses the 10GBase-X standard for fiber optic communication and features two LC/UPC connectors for duplex connections over single-mode fiber.
What is the maximum distance this optical module supports?
The Ubiquiti UACC-OM-SM-10G-D-20 supports transmission distances up to 10 kilometers (approximately 6.21 miles) over single-mode fiber optic cable. This reach makes it suitable for connecting network equipment across buildings, campuses, or metropolitan areas without signal regeneration.
What wavelength does this SFP+ module operate at?
This optical transceiver operates at a 1310 nanometer wavelength, which is commonly used with single-mode fiber for 10 Gigabit Ethernet applications. The 1310 nm wavelength provides good performance characteristics for distances up to 10 km with minimal attenuation and dispersion effects.
What type of fiber optic cable is compatible with this module?
This module is designed for use with single-mode fiber optic cable, which typically has a 9/125 micron core/cladding structure. Single-mode fiber supports longer distance transmission with less signal loss compared to multimode fiber, making it ideal for the 10 km reach this module provides.
What network speed does this optical transceiver support?
The Ubiquiti optical module supports a maximum data transfer rate of 10 gigabits per second (10 Gbit/s) using 10 Gigabit Ethernet technology. This provides sufficient bandwidth for high-speed data networking applications including backbone connections, server links, and aggregated network traffic.
How many ports does this SFP+ module have and what connector type does it use?
This optical transceiver has two ports configured for duplex operation, both using LC/UPC connectors. The LC (Lucent Connector) type with UPC (Ultra Physical Contact) polish provides low insertion loss and precise alignment for reliable fiber optic connections at 10 Gbit/s speeds.
