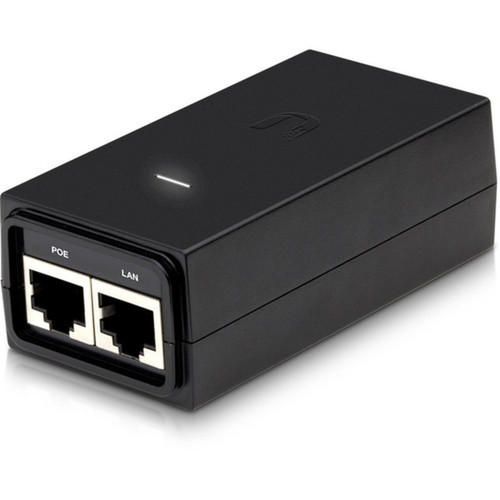

Ubiquiti POE-24-12W-5P PoE Injector - 5-Pack - 12W - 24V DC - 500mA - Universal 120/230V AC Input - Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PoE injector set operates on the 802.3af Power over Ethernet standard, delivering data and power through a single Ethernet cable to simplify network deployments. The electrical design includes comprehensive protection against electrostatic discharge, voltage clamping, and power surges to safeguard both the injector and connected devices from transient electrical events.
With a maximum output power of 12 watts, each injector provides sufficient power for Ubiquiti's airGateway access points while maintaining efficiency. The input current ranges from 200mA to 300mA depending on line voltage, and the 500mA output current ensures stable power delivery under typical operating conditions.
Relevant factors for this section include Protection Type, Input Voltage, Maximum Output Voltage, Minimum Input Current. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The five-pack configuration provides immediate scalability for network expansions or multi-device deployments, eliminating the need for separate purchases. Each injector's compact, wall-mountable design reduces clutter and supports clean installations in commercial and enterprise environments.
Universal Voltage Support
Accepts both 120V and 230V AC input without requiring voltage switches or external adapters, ensuring compatibility across different regional electrical standards.
- 120V AC Input
- 230V AC Input
- No Voltage Switching Required
Comprehensive Electrical Protection
Built-in ESD, clamping, and surge protection mechanisms defend against electrical transients that could damage connected networking equipment.
- ESD Protection
- Clamping Protection
- Surge Protection
Ubiquiti Ecosystem Compatibility
Specifically tested and validated for use with Ubiquiti airGateway wireless access points, ensuring reliable power delivery and performance within Ubiquiti network deployments.
- airGateway Compatible
- Validated Performance
- Ecosystem Integration
Deployment / Use Cases
These PoE injectors are ideal for deploying Ubiquiti airGateway access points in small to medium business environments, retail stores, or educational facilities where ceiling-mounted wireless access points require both data connectivity and power. The five-pack allows IT administrators to power multiple access points from a single purchase, streamlining procurement and deployment.
The wall-mountable design makes them suitable for installations where rack space is limited or where injectors need to be mounted near network switches or in electrical enclosures. Their compact size and light weight minimize installation footprint while providing reliable PoE power to support wireless network coverage expansion.
Small Business Wireless Networks
Power Ubiquiti airGateway access points in office environments where ceiling-mounted wireless coverage is needed without running separate power cables to each access point location.
Retail & Hospitality Deployments
Support wireless networks in stores, hotels, or restaurants where multiple access points require PoE power and clean, discreet installation is preferred.
Physical Profile
Measuring just 1.73 inches wide, 2.30 inches deep, and 1.14 inches high, each PoE injector occupies minimal space while providing full PoE functionality. The 92-gram weight ensures easy mounting without requiring heavy-duty hardware, and the wall-mountable form factor includes appropriate mounting points for secure installation. The compact dimensions make these injectors suitable for installations in tight spaces such as above ceiling tiles, inside network cabinets, or alongside other networking equipment where space optimization is critical.
- Width
- 1.73" (43.94 mm)
- Depth
- 2.30" (58.42 mm)
- Height
- 1.14" (28.96 mm)
- Weight
- 92 g
Highlights
- Five-pack of PoE injectors for multi-device deployments
- 12W maximum output power at 24V DC, 500mA
- Universal 120V/230V AC input voltage compatibility
- Wall-mountable compact design for space-efficient installation
- ESD, clamping, and surge protection for electrical safety
- Specifically compatible with Ubiquiti airGateway access points
- 802.3af Power over Ethernet standard compliance
- Compact dimensions: 1.73" W × 2.30" D × 1.14" H
- Lightweight 92-gram construction for easy mounting
Specifications
| Specifications | |
|---|---|
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | POE-24-12W-5P |
| Brand Name | Ubiquiti |
| Product Model | POE-15-12W |
| Product Name | POE-15-12W PoE Injector |
| Packaged Quantity | 5 Pack |
| Product Type | PoE Injector |
| Technical Information | |
| Protection Type | ESD Protection,Clamping Protection,Surge Protection |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Output Voltage | 24 V DC |
| Minimum Input Current | 200 mA |
| Maximum Input Current | 300 mA |
| Maximum Output Current | 500 mA |
| Maximum Output Power | 12 W |
| Interfaces/Ports | |
| Input Ports | Ethernet |
| Output Ports | PoE |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Height | 1.14" (28.96 mm) |
| Width | 1.73" (43.94 mm) |
| Depth | 2.30" (58.42 mm) |
| Weight (Approximate) | 92 g |
| Miscellaneous | |
| Compatibility | Ubiquiti airGateway Wireless Access Points |
FAQ
What devices are compatible with these PoE injectors?
These PoE injectors are specifically validated for use with Ubiquiti airGateway wireless access points. They deliver 24V DC power at 500mA, which matches the power requirements of airGateway devices. While they may work with other 24V PoE devices, Ubiquiti recommends using them primarily with their compatible access points for guaranteed performance and reliability.
What input voltages does this PoE injector support?
The injector supports both 120V AC and 230V AC input voltages without requiring any manual switching or configuration. This universal voltage compatibility makes it suitable for use in North America (120V systems) and many international regions (230V systems), providing flexibility for global deployments and reducing the need for region-specific power adapters.
How much power does each injector deliver?
Each injector delivers a maximum of 12 watts of power at 24 volts DC with 500 milliamps of current. This power output aligns with the 802.3af PoE standard and provides sufficient power for Ubiquiti airGateway access points and similar low-to-moderate power PoE devices. The 12W rating ensures reliable operation while maintaining power efficiency.
Can these injectors be wall-mounted?
Yes, each PoE injector features a wall-mountable form factor with appropriate mounting points for secure installation. The compact dimensions of 1.73 inches wide, 2.30 inches deep, and 1.14 inches high, combined with a lightweight 92-gram construction, make them easy to mount in various locations such as network closets, above ceilings, or alongside other networking equipment.
What protection features are included?
These PoE injectors include three key protection mechanisms: ESD (electrostatic discharge) protection guards against static electricity, clamping protection regulates voltage spikes, and surge protection defends against power surges. These features help protect both the injector and connected networking equipment from electrical transients that could cause damage or operational issues.
Why is this sold as a five-pack?
The five-pack configuration provides immediate scalability for network deployments requiring multiple PoE injectors. This packaging is ideal for IT administrators deploying several Ubiquiti airGateway access points simultaneously, as it eliminates the need to purchase individual injectors separately. The bundled approach simplifies procurement, reduces per-unit costs, and ensures consistency across multi-device installations.
