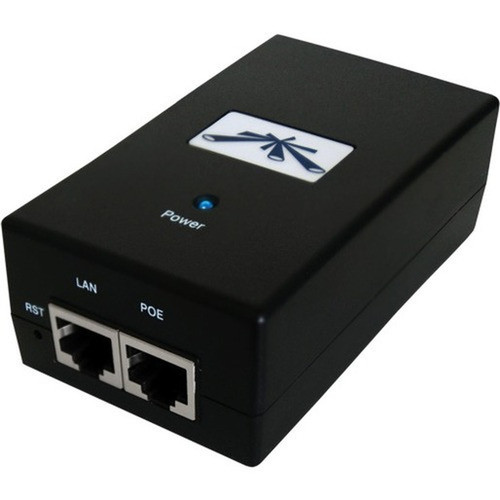

Ubiquiti POE-24-24W 24W PoE Injector - 120/230V AC Input - 24V DC 1A Output - Surge Protection - Compact Design
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PoE injector operates with a maximum input current of 600 mA and delivers up to 24W of output power. The 24V DC output is standardized for compatibility with a range of Ubiquiti and third-party devices that support 24V passive PoE. The unit's design incorporates multiple protection mechanisms to handle peak pulse currents and maintain stable power delivery under varying load conditions.
Electrical performance is backed by certifications including IEC 60950-1, UL60950-1, EN55022, EN55024, and FCC Class B, covering safety, electromagnetic compatibility, and regulatory compliance. These certifications validate the injector's suitability for professional installations where reliability and adherence to standards are critical.
Relevant factors for this section include Protection Type, Input Voltage, Maximum Output Voltage, Maximum Input Current. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The POE-24-24W simplifies network power management by centralizing power delivery through Ethernet cabling. Its dual-voltage input flexibility allows deployment in North American and international power grids without requiring different models. The integrated surge protection enhances system durability, particularly in environments prone to electrical disturbances.
Installation Flexibility
The compact form factor and lightweight design enable placement in tight spaces, on walls, or within network cabinets. Standard Ethernet ports ensure compatibility with existing cabling infrastructure.
- Compact dimensions: 3.47" W x 2.24" D x 1.30" H
- Lightweight at 134.9 g for easy mounting
- Standard RJ45 connectors for plug-and-play setup
Reliable Power Delivery
Consistent 24V output maintains stable operation for PoE devices, supporting continuous network uptime. The protection circuitry minimizes downtime caused by power anomalies.
- 24W sustained power output
- Protection against surges and transients
- Designed for 24/7 operation
Deployment / Use Cases
This injector is ideal for powering wireless access points, IP cameras, VoIP phones, and other network devices that require 24V passive PoE. It is particularly useful in retrofit installations where adding AC outlets is impractical or costly. The unit's compact size makes it suitable for discreet placement in ceilings, walls, or enclosures.
Common deployment scenarios include extending network coverage in offices, retail spaces, warehouses, and educational facilities. By leveraging existing Ethernet cabling for both data and power, the injector reduces installation complexity and material costs. It serves as a cost-effective alternative to PoE switches in small-scale or distributed network segments.
Wireless Network Expansion
Power remote access points to eliminate dead zones and extend Wi-Fi coverage without requiring local power sources.
- Ideal for ceiling-mounted APs
- Supports mesh network nodes
- Enables flexible AP placement
Surveillance & Security
Deliver power to IP cameras installed in locations where AC power is unavailable or unsafe to install.
- Powers outdoor or indoor cameras
- Reduces wiring complexity
- Centralizes power management
Physical Profile
The injector measures 3.47 inches wide, 2.24 inches deep, and 1.30 inches high, with a weight of approximately 134.9 grams. This compact footprint allows for flexible mounting options, including adhesive backing, screw mounting, or placement on flat surfaces. The design prioritizes heat dissipation and durability for continuous operation in enclosed spaces.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.30" (33.02 mm), 3.47" (88.14 mm), 2.24" (56.90 mm), 134.9 g. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.47" (88.14 mm)
- Depth
- 2.24" (56.90 mm)
- Height
- 1.30" (33.02 mm)
- Weight
- 134.9 g
Highlights
- 24W maximum output power for compatible PoE devices
- Accepts 120V or 230V AC input for global compatibility
- Provides 24V DC, 1A output over Ethernet
- Integrated surge, clamping, and peak pulse current protection
- Compact dimensions: 3.47" W x 2.24" D x 1.30" H
- Lightweight design at 134.9 g for easy installation
- Certified to IEC, UL, EN, and FCC standards
- Single Ethernet input and output port configuration
Specifications
| Specifications | |
|---|---|
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | POE-24-24W |
| Brand Name | Ubiquiti |
| Product Model | POE-24-24W |
| Product Name | POE-24-24W Power over Ethernet Injector |
| Product Type | PoE Injector |
| Technical Information | |
| Protection Type | Surge Protection,Clamping Protection,Peak Pulse Current |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Output Voltage | 24 V DC |
| Maximum Input Current | 600 mA |
| Maximum Output Current | 1 A |
| Maximum Output Power | 24 W |
| Interfaces/Ports | |
| Input Ports | 1 x Ethernet |
| Output Ports | 1 x Ethernet |
| Physical Characteristics | |
| Height | 1.30" (33.02 mm) |
| Width | 3.47" (88.14 mm) |
| Depth | 2.24" (56.90 mm) |
| Weight (Approximate) | 134.9 g |
| Miscellaneous | |
| Certifications & Standards | IEC 60950-1:2005+A1 UL60950-1 EN55022:2010 EN55024:2010 FCC Class B |
| Country of Origin | China |
FAQ
What devices are compatible with the POE-24-24W injector?
The injector is compatible with network devices that support 24V passive PoE, including many Ubiquiti access points, IP cameras, and VoIP phones. Always verify the voltage requirements of your specific device before connection, as using incorrect voltage can damage equipment.
Can this injector be used with both 120V and 230V power sources?
Yes, the POE-24-24W accepts input voltages of 120V AC and 230V AC, making it suitable for use in North America and regions with 230V power grids. This dual-voltage capability eliminates the need for separate models or voltage converters when deploying equipment internationally.
What type of protection does the injector offer?
The injector includes surge protection, clamping protection, and peak pulse current protection. These features safeguard connected devices from voltage spikes, transient currents, and electrical disturbances that can occur in commercial or industrial environments, enhancing overall system reliability.
How much power does the injector deliver to connected devices?
The injector delivers up to 24W of power at 24V DC with a maximum output current of 1A. This power level is sufficient for most 24V passive PoE devices, including wireless access points and security cameras, ensuring stable operation without overloading the unit.
What are the physical dimensions and weight of the injector?
The injector measures 3.47 inches in width, 2.24 inches in depth, and 1.30 inches in height, with an approximate weight of 134.9 grams. This compact and lightweight design allows for flexible mounting in tight spaces, on walls, or within network cabinets without adding significant bulk.
What certifications does the POE-24-24W hold?
The injector is certified to IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010, and FCC Class B standards. These certifications cover electrical safety, electromagnetic compatibility, and regulatory compliance, ensuring the unit meets international requirements for professional use.
