Ubiquiti RD-5G30 AirMax Carrier Class 2 x 2 PtP Bridge Dish Antenna - 30 dBi - 5.1-5.8 GHz SHF - Up to 31.1 Mile Range
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This antenna leverages SHF band technology to provide efficient wireless data transmission across the 5.1 GHz to 5.8 GHz frequency range. The 30 dBi gain enhances signal strength and directionality, optimizing performance for long-distance links. The antenna does not include USB connectivity, focusing instead on dedicated RF interfaces for integration with compatible radios.
With a maximum range of 31.1 miles, the RD-5G30 supports high-throughput applications, ensuring minimal signal degradation over extended distances. Its design prioritizes radio efficiency and compatibility with Ubiquiti's Rocket series, facilitating seamless setup in point-to-point bridge configurations.
Relevant factors for this section include Maximum Antenna Range, Frequency Band Type, Operating Frequency Range, USB. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The RD-5G30 excels in delivering reliable, long-range wireless connectivity with high gain and focused signal transmission. Its carrier-class build ensures durability and performance in demanding outdoor environments, reducing maintenance needs and downtime.
High-Gain Performance
The 30 dBi gain amplifies signal strength, enabling clear communication over distances up to 31.1 miles, ideal for bridging remote locations.
- Enhanced signal directionality
- Reduced interference
- Optimized for long-range links
Robust Outdoor Design
Constructed for pole mounting, the antenna withstands weather conditions, ensuring consistent operation in outdoor installations.
- Weather-resistant materials
- Stable pole attachment
- Durable construction
Seamless Integration
Compatible with Ubiquiti Rocket radios, the antenna includes mounting brackets and RF jumpers for straightforward deployment in point-to-point networks.
- Pre-configured for Rocket series
- Includes necessary hardware
- Simplified installation process
Deployment / Use Cases
The RD-5G30 is tailored for point-to-point wireless bridge applications requiring extended range and high signal integrity. It serves as a reliable solution for connecting separate network segments across challenging terrains or urban environments.
Common use cases include ISP backhaul links, campus network extensions, surveillance system connectivity, and industrial IoT deployments. Its ability to maintain strong signals over 31.1 miles makes it suitable for rural broadband, enterprise WANs, and temporary network setups where wired infrastructure is impractical.
ISP Backhaul
Internet service providers use this antenna to establish long-distance links between towers or distribution points, expanding coverage without cabling.
Enterprise Network Bridging
Businesses deploy it to connect remote offices or facilities, ensuring high-speed data transfer for applications like VoIP, video conferencing, and file sharing.

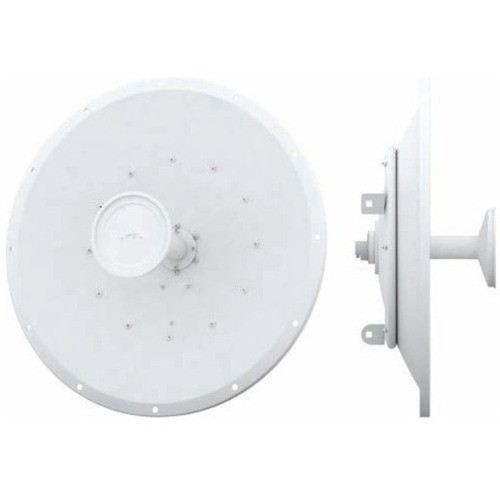

Physical Profile
The antenna measures 25.59 inches in height and diameter, with a width of 11.97 inches and a depth of 1 inch, resulting in a compact yet effective dish design. Weighing approximately 9.80 kg, it balances sturdiness with manageable installation. The pole-mount form factor allows for secure attachment to standard poles, facilitating elevated placement to optimize line-of-sight and signal coverage in outdoor settings.
- Width
- 11.97" (304 mm)
- Depth
- 1" (25.40 mm)
- Height
- 25.59" (650 mm)
- Weight
- 9.80 kg
What's in the Box
The package includes all essential components for immediate deployment:
Highlights
- 30 dBi isotropic gain for enhanced signal strength
- Operates in SHF band from 5.1 GHz to 5.8 GHz
- Maximum range of 31.1 miles for long-distance links
- Pole-mount form factor for outdoor installation
- Compatible with Ubiquiti Rocket radios
- Includes universal pole mount and RF jumpers
- Weighs 9.80 kg with durable construction
- 1-year limited warranty for reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | RD-5G30 |
| Brand Name | Ubiquiti |
| Product Line | RocketDish |
| Product Model | RD-5G-30 |
| Product Name | AirMax Carrier Class 2x2 PtP Bridge Dish Antenna |
| Product Type | Antenna |
| Technical Information | |
| Maximum Antenna Range | 31.1 Mile |
| Frequency Band Type | SHF |
| Operating Frequency Range | 5.1 GHz to 5.8 GHz |
| Antenna Gain (Isotropic) | 30 dBi |
| Interfaces/Ports | |
| USB | No |
| Physical Characteristics | |
| Height | 25.59" (650 mm) |
| Width | 11.97" (304 mm) |
| Depth | 1" (25.40 mm) |
| Diameter | 25.59" (650 mm) |
| Form Factor | Pole |
| Weight (Approximate) | 9.80 kg |
| Miscellaneous | |
| Application/Usage | Wireless Data Network |
| Package Contents | AirMax Carrier Class 2x2 PtP Bridge Dish Antenna Universal Pole Mount Rocket M Bracket Weatherproof RF Jumpers |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 1 Year |
FAQ
What is the frequency range of the RD-5G30 antenna?
The RD-5G30 operates in the SHF band, covering frequencies from 5.1 GHz to 5.8 GHz. This range is optimized for point-to-point wireless data transmission, providing stable connectivity with minimal interference in outdoor environments.
How far can this antenna transmit signals?
This antenna supports a maximum range of 31.1 miles under ideal conditions. The 30 dBi gain and focused dish design enable reliable long-distance links, making it suitable for bridging remote locations in applications like ISP backhaul or enterprise networks.
What mounting options are available for the RD-5G30?
The antenna features a pole-mount form factor, designed for secure attachment to standard poles. The package includes a universal pole mount and Rocket M bracket, facilitating easy installation in outdoor settings to optimize line-of-sight alignment.
Is this antenna compatible with Ubiquiti Rocket radios?
Yes, the RD-5G30 is fully compatible with Ubiquiti Rocket radios. It includes weatherproof RF jumpers and mounting brackets for seamless integration, allowing straightforward setup in point-to-point bridge configurations without additional adapters.
What is included in the package?
The package contains the AirMax Carrier Class 2x2 PtP Bridge Dish Antenna, a universal pole mount, Rocket M bracket, and weatherproof RF jumpers. These components provide everything needed for immediate deployment in wireless data network installations.
What warranty does this product have?
The RD-5G30 comes with a 1-year limited warranty. This coverage ensures reliability and support for defects in materials or workmanship, giving buyers confidence in its durability for long-term outdoor use.
