Ubiquiti U7-OUTDOOR Wi-Fi 7 Outdoor Access Point - Dual Band 2.4/5 GHz - 4.3 Gbps - PoE - IPX6 - Wall/Ceiling/Pole Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This access point leverages Wi-Fi 7 technology to achieve wireless transmission speeds up to 4.30 Gbit/s, providing ample bandwidth for high-density client environments and latency-sensitive applications. It incorporates Multi-User MIMO (MU-MIMO) technology to efficiently manage multiple simultaneous connections, optimizing network performance and reducing congestion.
The radio design includes three antennas total, with one internal and two external antennas, enhancing signal coverage and reliability. Data security is maintained through comprehensive encryption standards including WPA, WPA2, WPA3, WPA-PSK, and WPA-ENT, ensuring enterprise-grade protection for transmitted data.
Relevant factors for this section include Wireless LAN Standard, Network Band, Frequency Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The U7-OUTDOOR stands out with its combination of cutting-edge wireless technology and rugged outdoor design. Its support for Power over Ethernet (PoE) simplifies installation by delivering both data and power over a single cable, reducing wiring complexity and enabling placement in locations without direct power access.
High-Speed Backhaul

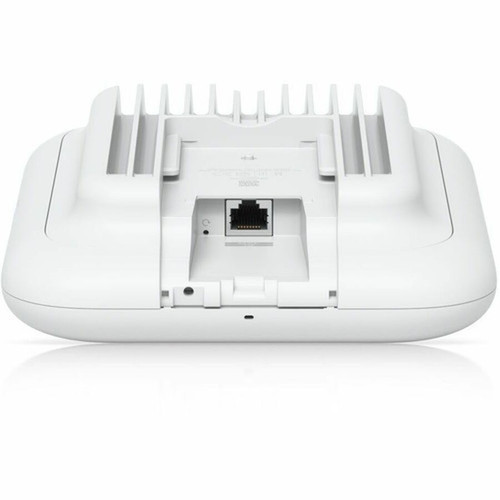

The integrated 2.5 Gigabit Ethernet port ensures the wired connection does not become a bottleneck, fully supporting the wireless throughput capabilities of Wi-Fi 7 for backhaul or uplink scenarios.
- 2.5 GbE ready
- Future-proof connectivity
- Minimizes wired bottleneck

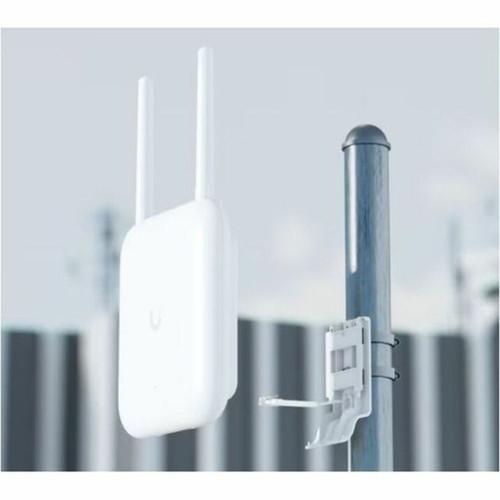

Flexible Deployment
With multiple mounting options and an outdoor-rated enclosure, this access point can be installed on walls, ceilings, or poles, adapting to diverse architectural and environmental requirements.
- Wall, ceiling, pole mount
- Outdoor durability
- Installation versatility
Deployment / Use Cases
The Ubiquiti U7-OUTDOOR is ideal for extending high-speed Wi-Fi coverage to outdoor areas where reliable connectivity is critical. Its robust construction and advanced wireless capabilities make it suitable for enterprise campuses, educational institutions, hospitality venues, and municipal wireless networks.
Common deployment scenarios include covering outdoor seating areas, parking lots, sports facilities, and between buildings where wired infrastructure is limited. The PoE support allows for cost-effective installations using existing network cabling, while the weather resistance ensures long-term operation in varied climatic conditions.
Outdoor High-Density Coverage
Deploy in public spaces like parks, stadiums, or plazas to provide Wi-Fi 7 connectivity for large crowds, leveraging dual-band operation and MU-MIMO for efficient client handling.
Bridge or Mesh Node
Use as a point-to-point or point-to-multipoint bridge to connect remote buildings, or integrate into a mesh network for seamless outdoor roaming across extended areas.

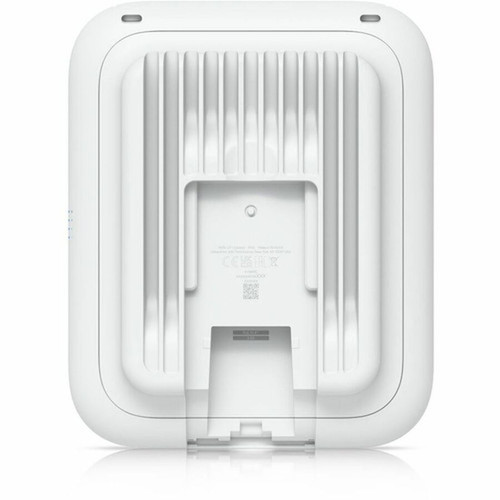

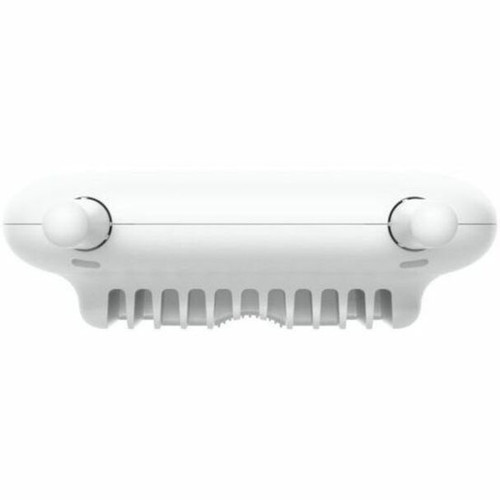

Physical Profile
The access point measures 11.02 inches in height, 6.69 inches in width, and 2.15 inches in depth (280 mm x 170 mm x 54.50 mm), with an approximate weight of 2.65 pounds (1200 g). Its compact and aerodynamic form factor is designed for discreet outdoor mounting while housing internal and external antennas for optimal radio performance. The unit's finish and build quality are tailored to withstand outdoor exposure, with mounting hardware typically included for secure installation on various surfaces.
- Width
- 6.69" (170 mm)
- Depth
- 2.15" (54.50 mm)
- Height
- 11.02" (280 mm)
- Weight
- 2.65 lb (1200 g)
Highlights
- Wi-Fi 7 outdoor access point with dual-band 2.4/5 GHz operation
- Maximum wireless throughput of 4.30 Gbit/s for high-speed connectivity
- Power over Ethernet (PoE) support simplifies installation and power delivery
- IPX6-rated enclosure for weather resistance in outdoor environments
- Flexible mounting options: wall, ceiling, and pole mountable
- Integrated 2.5 Gigabit Ethernet port for high-speed wired backhaul
- Multi-User MIMO (MU-MIMO) technology for efficient client management
- Comprehensive WPA/WPA2/WPA3 encryption for secure data transmission
- Low power consumption of 19 W for energy-efficient operation
- Three-antenna design (1 internal, 2 external) for enhanced coverage
Specifications
| Specifications | |
|---|---|
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | U7-OUTDOOR |
| Brand Name | Ubiquiti |
| Product Line | U7 |
| Product Name | U7 Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/be |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz,5 GHz |
| Total Number of Antennas | 3 |
| Number of Internal Antennas | 1 |
| Number of External Antennas | 2 |
| Indoor/Outdoor | Outdoor |
| Wireless Transmission Speed | 4.30 Gbit/s |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Data Encryption | Yes |
| Encryption Standard | WPA-PSK,WPA-ENT,WPA,WPA2,WPA3 |
| Ingress Protection (IP) Rating | IPX6 |
| Interfaces/Ports | |
| Ethernet Technology | 2.5 Gigabit Ethernet,Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 7 |
| Power Description | |
| Power Consumption | 19 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable,Ceiling Mountable,Pole-mountable |
| Antenna Form Factor | Internal/External |
| Height | 11.02" (280 mm) |
| Width | 6.69" (170 mm) |
| Depth | 2.15" (54.50 mm) |
| Weight (Approximate) | 2.65 lb (1200 g) |
FAQ
What Wi-Fi generation does the Ubiquiti U7-OUTDOOR support?
The Ubiquiti U7-OUTDOOR supports Wi-Fi 7, the latest generation of wireless networking technology. Wi-Fi 7, based on the IEEE 802.11be standard, offers significant improvements in speed, capacity, and efficiency over previous generations like Wi-Fi 6, making it ideal for high-demand outdoor environments with multiple connected devices.
Is this access point suitable for outdoor use?
Yes, the U7-OUTDOOR is specifically designed for outdoor deployment. It features an IPX6 ingress protection rating, which means it is protected against powerful water jets and can withstand harsh weather conditions. This makes it suitable for permanent installation in exposed locations like building exteriors, poles, or outdoor structures.
Does the U7-OUTDOOR support Power over Ethernet (PoE)?
Yes, this access point includes a PoE PD (Powered Device) port. This allows it to receive both data and electrical power over a single Ethernet cable from a compatible PoE switch or injector. PoE support simplifies installation by eliminating the need for a separate power outlet near the access point, reducing wiring costs and enabling flexible placement.
What is the maximum wireless speed of this access point?
The Ubiquiti U7-OUTDOOR delivers a maximum wireless transmission speed of 4.30 Gbit/s (gigabits per second). This high throughput is achieved through Wi-Fi 7 technology and dual-band operation, providing ample bandwidth for applications like 4K video streaming, large file transfers, and supporting numerous concurrent users in outdoor settings.
How many antennas does the U7-OUTDOOR have, and what is their configuration?
This access point has a total of three antennas. The configuration includes one internal antenna and two external antennas. This combination helps optimize signal coverage and reliability, with the external antennas potentially adjustable to fine-tune radiation patterns for specific deployment needs in outdoor environments.
What mounting options are available for the U7-OUTDOOR?
The U7-OUTDOOR offers versatile mounting options to suit various installation scenarios. It is designed to be wall mountable, ceiling mountable, and pole-mountable. This flexibility allows network administrators to deploy the access point in optimal locations for coverage, such as on building walls, under eaves, on light poles, or other outdoor structures, ensuring reliable Wi-Fi signal distribution.
