Ubiquiti UISP-HORN High-Gain Horn Antenna - 19.5 dBi - 5.15-6.875 GHz - Up to 9.3-Mile Range - Pole Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This antenna operates across a wide frequency range from 5.15 GHz to 6.875 GHz, supporting various licensed and unlicensed band applications. The 19.5 dBi gain provides focused beamwidth to maximize signal strength over extended distances, while the 2:1 VSWR minimizes signal reflection and loss for stable radio links.
The UISP-HORN is specifically compatible with Ubiquiti's UISP radio platforms, including airMAX Rocket Prism AC 5 GHz and airFiber 5XHD models. This integration ensures seamless performance within Ubiquiti ecosystems, leveraging the antenna's design for optimal throughput and range in wireless networking setups.
Relevant factors for this section include Maximum Antenna Range, Operating Frequency Range, Antenna Gain (Isotropic), Height. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The UISP-HORN antenna excels in delivering reliable, long-distance radio communication with minimal signal degradation. Its high gain and efficient design reduce the need for additional amplifiers or repeaters, lowering deployment costs and complexity.
Extended Range Coverage
Achieves communication links up to 9.3 miles, ideal for bridging gaps in rural, industrial, or campus networks where wired infrastructure is impractical.
- Supports point-to-point and point-to-multipoint configurations
- Enhances signal strength over obstacles and terrain
Precision Installation
Includes an alignment mounting kit for accurate directional placement on poles, ensuring optimal signal alignment and performance stability.
- Simplifies setup with integrated mounting hardware
- Allows fine-tuning for maximum link quality
Deployment / Use Cases
This antenna is suited for scenarios requiring robust, long-range wireless connectivity. Its high gain and frequency flexibility make it a versatile component in various networking applications.
Common deployments include connecting remote offices or facilities across distances up to 9.3 miles, extending wireless backhaul for surveillance or IoT networks, and providing reliable links in agricultural or mining operations where terrain challenges exist. The pole-mount design facilitates installation on existing infrastructure like towers or buildings.
Backhaul and Bridging
Use the UISP-HORN to create wireless bridges between network segments, supporting data, voice, and video transmission over long distances without cabling.
Outdoor and Industrial Networks
Deploy in harsh environments where durability and range are essential, such as for connecting equipment in remote sites or expanding coverage in large outdoor areas.
Physical Profile

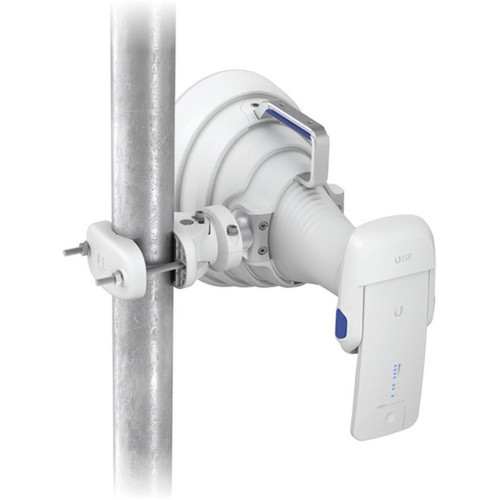

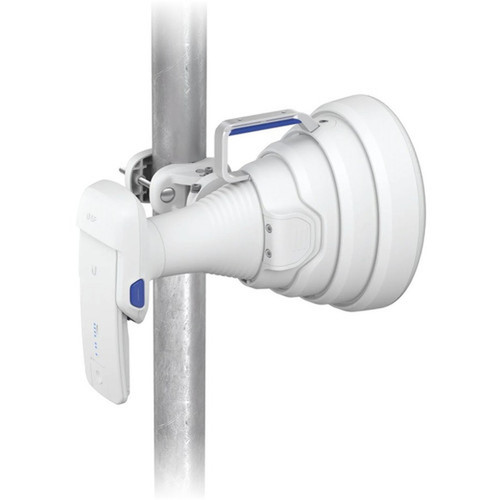

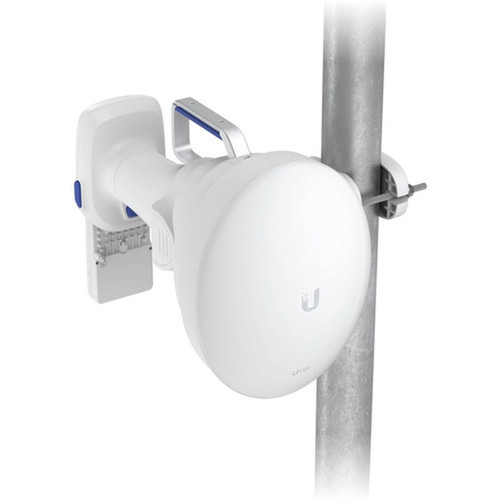

The antenna measures 11.10" in height, 14.96" in width, and 8.82" in depth, with a weight of approximately 3.06 kg. Its compact, horn-shaped design is built for outdoor durability, featuring a pole-mount form factor that integrates seamlessly with standard mounting hardware. The dimensions allow for easy handling and installation while maintaining a low profile to withstand environmental factors like wind and precipitation.
- Width
- 14.96" (380 mm)
- Depth
- 8.82" (224 mm)
- Height
- 11.10" (282 mm)
- Weight
- 3.06 kg
What's in the Box
The package includes all necessary components for immediate deployment:
Package contents include UISP Antenna Alignment Mounting Kit, UISP Antenna. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 19.5 dBi high-gain horn antenna for extended range up to 9.3 miles
- Operates across 5.15 GHz to 6.875 GHz wideband frequency range
- Includes alignment mounting kit for precise pole installation
- Compatible with Ubiquiti UISP radios like airMAX Rocket Prism AC 5 GHz and airFiber 5XHD
- 2:1 VSWR ensures efficient power transfer and minimal signal loss
- Pole-mount form factor for flexible outdoor deployment
- Compact dimensions: 11.10" H x 14.96" W x 8.82" D
- Weighs approximately 3.06 kg for easy handling and setup
Specifications
| Specifications | |
|---|---|
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | UISP-Horn |
| Brand Name | Ubiquiti |
| Product Line | UISP |
| Product Name | UISP Antenna |
| Product Type | Antenna |
| Technical Information | |
| Maximum Antenna Range | 9.3 Mile |
| Operating Frequency Range | 5.15 GHz to 6.875 GHz |
| Antenna Gain (Isotropic) | 19.5 dBi |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Physical Characteristics | |
| Height | 11.10" (282 mm) |
| Width | 14.96" (380 mm) |
| Depth | 8.82" (224 mm) |
| Form Factor | Pole |
| Weight (Approximate) | 3.06 kg |
| Miscellaneous | |
| Application/Usage | Radio Communication |
| Package Contents | UISP Antenna Alignment Mounting Kit |
| Compatibility | UISP Raidos: airMAX Rocket Prism AC 5 GHz airFiber 5XHD |
User Manual
FAQ
What is the maximum range of the Ubiquiti UISP-HORN antenna?
The UISP-HORN antenna supports radio communication links up to 9.3 miles under optimal conditions. This range is achieved through its 19.5 dBi gain and efficient design, making it suitable for long-distance point-to-point or point-to-multipoint deployments in various environments.
What frequency range does this antenna cover?
It operates from 5.15 GHz to 6.875 GHz, covering a wideband spectrum that includes both licensed and unlicensed frequencies. This flexibility allows it to support diverse radio communication applications, from standard Wi-Fi extensions to specialized industrial links.
How is the antenna gain of 19.5 dBi beneficial?
A 19.5 dBi gain significantly boosts signal strength and directionality, enabling clearer and more reliable transmissions over long distances. This high gain reduces interference and improves link stability, which is crucial for maintaining consistent performance in outdoor or challenging radio environments.
What mounting options are available for the UISP-HORN?
This antenna features a pole-mount form factor and includes an alignment mounting kit in the package. The kit facilitates easy installation on poles or similar structures, allowing for precise directional aiming to optimize signal alignment and range.
Which Ubiquiti radios are compatible with this antenna?
The UISP-HORN is compatible with Ubiquiti UISP radio models, specifically airMAX Rocket Prism AC 5 GHz and airFiber 5XHD. This ensures seamless integration within Ubiquiti ecosystems for enhanced wireless networking performance and management.
What does the Voltage Standing Wave Ratio (VSWR) of 2:1 indicate?
A VSWR of 2:1 indicates efficient impedance matching between the antenna and connected radio equipment, minimizing signal reflection and power loss. This results in more reliable transmission and reception, contributing to overall link quality and durability in radio communication setups.
