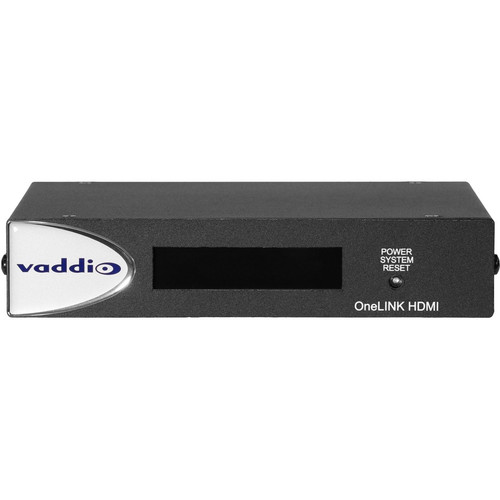

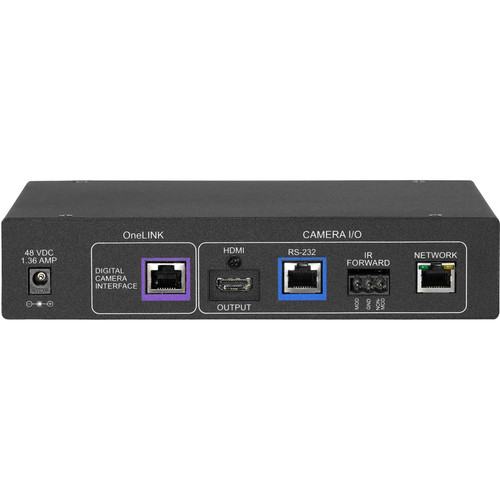

Vaddio OneLINK System for Sony & Panasonic HDMI Cameras - 1 Input Device - 1 Output Device - 328.08 ft (100000 mm) Range - 2 x Network (999-9530-000)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 1 x OneLINK HDMI Interface
- 1 x OneLINK EZIM for the Camera Side
- 1 x 48 VDC, 1.36 Amp Switching Power Supply
- 1 x AC Cord Set
- 1 x 12" (305mm) HDMI Cable
- 1 x 12" (305mm) Sony 12 VDC Power Cable
- 1 x 12" (305mm) Panasonic 12 VDC Power Cable
- 1 x 12" (305mm) Cat-5e Patch Cable for Network
- 1 x 12" (305mm) RJ-45 to 8-Pin Mini Din for RS-232
- 1 x Thin Profile Wall Mount (black) that fits Sony SRG120DH, SRG-300H and Panasonic AW-HE40H
- 2 x 6-32 x .188" Black Phillips Flat Head Screws
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 328.08 ft (100000 mm)
Graphics Modes: 4K
Supported Video Modes: 2160p
Maximum Video Resolution: 3840 x 2160
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Transmitter Height: 3.86" (98.07 mm)
Transmitter Width: 4.31" (109.47 mm)
Transmitter Depth: 1.24" (31.50 mm)
Receiver Height: 1.72" (43.69 mm)
Receiver Width: 8.38" (212.73 mm)
Receiver Depth: 6" (152.40 mm)
Form Factor: Wall Mountable
Transmitter Weight (Approximate): 250.8 g
Receiver Weight (Approximate): 704.4 g
Package Contents:
Country of Origin: United States
[custom-specifications]
| Specifications | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 999-9530-000 |
| Manufacturer Website Address | http://www.legrand.com |
| Brand Name | Vaddio |
| Product Line | OneLINK |
| Product Name | OneLINK System for Sony & Panasonic HDMI Cameras |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 328.08 ft (100000 mm) |
| Video | |
| Graphics Modes | 4K |
| Supported Video Modes | 2160p |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
| Physical Characteristics | |
| Transmitter Height | 3.86" (98.07 mm) |
| Transmitter Width | 4.31" (109.47 mm) |
| Transmitter Depth | 1.24" (31.50 mm) |
| Receiver Height | 1.72" (43.69 mm) |
| Receiver Width | 8.38" (212.73 mm) |
| Receiver Depth | 6" (152.40 mm) |
| Form Factor | Wall Mountable |
| Transmitter Weight (Approximate) | 250.8 g |
| Receiver Weight (Approximate) | 704.4 g |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | United States |
[/custom-specifications]
