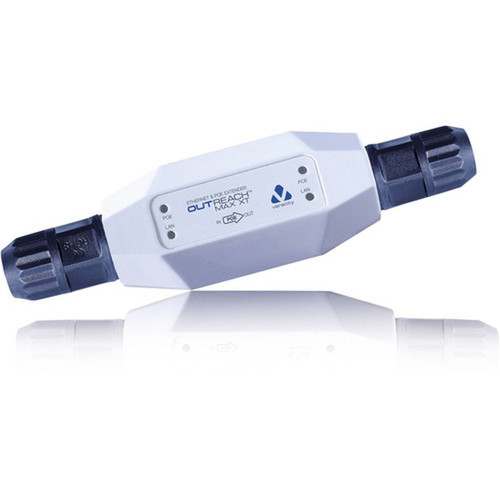

Veracity Outdoor Ethernet and POE Extender (VOR-ORM-XT)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Outdoor Ethernet and POE Extender
- IP66-Rated Connector Covers
- 2/4 Bolt Wall-Mounting Bracket
Height: 1.22" (31 mm)
Width: 1.97" (50 mm)
Length: 4.92" (125 mm)
Package Contents:
Additional Information:
OUTREACH Max XT outdoor-rated network extender for POE devices up to 60 watts.
Environmental:
Ambient temperature -40C to 60C / -40F to 140F
Relative humidity up to 85% non-condensing
Ingress protection to IP66, enclosure polycarbonate
IP Video and Security:
OUTREACH Max XT Ethernet extenders are ideal for IP video applications, as they eliminate the one disadvantage that network cameras have compared to older analogue cameras: the limited cable length. As POE is becoming universal in digital video installations, Cat 5 cable extension is as simple as connecting an OUTREACH Max XT wherever it is needed.
OUTREACH Max XT can also be used to upgrade legacy twisted-pair video installations to IP with POE, where the Cat 5 infrastructure for a network is already in place, but run lengths exceed the 100 meter limit for Ethernet.
PTZ cameras, heater/blower units and door interlocks are all examples of products that are adopting the extended-power POE Plus standard that OUTREACH Max XT also supports.
Wireless networking:
Like IP cameras, wireless access points (WAPs) are ideally suited to POE as they must be positioned optimally in locations that are often inaccessible or remote. Using OUTREACH Max XT, a WAP - or Bluetooth access point or RFID reader - can be located just where it is needed for optimal coverage.
High-power radios and 802.11n APs can take advantage of the POE Plus power which OUTREACH Max XT supports.
Extending non-POE networks:
OUTREACH Max XT can be used in combination with OUTREACH Lite XT to extend networks without PoE from 300 meters to over 2 kilometers.
TAA Compliant: Yes
Limited Warranty: 1 Year
[custom-specifications]
| Specifications | |
| Manufacturer | Veracity USA, Inc |
| Manufacturer Part Number | VOR-ORM-XT |
| Manufacturer Website Address | http://www.veracityusa.com |
| Brand Name | Veracity |
| Product Name | Outdoor Ethernet and POE Extender |
| Product Type | Network Extender |
| Physical Characteristics | |
| Height | 1.22" (31 mm) |
| Width | 1.97" (50 mm) |
| Length | 4.92" (125 mm) |
| Miscellaneous | |
| Package Contents |
|
| Additional Information | OUTREACH Max XT outdoor-rated network extender for POE devices up to 60 watts. |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
