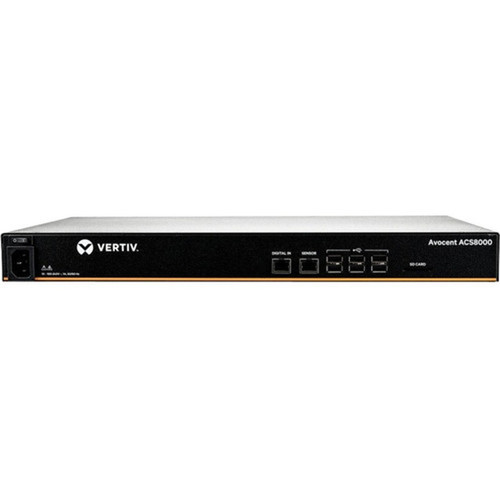

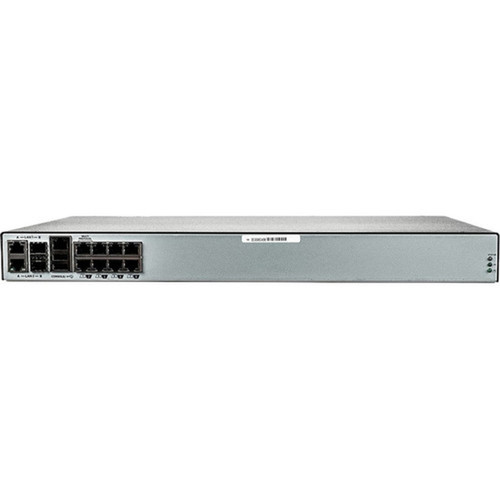

Vertiv Avocent ACS 8000 8-port Serial Console Server, Single AC Power - 1 GB - DDR3 SDRAM - Twisted Pair, Optical Fiber - 2 x Network (ACS8008SAC-400)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Device Type: Console Server
Standard Memory: 1 GB
Memory Technology: DDR3 SDRAM
Maximum Memory Supported: 16 GB
Media Type Supported: Twisted Pair,Optical Fiber
Wireless LAN: No
Ethernet Technology: Gigabit Ethernet
Network Standard: 10/100/1000Base-T,1000Base-X
Network (RJ-45): Yes
USB: Yes
Serial Port: Yes
Parallel Port: No
Centronics Port: No
PoE (RJ-45) Port: No
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 8
Number of Serial Ports: 8
Form Factor: Rack-mountable
Height: 1.75" (44.45 mm)
Width: 17.25" (438.15 mm)
Depth: 9.50" (241.30 mm)
Weight (Approximate): 7.50 lb (3401.94 g)
Country of Origin: United States
Limited Warranty: 2 Year
- REMOTE MANAGEMENT: Avocent ACS 8000 8-Port Advanced Terminal Management Serial Console Server with Single AC Power Supply allows users to access and troubleshoot remote locations using automatic network failover to cellular (and failback)
- AUTOMATED PROVISIONING: Offers fast, automated configuration with zero touch provisioning; compliant with data center access and security policies; powerful Dual-core ARM processor and 16GB of flash memory to support automation scripting
- 8 USB 2.0 PORTS: Support external devices, IoT products and IT equipment; Features digital input / output & sensor ports
- POWER DEVICE MANAGEMENT: Dual 1 gigabit Ethernet port for network connectivity and failover and secure in band management for daily networking management; Expanded support for Rack PDUs from Vertiv, ServerTech, APC, Raritan and Eaton along with Vertiv GXT4 UPS systems
- ENVIRONMENTAL SENSOR PORT: To connect temperature, humidity, differential pressure, leak, door pin sensors
[custom-specifications]
| Specifications | |
| Manufacturer | Vertiv |
| Manufacturer Part Number | ACS8008SAC-400 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Brand Name | Vertiv AVOCENT |
| Product Line | ACS |
| Product Series | 8000 |
| Product Model | ACS8008SAC-400 |
| Product Name | ACS 8000 Advanced Console Server |
| Product Type | Device Server |
| Technical Information | |
| Device Type | Console Server |
| Memory | |
| Standard Memory | 1 GB |
| Memory Technology | DDR3 SDRAM |
| Maximum Memory Supported | 16 GB |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Wireless Specifications | |
| Wireless LAN | No |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Standard | 10/100/1000Base-T,1000Base-X |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| Serial Port | Yes |
| Parallel Port | No |
| Centronics Port | No |
| PoE (RJ-45) Port | No |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 8 |
| Number of Serial Ports | 8 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.75" (44.45 mm) |
| Width | 17.25" (438.15 mm) |
| Depth | 9.50" (241.30 mm) |
| Weight (Approximate) | 7.50 lb (3401.94 g) |
| Miscellaneous | |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
