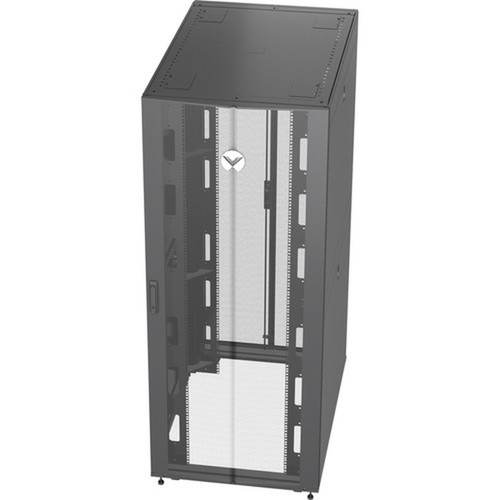

Vertiv VR Rack - 48U Server Rack Enclosure| 600x1100mm| 19-inch Cabinet (VR3107) (VR3107)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- VR - 48U with Doors/ Sides & Casters
- 50 x M6 Cage Nuts and M6 Screws
- Baying Hardware
- Edge Grommet
- Combination T30 Torx L-key with Phillips head
- Cage Nut Insertion Tool
- T30 Extension Driver
Application/Usage: Server,LAN Switch,Patch Panel,PDU,UPS,KVM Switch
Form Factor: Floor Standing
Product Color: Black
Product Material: Steel
Dynamic/Rolling Weight Capacity: 2248.72 lb (1020000 g)
Static/Stationary Weight Capacity: 2998.29 lb (1360000 g)
Height: 89.17" (2265 mm)
Width: 23.62" (600 mm)
Depth: 43.31" (1100 mm)
Rack Height: 48U
Rack Width: 19" (482.60 mm)
Rack Depth: 43.90" (1115 mm)
Weight (Approximate): 357.15 lb (162000 g)
Package Contents:
Assembly Required: No
Country of Origin: Thailand
Environmentally Friendly: Yes
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)
- 48U rack with load capacities of 3,000 pounds static and 2,500 pounds dynamic
- Modify this fully configurable rack cabinet to suit the needs of your network
- Frame design provides 2.5 inches more usable depth than a standard 19-inch rack cabinet
- Server enclosure dimensions (HxWxD): 2265mm x 600mm x 1100mm
- 48U server rack that supports: servers, storage, PDUs, UPSs, consoles, and KVM switches
[custom-specifications]
| Specifications | |
| Manufacturer | Vertiv |
| Manufacturer Part Number | VR3107 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Brand Name | VERTIV |
| Product Line | VR |
| Product Name | Vertiv VR Rack - 48U Server Rack Enclosure| 600x1100mm| 19-inch Cabinet (VR3107) |
| Product Type | Rack Cabinet |
| Technical Information | |
| Application/Usage | Server,LAN Switch,Patch Panel,PDU,UPS,KVM Switch |
| Physical Characteristics | |
| Form Factor | Floor Standing |
| Product Color | Black |
| Product Material | Steel |
| Dynamic/Rolling Weight Capacity | 2248.72 lb (1020000 g) |
| Static/Stationary Weight Capacity | 2998.29 lb (1360000 g) |
| Height | 89.17" (2265 mm) |
| Width | 23.62" (600 mm) |
| Depth | 43.31" (1100 mm) |
| Rack Height | 48U |
| Rack Width | 19" (482.60 mm) |
| Rack Depth | 43.90" (1115 mm) |
| Weight (Approximate) | 357.15 lb (162000 g) |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | No |
| Country of Origin | Thailand |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
