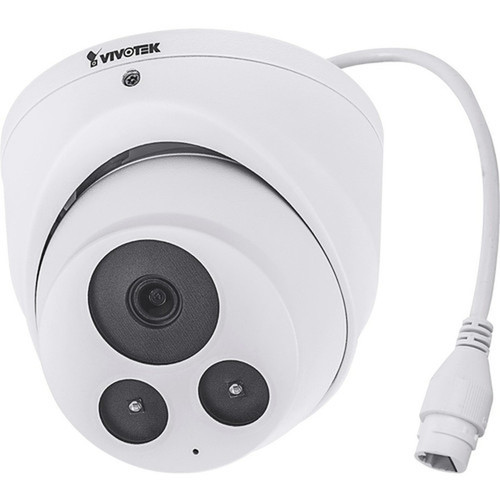

Vivotek IT9360-HF3 2MP HD Turret Network Camera - 1080p - 30m Night Vision - IP66/IK10 - H. 265 - Built-in Microphone & MicroSD Slot
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The IT9360-HF3 utilizes a CMOS image sensor that captures 2-megapixel video at 1920 x 1080 resolution with a maximum frame rate of 30 frames per second. The fixed 3.6mm lens with f/2 aperture ensures consistent focus across the viewing area, while the camera's advanced imaging features include Wide Dynamic Range Pro (WDR Pro) for handling extreme lighting contrasts and Supreme Night Visibility (SNV) technology for enhanced low-light performance.
Video processing incorporates Smart Stream III technology to optimize bandwidth efficiency without compromising image quality. The camera supports day/night operation with automatic switching between color and monochrome modes, and includes multiple exposure control features such as automatic white balance, auto gain control, back light compensation, and highlight compensation. Digital noise reduction and 3D digital noise reduction technologies further enhance image clarity in challenging lighting conditions.
Key Product Advantages
The Vivotek IT9360-HF3 delivers several distinct advantages for surveillance professionals seeking reliable outdoor monitoring solutions. Its combination of high-resolution imaging, robust construction, and intelligent features makes it suitable for a wide range of security applications.
Advanced Imaging Technologies
WDR Pro technology maintains visibility in scenes with extreme brightness variations, while SNV (Supreme Night Visibility) enhances performance in low-light conditions. These technologies work together with the camera's 2-megapixel sensor to deliver clear, detailed video regardless of lighting challenges.
- WDR Pro for high-contrast scenes
- SNV for low-light enhancement
- 2MP resolution for detailed capture
Robust Environmental Protection
With IP66 rating for complete protection against dust and powerful water jets, plus IK10 impact resistance that withstands 20 joules of impact energy, this camera is built to endure harsh outdoor conditions and potential vandalism attempts.
- IP66 weatherproof rating
- IK10 vandal-resistant housing
- Wide temperature range operation
Intelligent Video Management
Smart Stream III technology dynamically adjusts bandwidth usage based on scene complexity, while H.265 compression reduces storage requirements by up to 50% compared to H.264. The built-in microphone enables audio monitoring alongside video surveillance.
- Smart Stream III bandwidth optimization
- H.265 compression efficiency
- Built-in audio capability
Deployment / Use Cases
The IT9360-HF3 is specifically designed for outdoor surveillance applications where reliable performance in varying environmental conditions is essential. Its turret form factor provides a discreet profile that blends with architectural elements while offering flexible mounting options.
This camera excels in perimeter security applications, monitoring building exteriors, parking lots, and entry points where both day and night surveillance is required. The 30-meter night vision capability ensures continuous monitoring after dark, while the weatherproof construction maintains operation through rain, snow, and temperature extremes.
Commercial Property Security
Ideal for monitoring retail storefronts, office building perimeters, and industrial facility exteriors where 24/7 surveillance is needed. The camera's vandal-resistant design provides additional protection in publicly accessible areas.
Educational & Institutional Facilities
Well-suited for campus security, monitoring school grounds, university buildings, and hospital exteriors. The built-in MicroSD slot allows for local storage backup, while remote management capabilities enable centralized monitoring.
Physical Profile
The IT9360-HF3 features a compact turret design with a diameter of 4.13 inches (105 mm) and approximate weight of 1.05 pounds (475 grams). This form factor offers a low-profile appearance that minimizes visual intrusion while providing the durability needed for outdoor installation. The camera supports junction box mounting for secure attachment to walls or ceilings, and its construction includes a cable gland for weatherproof cable management. The turret design allows for flexible positioning to achieve optimal viewing angles while maintaining a discreet surveillance presence.
- Weight
- 1.05 lb (475 g)
- Length
- 3.6 mm (0.14")
What's in the Box
The package includes all necessary components for installation and operation of the network camera system.
Highlights
- 2-megapixel HD resolution at 1920 x 1080
- 30-meter night vision with built-in IR illuminators
- IP66 weatherproof and IK10 vandal-resistant housing
- H.265 compression for reduced bandwidth and storage
- Built-in MicroSD/SDHC/SDXC card slot for local storage
- WDR Pro technology for extreme lighting conditions
- Smart Stream III for optimized bandwidth efficiency
- Built-in microphone for audio monitoring
- Wide 95-degree diagonal field of view
- Trend Micro IoT Security for enhanced protection
Specifications
| Specifications | |
|---|---|
| Manufacturer | Vivotek, Inc |
| Manufacturer Part Number | IT9360-HF3 |
| Brand Name | Vivotek |
| Product Model | IT9360-HF3 |
| Product Name | IT9360-HF3 Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Number of IR LEDs | 2 |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color,Monochrome |
| Field of View | 81° (Horizontal) 44° (Vertical) 95° (Diagonal) |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.264,MJPEG,H.265 |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 3.6 mm (0.14") |
| Lens Included | Yes |
| Maximum Aperture | f/2 |
| Exposure | |
| Shortest Shutter Speed | 1/32000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mount Type | Junction Box Mount |
| Form Factor | Turret |
| Durability | Weather Proof,Vandal Proof |
| Diameter | 4.13" (105 mm) |
| Weight (Approximate) | 1.05 lb (475 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Wide Dynamic Range,Built-in IR LED,SD Card Local Storage,Built-in Microphone,Motion Detection,Audio Compression,Day/Night,Automatic White Balance,Auto Gain Control,Back Light Compensation (BLC),Highlight Compensation (HLC),Digital Noise Reduction,3D Digital Noise Reduction,Privacy Masking,Password Protection,Audio Detection,Tamper Detection,Built-in Memory,Built-in Card Reader,Defog |
| Indoor/Outdoor | Outdoor |
| Package Contents | IT9360-HF3 Network Camera Quick Installation Guide Alignment Sticker Screw Pack Cable Gland |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
User Manual
FAQ
What is the maximum video resolution of the Vivotek IT9360-HF3 camera?
The Vivotek IT9360-HF3 captures video at a maximum resolution of 1920 x 1080 pixels, which is Full HD quality. This 2-megapixel resolution provides clear, detailed imagery suitable for identifying subjects and reading license plates at appropriate distances. The camera maintains this resolution at up to 30 frames per second for smooth video playback and motion capture.
How far does the night vision reach on this camera?
The IT9360-HF3 features built-in infrared illuminators that provide effective night vision up to 98.43 feet (30 meters). The camera utilizes two IR LEDs to illuminate the surveillance area in complete darkness, and incorporates Supreme Night Visibility (SNV) technology to enhance image quality in low-light conditions. This extended range ensures reliable monitoring during nighttime hours for perimeter security applications.
What environmental protection ratings does this camera have?
This camera carries an IP66 ingress protection rating, making it completely dust-tight and protected against powerful water jets from any direction. It also features an IK10 impact protection rating, which means it can withstand impacts of up to 20 joules, equivalent to a 5 kg mass dropped from 40 cm. These ratings ensure the camera operates reliably in harsh outdoor environments and resists vandalism attempts.
What video compression formats does the camera support?
The IT9360-HF3 supports H.264, MJPEG, and H.265 video compression formats. H.265 (HEVC) compression is particularly valuable as it can reduce bandwidth usage by up to 50% compared to H.264 while maintaining similar video quality. This efficiency is enhanced by Smart Stream III technology, which dynamically adjusts compression based on scene complexity to optimize both bandwidth and storage utilization.
Does this camera include local storage capability?
Yes, the camera features a built-in MicroSD/SDHC/SDXC card slot that supports local storage for video recordings. This allows for on-board storage without requiring immediate network connectivity to a central recording system. The local storage can serve as a backup recording solution or as primary storage for standalone installations, with the capacity depending on the memory card installed.
What mounting options are available for this turret camera?
The IT9360-HF3 is designed for junction box mounting, which provides a secure and weatherproof installation method for outdoor applications. The turret form factor offers flexible positioning to achieve optimal viewing angles while maintaining a low-profile appearance. The package includes all necessary mounting hardware, including screws and a cable gland for weatherproof cable management during installation.
