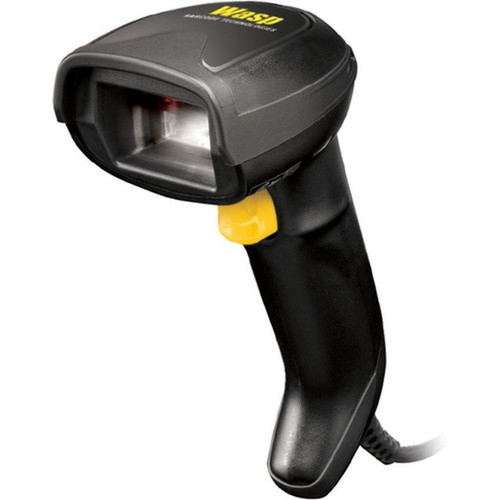

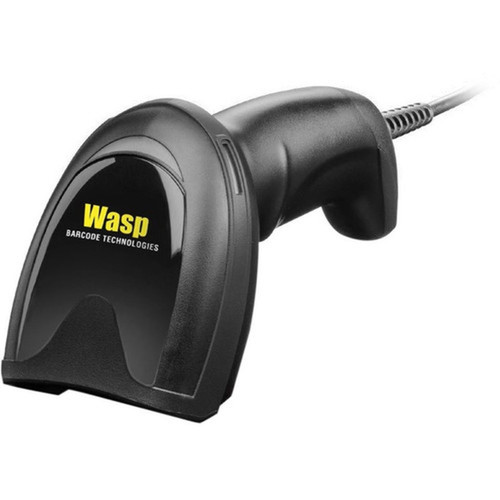

Wasp WDI4700 Industrial 2D Barcode Scanner w/USB cable - Cable Connectivity - 27.90" (708.66 mm) Scan Distance - 1D, 2D - Laser - - - (633809007149)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- GS1 DataBar™ linear codes.
- Aztec Code
- China Han Xin Code
- Data Matrix
- MaxiCode
- Micro QR Code
- QR Code
- Australian Post
- British Post
- China Post
- IMB
- Japanese Post
- KIX Post
- Planet Code
- Planet Code
- Postnet
- Royal Mail Code (RM4SCC) EAN/JAN Composites
- GS1 DataBar Composites
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- MacroPDF
- MicroPDF417
- PDF417
- UPC A/E Composites
- Digimarc Barcodes
- WDI4700 2D Barcode Scanner
- 6' USB cable
- Scanner programming guide
- 2-year warranty (Optional WaspProtect warranty available)
Connectivity Technology: Cable
Scanning Capability: 1D,2D
Barcode Symbology Supported: 1D codes:
Light Source: Laser
Image Sensor Type: Imager
Scan Mode: Trigger
Scan Pattern: Omni-directional
Scanning Distance: 27.90" (708.66 mm)
Cable Type Included: USB
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Maximum Ambient Light: 100000 lux
Drop Specification:
6.0 ft. (1.8 m)
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (Code 39): 10 mil (0.25 mm)
Minimum Element Resolution (DataMatrix): 7.50 mil (0.19 mm)
Maximum Element Resolution (DataMatrix): 15 mil (0.38 mm)
Minimum Element Resolution (PDF417): 5 mil (0.13 mm)
Maximum Element Resolution (PDF417): 10 mil (0.25 mm)
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Features: Scan Button,Notification LED,3GL,Beep,Ergonomic Design
Host Interface: USB
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 0% to 95%
Form Factor: Handheld
Color Family: Dual Color
Product Color: Black,Yellow
Durability: Drop Resistant
Weight (Approximate): 5.68 oz (161 g)
Package Contents:
Ingress Protection (IP) Rating: IP52
Application/Usage: Industrial,Ticketing,Retail,Light/Clean Manufacturing,Healthcare,Transportation,Entertainment,Commercial Service,Hospitality
Country of Origin: Vietnam
Environmental Compliance: China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
- Scans most popular 1D and 2D barcodes
- Omnidirectional code reading capability
- 1MP optics for excellent performance when reading from mobile devices
- High visibility white-illumination and 4-Dot aimer with center cross for targeted scanning
- Green Spot technology for good-read feedback
[custom-specifications]
| Specifications | |
| Manufacturer | Wasp Barcode Technologies |
| Manufacturer Part Number | 633809007149 |
| Manufacturer Website Address | http://www.waspbarcode.com |
| Brand Name | Wasp |
| Product Model | WDI4700 |
| Product Name | WDI4700 2D Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D codes:
|
| Light Source | Laser |
| Image Sensor Type | Imager |
| Scan Mode | Trigger |
| Scan Pattern | Omni-directional |
| Scanning Distance | 27.90" (708.66 mm) |
| Cable Type Included | USB |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | 6.0 ft. (1.8 m) |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 10 mil (0.25 mm) |
| Minimum Element Resolution (DataMatrix) | 7.50 mil (0.19 mm) |
| Maximum Element Resolution (DataMatrix) | 15 mil (0.38 mm) |
| Minimum Element Resolution (PDF417) | 5 mil (0.13 mm) |
| Maximum Element Resolution (PDF417) | 10 mil (0.25 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Features | Scan Button,Notification LED,3GL,Beep,Ergonomic Design |
| Interfaces/Ports | |
| Host Interface | USB |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Dual Color |
| Product Color | Black,Yellow |
| Durability | Drop Resistant |
| Weight (Approximate) | 5.68 oz (161 g) |
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Industrial,Ticketing,Retail,Light/Clean Manufacturing,Healthcare,Transportation,Entertainment,Commercial Service,Hospitality |
| Country of Origin | Vietnam |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
