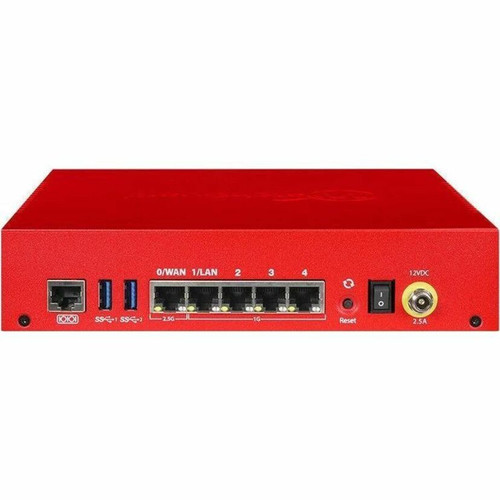

WatchGuard WGT125001 Firebox T125 Network Security Firewall Appliance - 5-Port - 2. 5GbE - 2. 28 Gbps Throughput - Policy Management
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Firebox T125 provides a balanced technical profile for secure gateway operations. Its core firewall engine processes up to 26,500 new connections per second, enabling rapid session establishment for user traffic. The appliance supports both 2.5 Gigabit Ethernet and standard Gigabit Ethernet interfaces across its five RJ-45 ports, offering flexibility for connecting to high-speed uplinks or internal network segments.
Security processing is handled through dedicated subsystems: VPN throughput reaches 184.32 MB/s for encrypted tunnel performance, while IPS throughput is rated at 90.63 MB/s for deep packet inspection workloads. The unit employs TLS as its primary encryption standard and manages traffic using protocols including L2TP, HTTPS, HTTP, FTP, TCP/UDP, and SMTPS.
This section brings together practical product details such as Functionality, Firewall Protection Supported, Firewall Throughput, Total Number of Ports, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Firebox T125 consolidates multiple security functions into a single, manageable appliance, reducing the need for disparate security devices at the network edge. Its compact form factor and low 20-watt power consumption make it suitable for locations with limited space or power constraints.
Comprehensive Threat Protection
The appliance supports a layered security approach including TLS decryption, antivirus, malware and ransomware protection, botnet detection, anti-phishing, data loss prevention, and blended threat prevention to address modern attack vectors.
- Advanced Threat Protection
- Denial of Service (DoS) Mitigation
- Packet Inspection
- Proxy Blocking
Centralized Policy Management
Administrators define and enforce security policies consistently across the network, with support for remote access authentication and granular control over application and user traffic.
- Unified Policy Framework
- Remote Access Controls
- Application-Aware Rules
Deployment / Use Cases
The Firebox T125 serves as a primary security gateway for small business networks, providing the first line of defense against external threats. Its throughput capabilities and port configuration make it effective for locations with moderate internet bandwidth requirements and standard office networking equipment.
Common deployment scenarios include securing branch office connections back to corporate headquarters via VPN tunnels, protecting retail point-of-sale systems and customer Wi-Fi networks, and serving as the internet firewall for professional offices with 10-50 users. The appliance's manageable nature allows IT teams to maintain consistent security policies across distributed locations.
Branch Office Security
Deploy at remote offices to establish secure VPN tunnels to headquarters while providing local threat protection for branch users and devices.
Small Business Perimeter
Serve as the main internet firewall for small businesses, inspecting all inbound and outbound traffic for threats while managing user access policies.
Physical Profile
The Firebox T125 features a compact desktop form factor measuring 9.06" wide by 8.27" deep by 1.73" high (230 x 210 x 44 mm), with an approximate weight of 2.92 lb (1324.49 g). This size allows placement on standard office furniture, network closets, or wall-mounted shelves. The unit complies with environmental standards including WEEE, RoHS, and REACH directives.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (44 mm), 9.06" (230 mm), 8.27" (210 mm), 2.92 lb (1324.49 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 9.06" (230 mm)
- Depth
- 8.27" (210 mm)
- Height
- 1.73" (44 mm)
- Weight
- 2.92 lb (1324.49 g)
Highlights
- 2.28 Gbps firewall throughput for efficient traffic inspection
- Five network ports with 2.5GbE and Gigabit Ethernet support
- Policy-based management for consistent security enforcement
- 184.32 MB/s VPN throughput for secure site-to-site connections
- Comprehensive threat protection including malware and ransomware defense
- Compact desktop form factor with low 20W power consumption
- Support for TLS encryption and multiple data link protocols
- 26,500 new connections per second for rapid session handling
- One-year standard support included
- Manageable via centralized security management platforms
Specifications
| Specifications | |
|---|---|
| Manufacturer | WatchGuard Technologies, Inc |
| Manufacturer Part Number | WGT125001 |
| Brand Name | WatchGuard |
| Product Line | Firebox |
| Product Model | T125 |
| Product Name | Firebox T125 Network Security/Firewall Appliance |
| Product Type | Network Security/Firewall Appliance |
| Technical Information | |
| Functionality | Policy Management |
| Firewall Protection Supported | TLS Decryption,Threat Protection,Antivirus,Stateful Inspection Firewall,Denial of Service (DoS),Blended Threat Prevention,Remote Access Authentication,Advanced Threat Protection,Malware Protection,Ransomware Protection,Trojan Horse,Data Loss Prevention,Anti-phishing,Botnet Detection,Packet Inspection,Proxy Blocking |
| Firewall Throughput | 2.28 Gbit/s |
| Encryption Standard | TLS |
| Data Link Protocols | L2TP,HTTPS,HTTP,FTP,TCP/UDP,SMTPS |
| Connectivity Technology | Wired |
| New Connections Per Second | 26500 |
| Interfaces/Ports | |
| Total Number of Ports | 5 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 5 |
| Media & Performance | |
| VPN Throughput | 184.32 MB/s |
| IPS Throughput | 90.63 MB/s |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet,Gigabit Ethernet |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Consumption | 20 W |
| Physical Characteristics | |
| Form Factor | Compact |
| Height | 1.73" (44 mm) |
| Width | 9.06" (230 mm) |
| Depth | 8.27" (210 mm) |
| Weight (Approximate) | 2.92 lb (1324.49 g) |
| Miscellaneous | |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Support/Service Duration | 1 Year |
| Support/Service Type | Standard Support |
User Manual
FAQ
What is the firewall throughput of the WatchGuard Firebox T125?
The Firebox T125 delivers 2.28 Gbit/s of firewall throughput. This capacity determines how much network traffic the appliance can inspect while applying security policies, making it suitable for small to medium business internet connections and branch office deployments.
How many network ports does this firewall appliance have?
The appliance features five total ports, all of which are RJ-45 network interfaces. These ports support both 2.5 Gigabit Ethernet and standard Gigabit Ethernet technologies, providing flexibility for connecting to various network segments and internet uplinks.
What types of threat protection does the Firebox T125 support?
The appliance supports comprehensive threat protection including TLS decryption, antivirus, malware protection, ransomware defense, botnet detection, anti-phishing, data loss prevention, and blended threat prevention. It also provides stateful inspection firewall capabilities with denial of service mitigation and proxy blocking.
What is the VPN throughput capability of this security appliance?
VPN throughput is rated at 184.32 MB/s. This performance metric indicates how quickly the appliance can encrypt and decrypt traffic for secure site-to-site or remote access VPN connections, which is essential for connecting branch offices or remote workers.
Is the Firebox T125 manageable for centralized administration?
Yes, the appliance is fully manageable. This allows network administrators to configure security policies, monitor threats, and manage the device through WatchGuard's management platforms, enabling consistent security enforcement across multiple locations from a central console.
What are the physical dimensions and form factor of this appliance?
The Firebox T125 has a compact desktop form factor measuring 9.06" wide × 8.27" deep × 1.73" high (230 × 210 × 44 mm) and weighs approximately 2.92 lb (1324.49 g). Its small footprint makes it suitable for placement on desks, shelves, or in network closets with limited space.
What throughput, switching capacity, or performance detail is listed?
The listed power specification is 2.28 Gbit/s, which helps position the unit for the right load level and installation role.
What performance, throughput, or capacity detail stands out?
The listed power specification is 2.28 Gbit/s, which helps position the unit for the right load level and installation role.
