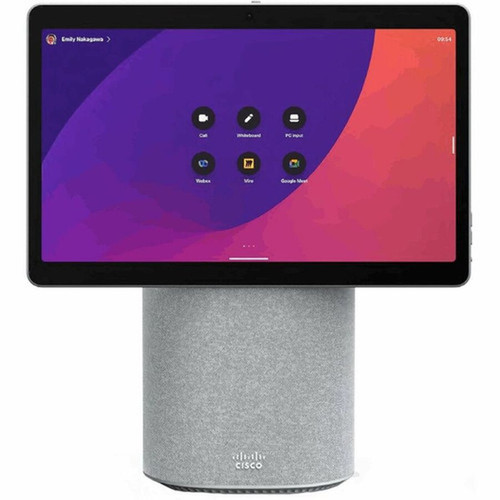

Webex CS-DESKMINI-C-K9 Desk Mini TTC9-01 Video Conference Equipment - 8MP Camera - 4K Content - Gigabit Ethernet - Room OS 10 - Carbon Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the Desk Mini features an 8-megapixel CMOS image sensor (1/3.2") capable of delivering Full HD 1080p video for live calls at 30 fps. For content sharing, it supports 4K UHD resolution (3840 x 2160), ensuring presentations and documents appear sharp and detailed.
The system is built on Room OS 10, Cisco's purpose-built operating system for collaboration devices. It includes a multi-touch screen for intuitive control and supports dual-stream technology to send video and content simultaneously.
This section brings together practical product details such as ITU-T Recommendation, Features, Room Size, Camera Resolution, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Desk Mini is designed to elevate small-room collaboration with superior audiovisual clarity and reliable connectivity. Its integrated approach reduces clutter and simplifies IT management.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Enhanced Meeting Clarity, Robust Connectivity.
Enhanced Meeting Clarity
Features like noise reduction, echo cancellation, automatic gain control, and ultrasound technology work together to minimize background noise and ensure clear audio pickup and playback.
- Advanced audio processing
- Clear voice transmission
- Reduced ambient noise
Robust Connectivity
Gigabit Ethernet provides a stable, high-bandwidth wired connection for video traffic, while built-in Wireless LAN offers deployment flexibility. The USB port allows for easy peripheral expansion.
- Wired Gigabit speed
- Wireless option
- Expansion-ready
Deployment / Use Cases
Ideal for focused collaboration in spaces like small huddle rooms, executive offices, or home offices where a full-room system is unnecessary. Its compact footprint fits easily on a desk or small table.
The device is perfectly suited for daily team check-ins, one-on-one client calls, or small group brainstorming sessions where high-quality video and screen sharing are essential.
This section brings together practical product details such as ITU-T Recommendation, Features, Room Size, Camera Resolution, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Huddle Room Solution
Provides a complete, professional conferencing setup for rooms typically accommodating 2-4 people, eliminating the complexity of managing separate cameras, speakers, and control systems.
Executive Desktop
Offers a premium, integrated conferencing experience for personal offices, supporting crisp video calls and seamless content sharing directly from the desk.
Physical Profile
The unit sports a sleek Carbon Black finish with compact dimensions (16.25" H x 14.60" W x 5.30" D), designed for a professional desktop presence. Weighing approximately 8.5 lbs, it is solidly built yet easy to reposition if needed. The integrated design includes the display, camera, and speakers, requiring no external mounts for core functionality.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 16.25" (412.75 mm), 14.60" (370.84 mm), 5.30" (134.62 mm), 8.50 lb (3855.54 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 14.60" (370.84 mm)
- Depth
- 5.30" (134.62 mm)
- Height
- 16.25" (412.75 mm)
- Weight
- 8.50 lb (3855.54 g)
What's in the Box
The package includes everything required for a basic setup to begin video conferencing immediately.
Highlights
- 8-megapixel CMOS camera for high-definition video
- Supports 4K UHD resolution for ultra-sharp content sharing
- Room OS 10 provides a dedicated, secure collaboration platform
- Gigabit Ethernet and Wireless LAN for flexible, reliable connectivity
- Advanced audio features: noise reduction, echo cancellation, AGC
- Compact design optimized for small rooms and desktops
- Multi-touch screen for intuitive meeting control
- Compliant with RoHS and WEEE environmental directives
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | CS-DESKMINI-C-K9 |
| Brand Name | Webex |
| Product Line | Desk Mini |
| Product Model | TTC9-01 |
| Product Name | Desk Mini TTC9-01 Video Conference Equipment |
| Product Type | Video Conference Equipment |
| Technical Information | |
| ITU-T Recommendation | H.323,SIP |
| Features | Noise Reduction,Multi-touch Screen,Echo Cancellation,Automatic Gain Control,Ultrasound Technology,Dual Stream |
| Room Size | Small |
| Camera | |
| Camera Resolution | 8 Megapixel |
| Image Sensor Size | 1/3.2 |
| Image Sensor Type | CMOS |
| Video | |
| Graphics Modes (Live) | Full HD |
| Graphics Modes (Content) | 4K UHD |
| Video Signal Format | NTSC |
| Maximum Video Resolution (Live) | 1920 x 1080 |
| Maximum Video Resolution (Content) | 3840 x 2160 |
| Maximum Frame Rate | 30 fps |
| Video Encoding | H.263,H.264 AVC |
| Audio | |
| Speaker Form Factor | Internal |
| Audio Encoding | G.711,G.722,G.722.1,G.729,AAC-LD,Opus |
| Network & Communication | |
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Wireless Specifications | |
| Wireless LAN | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Operating System | |
| Operating System Supported | Room OS 10 |
| Physical Characteristics | |
| Product Color | Carbon Black |
| Height | 16.25" (412.75 mm) |
| Width | 14.60" (370.84 mm) |
| Depth | 5.30" (134.62 mm) |
| Weight (Approximate) | 8.50 lb (3855.54 g) |
| Miscellaneous | |
| Package Contents | Desk Mini TTC9-01 Video Conference Equipment USB-C cable Power cable |
| Application/Usage | Video Conferencing |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
User Manual
FAQ
What is the camera resolution on the Webex Desk Mini?
The Webex Desk Mini TTC9-01 is equipped with an 8-megapixel camera featuring a 1/3.2" CMOS image sensor. This provides high-definition video quality for live calls, ensuring participants appear clear and detailed during meetings.
Can this device share content in 4K resolution?
Yes. While live video calls are transmitted in Full HD (1920 x 1080), the Desk Mini supports content sharing at 4K UHD resolution (3840 x 2160). This means presentations, documents, or screen shares will be displayed in exceptional detail on the receiving end.
What audio features does it include for call clarity?
The system incorporates several professional audio technologies to enhance call quality. These include noise reduction to minimize background sounds, echo cancellation to prevent audio feedback, automatic gain control to maintain consistent volume, and ultrasound technology for precise audio tuning, resulting in clear, natural-sounding conversations.
What networking options are available?
The Desk Mini offers both wired and wireless connectivity. It has one Gigabit Ethernet (10/100/1000Base-T) RJ-45 port for a stable, high-speed wired connection. It also includes built-in Wireless LAN (Wi-Fi) for deployment flexibility in spaces where running a cable is impractical.
What operating system does it run?
This device runs on Room OS 10, Cisco's purpose-built operating system designed specifically for collaboration endpoints. It provides a secure, optimized interface for video conferencing, device management, and seamless integration with Webex and other compatible platforms.
What is included in the box with the unit?
The package contains the Desk Mini TTC9-01 video conference equipment unit itself, a USB-C cable for connectivity and peripherals, and a power cable. This provides the essential components needed for a basic setup to start video conferencing.
What camera resolution or video format is listed?
It features a display specification of 8 Megapixel, giving you clear visuals for work and media use.
What field of view or room-coverage detail is listed?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
