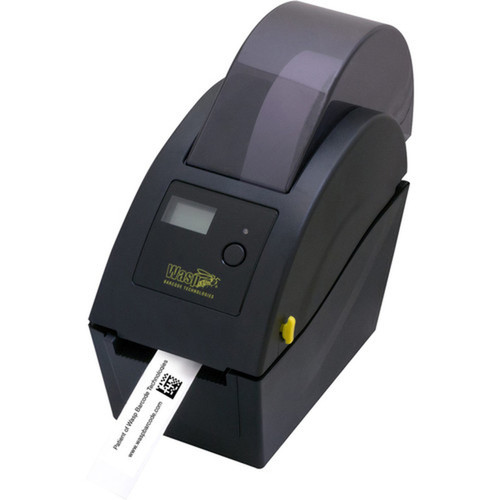

Wasp 633808403911 WHC25 Desktop Direct Thermal Wristband Printer - 2. 05" Print Width - 5 in/s Speed - 203 dpi - Monochrome - LCD Display
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The WHC25 utilizes direct thermal printing technology, eliminating the need for ribbons or toner while producing durable, smudge-resistant wristbands. It features 8 MB of standard memory and 4 MB of flash memory, providing sufficient buffer for complex label formats and graphics. The printer accepts media rolls up to 6.5 inches in diameter and can handle label lengths up to 90 inches for extended continuous printing tasks.
Media handling is enhanced with cover open and transmissive media sensors, ensuring proper alignment and reducing waste. The printer supports WPL, ZPL, and EPL language emulations, offering broad compatibility with industry-standard labeling applications. Power is supplied via AC adapter, and the unit carries multiple international safety certifications including FCC, CE, UL, and CCC.
This section brings together practical product details such as Recommended Use, Print Color Capability, Maximum Mono Print Speed, Standard Memory, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The WHC25 combines specialized wristband printing capability with robust construction and intuitive operation. Its compact footprint and lightweight design make it suitable for space-constrained environments while maintaining professional-grade output quality.
Comprehensive Barcode Support
Supports over 20 barcode symbologies including Code 128, QR Code, Data Matrix, PDF-417, and all major retail and industrial formats for versatile identification applications.
- Code 39/93/128
- QR Code & Data Matrix
- PDF-417 & Maxi Code
- EAN/UPC Retail Codes
- GS1 DataBar & Aztec
Reliable Media Handling
Accepts wristband and label rolls up to 6.5" in diameter with precise sensor alignment and support for extended 90" label lengths for continuous printing operations.
- 6.5" Maximum Roll Diameter
- 90" Maximum Label Length
- Dual Media Sensors
- Clamshell Loading Design
Dual Connectivity Options
Features both USB 2.0 and Ethernet interfaces for flexible deployment in direct-attached or networked environments, supporting simultaneous connectivity for multiple workstations.
- USB 2.0 Interface
- Integrated Ethernet
- Network Printing Ready
- PC Platform Support
Deployment / Use Cases
The WHC25 is specifically designed for wristband printing applications where durability, legibility, and efficient operation are critical. Its monochrome direct thermal output produces water-resistant and smudge-proof identification that remains readable throughout extended wear periods.
In healthcare settings, the printer generates patient wristbands for admission, medication administration, and specimen tracking. For events and venues, it creates secure attendee wristbands with barcodes for access control and tracking. Industrial applications include safety identification, inventory tracking, and process control labeling where wristband durability is essential.
This section brings together practical product details such as Recommended Use, Print Color Capability, Maximum Mono Print Speed, Standard Memory, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
Measuring 8.27" high, 4.20" wide, and 10.24" deep, the WHC25 occupies minimal desk space while providing full wristband printing capability. The 2.70-pound weight allows for easy repositioning between workstations or temporary locations. The clamshell design provides straightforward media loading and access to internal components when needed.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 8.27" (210.06 mm), 2.05" (52.07 mm), 10.24" (260.10 mm), 2.70 lb (1224.70 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.05" (52.07 mm)
- Depth
- 10.24" (260.10 mm)
- Height
- 8.27" (210.06 mm)
- Weight
- 2.70 lb (1224.70 g)
- Length
- 90" (2286 mm)
What's in the Box
The WHC25 ships complete with everything needed for immediate operation, including sample media for testing and evaluation.
Highlights
- Direct thermal printing technology for ribbon-free operation
- 2.05" maximum print width optimized for wristband applications
- 5 inches per second print speed for efficient throughput
- 203 dpi resolution for crisp text and barcode output
- 8 MB SDRAM with 4 MB flash memory for label storage
- WPL, ZPL, and EPL printer language emulation support
- Accepts media rolls up to 6.5" in diameter
- Compact clamshell design with integrated LCD display
- USB 2.0 and Ethernet connectivity options
- 2-year limited warranty with international certifications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Wasp Barcode Technologies |
| Manufacturer Part Number | 633808403911 |
| Brand Name | Wasp |
| Product Model | WHC25 |
| Product Name | WHC25 Wristband Printer |
| Product Type | Direct Thermal Printer |
| Technical Information | |
| Recommended Use | Wristband Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 5 in/s (127 mm/s) |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Width | 2.05" (52.07 mm) |
| Barcode Symbology Supported | Code 39,Code 93,Code 128 UCC,Code 128-A,Code 128-B,Code 128-C,Codabar,Interleaved 2 of 5,EAN-8,EAN-13,EAN 128,UPC-A,UPC-E,UPC E with 2 and 5 add on,MSI,Plessey,POSTNET,China Post,GS1 DataBar,Code 11,PDF-417,Maxi Code,Data Matrix,QR Code,Aztec Code |
| Application/Usage | Desktop |
| Memory | |
| Standard Memory | 8 MB |
| Flash Memory | 4 MB |
| Interfaces/Ports | |
| USB | Yes |
| Network & Communication | |
| Ethernet | Yes |
| Ethernet Technology | Ethernet |
| Display & Graphics | |
| Display Screen | Yes |
| Display Screen Type | LCD |
| Media Types & Handling | |
| Media Type | Wristband |
| Media Size | 0.59" (15 mm) x 2.05" (52 mm) |
| Media Sensor | Cover Open Sensor,Transmissive Media Sensor |
| Maximum Roll Diameter | 6.5" (165.10 mm) |
| Maximum Label Length | 90" (2286 mm) |
| Fonts & Emulation | |
| Language Emulation | WPL,ZPL,EPL |
| Power Description | |
| Power Source | AC Supply |
| Physical Characteristics | |
| Height | 8.27" (210.06 mm) |
| Width | 4.20" (106.68 mm) |
| Depth | 10.24" (260.10 mm) |
| Weight (Approximate) | 2.70 lb (1224.70 g) |
| Miscellaneous | |
| Package Contents | WHC25 Desktop Wristband Printer USB Cable Power Cord 200 x Sample Labels (2.0 in. x 1.0 inc) 2-year Warranty |
| Cables Included | USB |
| Platform Supported | PC |
| Certifications & Standards | FCC Class B CE Class B C-Tick Class B UL CUL TUV/Safety CCC |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What type of printing technology does the WHC25 use?
The WHC25 utilizes direct thermal printing technology, which applies heat to specially coated thermal media to create images without requiring ink, toner, or ribbons. This results in simplified maintenance, lower consumable costs, and reliable monochrome output suitable for wristband applications where durability is important.
What is the maximum width of wristbands this printer can handle?
The WHC25 supports wristband media up to 2.05 inches (52.07 mm) wide. This width is specifically optimized for standard patient and event wristbands while providing sufficient space for text, barcodes, and identification information. The printer can also handle narrower media within this maximum width specification.
How fast does the WHC25 print wristbands?
The printer operates at a maximum speed of 5 inches per second (127 mm/s) for monochrome output. This speed enables efficient production of wristbands in batch operations while maintaining 203 dpi print quality. Actual throughput will vary based on label complexity and connectivity method.
What connectivity options are available for this wristband printer?
The WHC25 includes both USB 2.0 and Ethernet interfaces. The USB connection supports direct attachment to a single workstation, while the integrated Ethernet port enables network deployment for shared access across multiple computers. Both interfaces are standard and support common printer protocols.
What barcode types does the WHC25 support?
The printer supports over 20 barcode symbologies including linear codes like Code 39, Code 128, Interleaved 2 of 5, and UPC/EAN retail codes, plus 2D codes such as QR Code, Data Matrix, PDF-417, and Aztec Code. This comprehensive support ensures compatibility with healthcare, retail, industrial, and event management systems.
What is included with the WHC25 wristband printer?
The package includes the WHC25 desktop wristband printer, a USB cable for connectivity, a power cord for AC operation, 200 sample labels measuring 2.0 x 1.0 inches for testing, and documentation covering the 2-year limited warranty. All necessary components for immediate setup and operation are provided.
What print, scan, copy, or multifunction capability is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What sheet capacity, media size, or paper handling detail is listed?
0.59" (15 mm) x 2.05" (52 mm).
