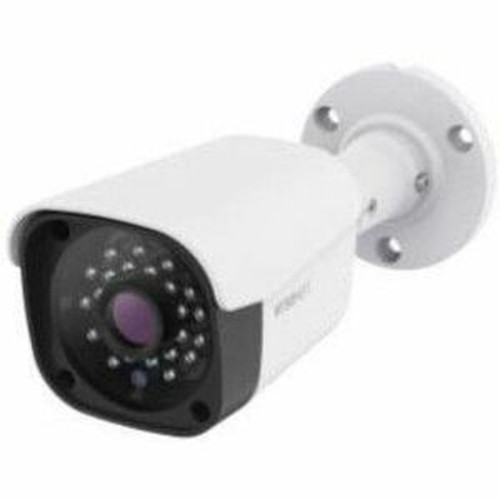

Wisenet ACO-6020R 2MP Bullet Surveillance Camera - White - 82 ft (25 m) Infrared Night Vision - 3. 6 mm Fixed Lens - AHD/TVI/CVI/CVBS - IP67 IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ACO-6020R features a fixed 3.6 mm lens with an 81° horizontal and 42° vertical field of view, providing a balanced perspective for monitoring entry points, corridors, or perimeter areas. Its imaging capabilities are enhanced by Digital Wide Dynamic Range (D-WDR) and Day/Night functionality, which optimize picture quality in challenging lighting scenarios such as backlit environments or rapid transitions between light and dark.
Power is supplied via 12V DC, making it straightforward to integrate with standard surveillance power supplies or PoE adapters. The wired connectivity ensures stable video transmission without wireless interference, crucial for continuous recording applications.
Relevant factors for this section include Night Vision, Night Vision Distance, Night Vision Type, Color Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ACO-6020R combines essential surveillance features with a budget-friendly design, making it an accessible choice for small businesses, residential properties, or supplemental coverage in larger security networks. Its straightforward installation and low operational costs align with practical monitoring requirements.
Robust Environmental Protection
With an IP67 rating for dust and water resistance and an IK10 impact protection rating, this camera withstands harsh weather conditions and physical impacts, reducing maintenance needs and ensuring long-term reliability in exposed locations.
Versatile Video Format Support
Compatibility with AHD, TVI, CVI, and CVBS analog formats allows seamless integration into hybrid or legacy surveillance setups, offering flexibility for system upgrades or expansions without replacing entire infrastructure.
Deployment / Use Cases
This camera is well-suited for applications where reliable, around-the-clock surveillance is needed without excessive complexity or cost. Its durable construction and standard analog connectivity make it a practical fit for both new installations and retrofits in environments like warehouses, offices, schools, or residential complexes.
For extended coverage, multiple units can be deployed to create overlapping fields of view, enhancing overall security posture. The fixed lens simplifies setup, reducing adjustment time during installation compared to varifocal models.
Perimeter Security
Install along fences, gates, or building exteriors to monitor unauthorized access, leveraging the 82-foot night vision and wide field of view for comprehensive outdoor coverage in all lighting conditions.
Retail or Entryway Monitoring
Position above doors, in parking lots, or at storefronts to capture clear footage of foot traffic, vehicle movement, or incident documentation, with the white color blending into many architectural styles.
Highlights
- 2-megapixel resolution for detailed surveillance footage
- Infrared night vision up to 82.02 feet (25 meters)
- Fixed 3.6 mm lens with 81° horizontal field of view
- Supports AHD, TVI, CVI, and CVBS analog video formats
- IP67 weatherproof and IK10 impact-resistant ratings
- Digital Wide Dynamic Range (D-WDR) for improved image quality
- Day/Night functionality for 24/7 monitoring
- 12V DC power input for easy integration
- White bullet design for discreet installation
- 30 fps maximum frame rate for smooth video capture
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | ACO-6020R |
| Brand Name | Wisenet |
| Product Series | A |
| Product Name | A Surveillance Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| Night Vision | Yes |
| Night Vision Distance | 82.02 ft (25 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Color Supported | Color |
| Field of View | H: 81° / V: 42° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | AHD,TVI,CVI,CVBS |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 3.6 mm (0.14") |
| Lens Included | Yes |
| Network & Communication | |
| Connectivity Technology | Wired |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Form Factor | Bullet |
| Miscellaneous | |
| Features | Digital Wide Dynamic Range (D-WDR),Day/Night |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
User Manual
FAQ
What is the effective resolution of the Wisenet ACO-6020R camera?
The camera provides 2-megapixel resolution, which delivers clear and detailed images suitable for identifying faces, license plates, or other critical details in surveillance footage. This resolution balances file size and visual clarity for efficient storage and review.
How far does the night vision reach on this camera?
The infrared night vision covers distances up to 82.02 feet (25 meters), allowing the camera to capture usable footage in complete darkness. This range is effective for monitoring medium to large outdoor areas like driveways, yards, or perimeter fences during nighttime hours.
What video formats does the ACO-6020R support?
It supports multiple analog video formats including AHD, TVI, CVI, and CVBS. This compatibility ensures the camera can work with a wide variety of DVRs and hybrid recorders, making it a flexible choice for both new installations and upgrades to existing surveillance systems.
Is this camera suitable for outdoor use?
Yes, with an IP67 rating for dust and water resistance and an IK10 impact protection rating, the camera is built to withstand harsh outdoor conditions. It can handle rain, snow, dust, and physical impacts, making it reliable for exterior mounting in all seasons.
What type of lens does the camera have?
It features a fixed 3.6 mm lens, which provides a consistent field of view without adjustment. This lens offers an 81° horizontal and 42° vertical angle, ideal for covering entry points, hallways, or other defined areas where a stable perspective is preferred.
How is the camera powered?
The camera requires 12V DC power, which is commonly supplied by surveillance power adapters or PoE injectors. This standard voltage simplifies integration with typical security system power setups, ensuring reliable operation without specialized electrical requirements.
