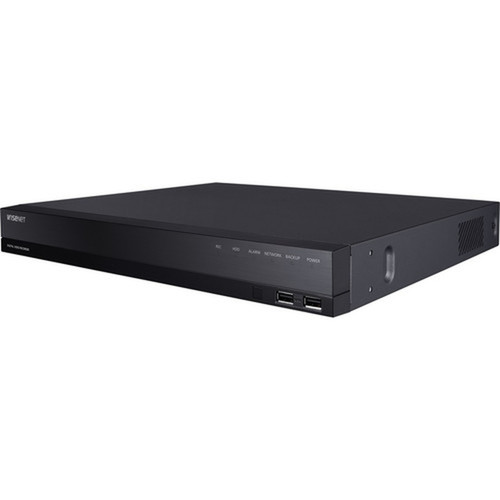

Wisenet HRX-435 4-Channel Pentabrid DVR - 8MP HD Recording - H. 265/H. 264 - Ethernet - HDMI
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The HRX-435 records video at a maximum frame rate of 30 fps and supports both PAL and NTSC signal formats, ensuring broad compatibility with surveillance cameras globally. It includes essential ports such as HDMI, VGA, composite video in/out, and four audio inputs for synchronized audio-video capture.
Network capabilities are central to its design, featuring Ethernet for integration into local networks and remote management functionality that enables monitoring and control from any internet-connected location. The DVR also offers a USB port for easy data transfer and device connectivity.
Relevant factors for this section include Total Number of Channels, Connectivity Technology, HD Recording, Video Formats. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This DVR stands out for its balance of performance and practicality in entry-level to mid-range surveillance deployments. The 8MP resolution ensures that image details remain clear, which is critical for identifying subjects or incidents in recorded footage.
Efficient Storage Management
H.265 and H.264 compression reduce file sizes significantly, allowing longer retention periods on installed storage drives without sacrificing video clarity.
- Optimized for 24/7 recording
- Reduces bandwidth usage
Flexible Monitoring Options
With HDMI, VGA, and composite outputs, the DVR supports multiple display setups, from modern monitors to legacy screens, facilitating easy onsite viewing.
- Multi-format output support
- Easy integration with existing displays
Deployment / Use Cases
The Wisenet HRX-435 is ideal for small businesses, offices, or residential properties that need a dependable surveillance recorder without the complexity of larger systems. Its 4-channel capacity handles setups with a few strategically placed cameras, covering entrances, cash registers, or common areas effectively.
In retail environments, this DVR can monitor sales floors and storage rooms, providing evidence in case of theft or disputes. For home security, it offers a straightforward solution for monitoring driveways, garages, or front doors, with remote access allowing homeowners to check feeds from smartphones or computers.
Small Business Security
Deploy in shops, clinics, or small offices to deter theft and ensure employee safety, with easy remote management for offsite oversight.
Residential Surveillance
Use in homes to monitor perimeters and entry points, leveraging the DVR's compact size and simple setup for DIY installations.
Physical Profile
The DVR features a compact, low-profile design with dimensions of 14.57" wide, 12.60" deep, and 1.73" high, making it easy to install in tight spaces like under desks, on shelves, or in network cabinets. Its weight of 5.07 lb ensures stability without being cumbersome, and the 40W power consumption aligns with energy-efficient operation for continuous use.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (44 mm), 14.57" (370 mm), 12.60" (320 mm), 5.07 lb (2300 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 14.57" (370 mm)
- Depth
- 12.60" (320 mm)
- Height
- 1.73" (44 mm)
- Weight
- 5.07 lb (2300 g)
Highlights
- 4-channel Pentabrid DVR for small-to-mid surveillance systems
- 8MP maximum recording resolution for detailed HD video
- H.265 and H.264 video compression for efficient storage use
- Ethernet connectivity enables network integration and remote access
- HDMI and VGA outputs support multiple display options
- Four audio inputs allow synchronized sound recording
- Compact design with dimensions of 14.57" x 12.60" x 1.73"
- Low 40W power consumption for cost-effective operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | HRX-435 |
| Brand Name | Wisenet |
| Product Model | HRX-435 |
| Product Name | 4 Channel Pentabrid DVR |
| Product Type | Video Surveillance Station |
| Technical Information | |
| Total Number of Channels | 4 |
| Connectivity Technology | Wired |
| HD Recording | Yes |
| System Components | Digital Video Recorder |
| Video | |
| Video Formats | H.265,H.264,Motion JPEG |
| Video Signal Format | PAL,NTSC |
| Maximum Resolution | 8MP |
| Maximum Frame Rate | 30 fps |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Composite Video In | Yes |
| Composite Video Out | Yes |
| Total Number of Audio In Ports | 4 |
| Total Number of Audio Out Ports | 1 |
| Number of VGA Out | 1 |
| HDMI | Yes |
| Power Description | |
| Power Consumption | 40 W |
| Physical Characteristics | |
| Height | 1.73" (44 mm) |
| Width | 14.57" (370 mm) |
| Depth | 12.60" (320 mm) |
| DVR Weight | 5.07 lb (2300 g) |
User Manual
FAQ
How many cameras can the HRX-435 DVR support?
The Wisenet HRX-435 supports up to 4 cameras, making it suitable for small-to-mid range surveillance setups such as small businesses, offices, or residential properties. This channel count allows coverage of key areas like entrances, cash registers, or driveways without overwhelming storage or network resources.
What is the maximum video resolution this DVR can record?
This DVR records at a maximum resolution of 8MP, providing high-definition video quality that captures fine details essential for identification and evidence. The 8MP capability ensures clear footage even when zooming in on recorded scenes, enhancing overall surveillance effectiveness.
Does the HRX-435 support remote viewing and management?
Yes, the HRX-435 includes Ethernet connectivity and remote management features, allowing you to access live feeds and recorded video from any internet-connected device. This enables monitoring from smartphones, tablets, or computers, providing flexibility for offsite oversight and real-time alerts.
What video compression formats does this DVR use?
The DVR uses H.265 and H.264 video compression formats, which significantly reduce file sizes while maintaining image quality. This efficiency allows for longer recording retention on storage drives and lowers bandwidth usage during remote streaming, optimizing both storage and network performance.
What types of video outputs are available on the HRX-435?
The HRX-435 offers HDMI, VGA, and composite video outputs, supporting a range of display options from modern monitors to older screens. This flexibility facilitates easy onsite viewing and integration with existing display setups, whether for dedicated monitoring stations or temporary checkpoints.
How many audio inputs does the DVR have, and why are they important?
The DVR includes 4 audio inputs, allowing synchronized audio recording from up to 4 cameras. This feature is crucial for capturing conversations or ambient sounds alongside video, providing additional context for surveillance footage in environments like retail stores or entryways where audio evidence can be valuable.
