Wisenet ACE-6020R 2MP Analog HD Flateye Camera - White - 1080p Full HD - 82 ft Infrared Night Vision - IP67 IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera records in Full HD 1080p resolution across AHD, TVI, CVI, and CVBS analog video signal formats, offering compatibility with a range of DVR systems. The 2MP resolution and 30 fps frame rate provide smooth, detailed video suitable for security applications.
Advanced imaging features include Digital Wide Dynamic Range (D-WDR) to handle challenging lighting, Back Light Compensation (BLC), and 3D Digital Noise Reduction for cleaner footage in low-light conditions. The built-in mechanical ICR filter enables automatic day/night switching.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The ACE-6020R combines robust construction with practical surveillance features for dependable performance in various environments.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Durable Outdoor Design, Enhanced Low-Light Performance.
Durable Outdoor Design
With IP67 dust and water resistance and IK10 impact protection, this camera withstands harsh weather and physical impacts, making it suitable for outdoor installations.
- IP67 rated for dust and water ingress
- IK10 impact resistance
- Operates from -22°F to 131°F
Enhanced Low-Light Performance
Infrared night vision extends monitoring capability to 82 feet in complete darkness, while noise reduction and WDR maintain image clarity in challenging lighting.
- 82 ft infrared night vision
- 3D Digital Noise Reduction
- Digital Wide Dynamic Range
Deployment / Use Cases
The Wisenet ACE-6020R is versatile for commercial, retail, and residential security applications where reliable analog HD monitoring is required.
Its Flateye form factor and backbox mount allow for discreet ceiling or wall installation in lobbies, warehouses, parking lots, or building exteriors. The wide 81° horizontal view suits covering entry points, aisles, or outdoor yards.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Retail & Commercial Security
Monitor store entrances, cash registers, or inventory areas with clear 1080p footage for loss prevention and safety compliance.
Perimeter & Outdoor Monitoring
Deploy in weather-exposed locations thanks to IP67 and IK10 ratings, using night vision to secure fences, gates, or dark corners.
Physical Profile

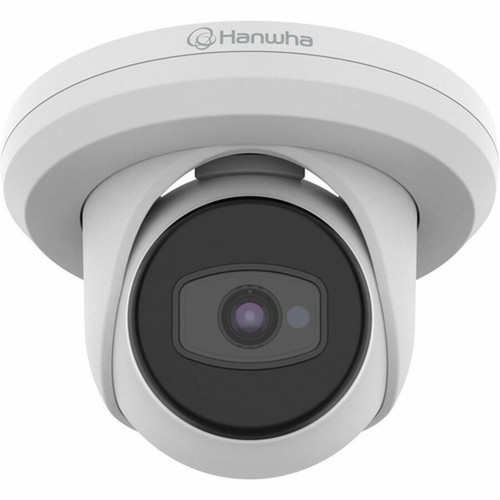

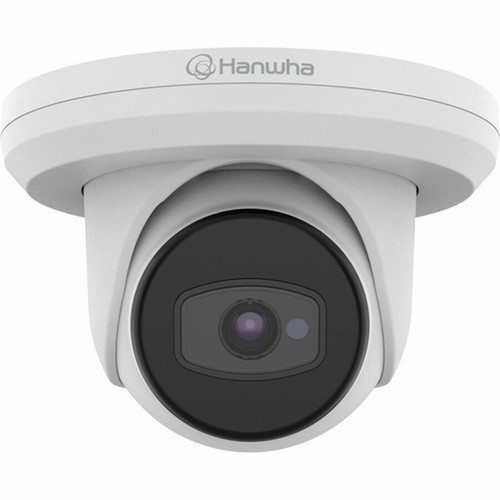

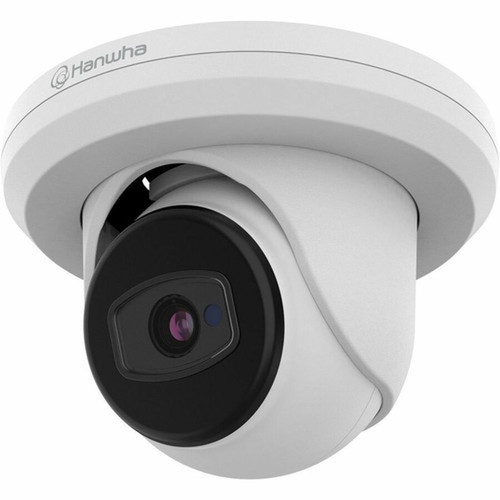

This Flateye camera features a compact white housing with a 4.72-inch diameter and weighs approximately 14.46 ounces. The backbox mount simplifies installation on ceilings or walls, while the low 3.60W power consumption reduces energy costs.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 14.46 oz (410 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 14.46 oz (410 g)
- Length
- 3.6 mm (0.14")
Highlights
- 2MP resolution with 1080p Full HD video at 30 fps
- 82 ft infrared night vision for 24/7 monitoring
- IP67 weatherproof and IK10 impact-resistant rating
- Fixed 3.6mm lens with 81° horizontal field of view
- Analog HD compatibility (AHD, TVI, CVI, CVBS)
- Digital Wide Dynamic Range and 3D noise reduction
- Low 3.60W power consumption with 12V DC input
- 5-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | ACE-6020R |
| Brand Name | Wisenet |
| Product Series | A |
| Product Model | ACE-6020R |
| Product Name | 2MP Analog HD Flateye Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 82.02 ft (25 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/3" |
| Color Supported | Color |
| Field of View | H: 81° / V: 42° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | AHD,TVI,CVI,CVBS |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 3.6 mm (0.14") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/50000 Second |
| Longest Shutter Speed | 1/30 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Power Description | |
| Maximum Power Consumption | 3.60 W |
| Input Voltage | 12 V DC |
| Power Source Type | DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Backbox Mount |
| Form Factor | Flateye |
| Diameter | 4.72" (120 mm) |
| Weight (Approximate) | 14.46 oz (410 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Day/Night,Digital Wide Dynamic Range (D-WDR),Back Light Compensation (BLC),Digital Noise Reduction,Gain Control,White Balance,3D Digital Noise Reduction,Built-in Mechanical ICR,Ingress Protection,2D Noise Reduction |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What video resolution does the Wisenet ACE-6020R support?
The ACE-6020R captures 1920 x 1080 Full HD video at up to 30 frames per second. This 2MP resolution provides clear, detailed footage suitable for identifying faces, license plates, or other critical details in security applications.
How far does the night vision reach on this camera?
Built-in infrared LEDs provide night vision up to 82.02 feet (25 meters) in complete darkness. The camera automatically switches to night mode using its mechanical ICR filter, ensuring continuous monitoring around the clock.
Is the ACE-6020R suitable for outdoor use?
Yes, with an IP67 rating for dust and water resistance and an IK10 impact protection rating, this camera is designed for outdoor installations. It operates in temperatures from -22°F to 131°F and handles humidity up to 90%.
What analog video formats does this camera support?
It is compatible with AHD, TVI, CVI, and CVBS analog HD formats, making it versatile for integration with various DVR systems. This ensures flexibility in upgrading or expanding existing analog surveillance setups.
What is the field of view of the fixed lens?
The fixed 3.6mm lens offers an 81° horizontal and 42° vertical field of view. This provides a balanced coverage area for monitoring corridors, entryways, or medium-sized rooms without distortion.
What power supply does the camera require?
The ACE-6020R uses a 12V DC power source with a maximum consumption of 3.60 watts. This low power draw makes it energy-efficient and suitable for installations where power availability or cost is a consideration.
