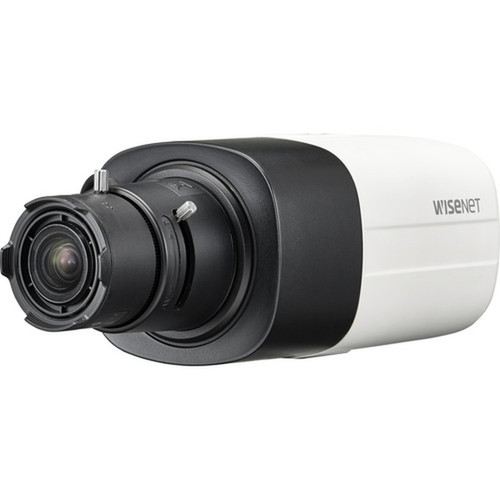

Wisenet HCB-6001 2MP Full HD Analog Surveillance Camera - Box - Ivory - 1920 x 1080 - 30 fps - CMOS
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures video at a maximum resolution of 1920x1080 with a 30 fps frame rate, utilizing a 2-megapixel CMOS sensor for detailed imaging. The analog video output supports six different formats, allowing integration with diverse recorder setups without requiring specific protocol matching.
Exposure control ranges from 1/12000 second to 1 second, accommodating varying lighting conditions. The camera operates on 12V DC or 24V AC power and features a C/CS-mount lens interface, though no lens is included, enabling customization with compatible optics.
This section brings together practical product details such as HD Recording, Recording Formats, Image Sensor Type, Color Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The HCB-6001 incorporates advanced imaging technologies that enhance surveillance effectiveness in challenging lighting environments. These features work together to deliver consistent video quality whether monitoring brightly lit areas or low-light spaces.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Advanced Imaging Features.
Advanced Imaging Features
Includes Back Light Compensation (BLC), Highlight Compensation (HLC), Wide Dynamic Range, Day/Night mode, Digital Noise Reduction, Automatic Defog, Motion Detection, Privacy Masking, Auto Gain Control, and Automatic White Balance.
- Compensates for backlight and highlight conditions
- Reduces noise and fog interference
- Detects motion and enables privacy zones
Deployment / Use Cases
This camera is ideal for indoor security applications where reliable analog HD surveillance is required. Its compact box form factor and versatile mounting options make it suitable for discreet placement in various commercial and residential settings.
Common deployment scenarios include retail stores, office lobbies, warehouse entry points, and residential entryways. The camera's environmental rating supports operation in temperature-controlled indoor spaces, while its multiple analog format compatibility ensures it can replace or augment existing surveillance infrastructure.
Small Business Security
Provides cost-effective HD surveillance for retail spaces, offices, and small commercial facilities where analog systems are already deployed or preferred.
Residential Monitoring
Offers clear 1080p video for home security applications, with features like motion detection and privacy masking for personalized monitoring setups.
Physical Profile
The HCB-6001 features a compact box design measuring 2.65" (67.20 mm) in height, 2.88" (73.10 mm) in width, and 4.88" (123.90 mm) in length, with a weight of approximately 10.12 oz (287 g). Its ivory finish blends with light-colored interiors while the box form factor allows for flexible mounting on walls, ceilings, or surfaces using compatible brackets.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.65" (67.20 mm), 2.88" (73.10 mm), 10.12 oz (287 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.88" (73.10 mm)
- Height
- 2.65" (67.20 mm)
- Weight
- 10.12 oz (287 g)
- Length
- 4.88" (123.90 mm)
Highlights
- 2-megapixel Full HD resolution (1920x1080) for clear surveillance footage
- 30 frames per second capture rate for smooth real-time monitoring
- CMOS sensor technology with lower power consumption than CCD alternatives
- Supports six analog video formats: AHD, TVI, CVI, CVBS, HD-TVI, HDCVI
- Advanced imaging features including WDR, BLC, HLC, and digital noise reduction
- Day/Night operation with automatic switching capability
- Motion detection and privacy masking for intelligent monitoring
- Compact box design with ivory finish for discreet indoor placement
- Wide operating temperature range from 14°F to 131°F (-10°C to 55°C)
- 3-year limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | HCB-6001 |
| Brand Name | Wisenet |
| Product Series | HD+ |
| Product Model | HCB-6001 |
| Product Name | 1080p Analog HD camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | AHD,TVI,CVI,CVBS,HD-TVI,HDCVI |
| Lens | |
| Lens Included | No |
| Lens Mount Type | C/CS-mount |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | No |
| Power Description | |
| Input Voltage | 12 V DC,24 V AC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | Ivory |
| Form Factor | Box |
| Height | 2.65" (67.20 mm) |
| Width | 2.88" (73.10 mm) |
| Length | 4.88" (123.90 mm) |
| Weight (Approximate) | 10.12 oz (287 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Back Light Compensation (BLC),Highlight Compensation (HLC),Wide Dynamic Range,Day/Night,Digital Noise Reduction,Automatic Defog,Motion Detection,Privacy Masking,Auto Gain Control,Automatic White Balance |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What resolution does the Wisenet HCB-6001 camera support?
The HCB-6001 captures video at 2-megapixel Full HD resolution, specifically 1920 x 1080 pixels. This provides detailed surveillance footage suitable for identifying faces, license plates, and other important details in security monitoring applications.
What analog video formats are compatible with this camera?
This camera supports six different analog video formats: AHD, TVI, CVI, CVBS, HD-TVI, and HDCVI. This broad compatibility allows the camera to work with various existing surveillance recorders and systems without requiring specific protocol matching.
Does the HCB-6001 include a lens?
No, the HCB-6001 does not include a lens. It features a standard C/CS-mount lens interface, allowing you to select and install a compatible lens based on your specific surveillance requirements such as focal length, field of view, and aperture needs.
What power requirements does this surveillance camera have?
The camera operates on either 12V DC or 24V AC power input. This dual-voltage capability provides flexibility in power source selection and compatibility with different power supply units commonly used in surveillance installations.
What imaging features help with challenging lighting conditions?
The camera includes Back Light Compensation (BLC), Highlight Compensation (HLC), Wide Dynamic Range (WDR), and Automatic Defog to handle backlit scenes, bright highlights, high-contrast environments, and foggy conditions. These features work together to maintain image quality across varying lighting situations.
What is the operating temperature range for this camera?
The HCB-6001 operates within a temperature range of 14°F to 131°F (-10°C to 55°C) and can withstand up to 90% humidity. This makes it suitable for temperature-controlled indoor environments such as offices, retail spaces, and residential areas.
What processor does this product use?
Wisenet HCB-6001 2 Megapixel Full HD Surveillance Camera - Color - Box - Ivory - 1920 x 1080 - 30 fps - CMOS (HCB-6001) is positioned around the listed processor configuration, giving buyers a clearer view of expected performance for business workloads and everyday deployment needs.
