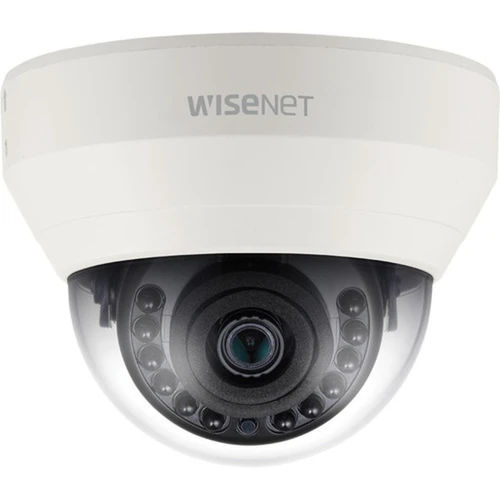

Wisenet HCD-6020R HD+ Dome Surveillance Camera - 2MP Analog IR - 1920 x 1080 - 4mm Fixed Lens - 65. 62 ft Night Vision - Ivory - Wall Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The HCD-6020R records in HD formats using a CMOS image sensor, which consumes less power than traditional CCD sensors while maintaining video quality. The fixed 4mm lens provides a consistent field of view, suitable for monitoring entryways, corridors, or retail spaces. Wired connectivity ensures stable video transmission without wireless interference.
This camera operates in day/night mode, automatically switching between color and monochrome based on lighting conditions. It includes essential surveillance features such as motion detection, privacy masking, and wide dynamic range to handle challenging light contrasts. Automatic white balance and auto gain control optimize image clarity across varying environments.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The HCD-6020R combines affordability with capable surveillance performance, making it a practical choice for small businesses, offices, or residential security upgrades. Its 2MP analog design reduces infrastructure costs compared to IP cameras while delivering clear HD footage.
Cost-Effective Monitoring
The CMOS sensor offers a lower-cost alternative to CCD sensors, with reduced power consumption and reliable HD video output. This makes the camera economical for multi-camera deployments.
- Lower sensor cost
- Reduced power draw
- HD video quality
Enhanced Low-Light Performance
With 65.62 ft night vision and day/night operation, the camera maintains visibility in dim or no-light conditions. Wide dynamic range helps balance bright and dark areas in the same scene.
- 65.62 ft IR range
- Auto day/night switching
- Wide dynamic range
Deployment / Use Cases
This dome camera is ideal for indoor environments such as retail stores, lobbies, or office hallways, where its discreet ivory dome blends with ceilings or walls. The wall-mount design allows flexible placement above doors, along corridors, or in corners to cover key areas.
For small business security, the HCD-6020R can monitor cash registers, storage rooms, or employee entrances. In residential settings, it suits garage, porch, or driveway surveillance when protected from direct weather. The analog connectivity simplifies integration with existing DVR systems, avoiding network setup overhead.
Retail & Commercial Security
Monitor sales floors, stock rooms, or entry points with clear HD video. Motion detection can trigger recordings for incident review.
- Point-of-sale oversight
- Inventory area monitoring
- After-hours security
Office & Building Management
Cover hallways, reception areas, or restricted zones. Privacy masking allows blocking sensitive areas like computer screens from recording.
- Access control verification
- Common area surveillance
- Privacy-compliant setup
Physical Profile
The dome housing measures 3.39" (86 mm) in height and 4.33" (110 mm) in diameter, with a lightweight design at approximately 227 g. The ivory finish offers a neutral appearance that complements most interior ceilings or walls. Wall-mount installation includes hardware for secure mounting, and the dome shape deters tampering while providing a wide viewing angle.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.39" (86 mm), 227 g. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 3.39" (86 mm)
- Weight
- 227 g
- Length
- 4 mm
Highlights
- 2MP analog IR dome camera with 1920x1080 HD resolution
- CMOS sensor for cost-effective, power-efficient operation
- 65.62 ft (20 m) night vision range for low-light monitoring
- Fixed 4mm lens provides consistent field of view
- Day/night operation with automatic color/monochrome switching
- Motion detection, privacy masking, and wide dynamic range features
- Wall-mount dome design in ivory for discreet installation
- Wired connectivity for reliable video transmission
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | HCD-6020R |
| Brand Name | Wisenet |
| Product Series | HD+ |
| Product Model | HCD-6020R |
| Product Name | 2MP Analog IR Dome Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 65.62 ft (20 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color,Monochrome |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm |
| Network & Communication | |
| Connectivity Technology | Wired |
| Physical Characteristics | |
| Product Color | Ivory |
| Mount Type | Wall Mount |
| Form Factor | Dome |
| Height | 3.39" (86 mm) |
| Diameter | 4.33" (110 mm) |
| Weight (Approximate) | 227 g |
| Miscellaneous | |
| Features | Day/Night,Motion Detection,Privacy Masking,Wide Dynamic Range,Automatic White Balance,Auto Gain Control,Motion Tracking |
User Manual
FAQ
What is the video resolution of the Wisenet HCD-6020R camera?
The HCD-6020R records at a maximum video resolution of 1920 x 1080, which is full HD quality. This resolution provides clear, detailed footage suitable for identifying faces, license plates, or other critical details in surveillance scenarios.
How far does the night vision reach on this camera?
The camera's night vision effectively covers distances up to 65.62 ft (20 m). This range allows monitoring of dimly lit areas such as parking lots, back alleys, or large rooms during nighttime or low-light conditions.
What type of lens does the HCD-6020R have?
It features a fixed 4mm lens, which offers a consistent field of view without adjustable zoom. This lens type is ideal for monitoring specific areas like doorways or hallways where a stable perspective is preferred.
Can this camera be used outdoors?
The HCD-6020R is primarily designed for indoor or sheltered outdoor use, such as under eaves or in covered entryways. Its dome housing provides some protection, but it is not rated for direct exposure to heavy rain or extreme weather without additional housing.
What mounting options are available?
This camera supports wall mounting, allowing installation on vertical surfaces like building exteriors or interior walls. The dome form factor enables a wide viewing angle and discreet appearance once mounted.
Does the camera include motion detection?
Yes, the HCD-6020R includes motion detection, which can trigger recordings or alerts when movement is detected in the monitored area. This feature helps conserve storage space and highlights relevant events for review.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
