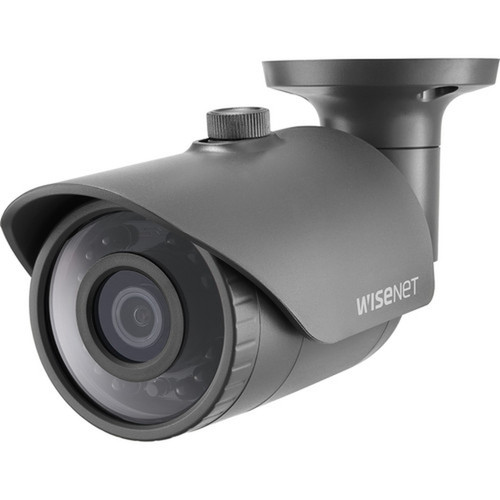

Wisenet HCO-6020R 2MP Analog HD IR Bullet Camera - Outdoor - Dark Gray - 1920 x 1080 - 30m Night Vision - Weather Resistant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures video at a maximum resolution of 1920x1080, supporting HD recording formats for detailed surveillance footage. The 2MP CMOS sensor enables high-quality imaging with color and monochrome support, adapting to different lighting conditions through its day/night functionality.
The HCO-6020R includes advanced features like motion detection, privacy masking, wide dynamic range, and defog to improve video clarity and security monitoring. With a wired connectivity setup, it integrates seamlessly into analog HD systems, though it does not include an RJ-45 network port for IP-based connections.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The HCO-6020R combines practical surveillance features with durable construction to meet the demands of outdoor security environments. Its 30m night vision capability ensures reliable monitoring in low-light conditions, while the weather-resistant design protects against rain, dust, and temperature variations.
Enhanced Video Quality
With 1920x1080 resolution and wide dynamic range, this camera delivers clear, detailed footage even in challenging lighting, reducing blind spots and improving incident review accuracy.
- 2MP CMOS sensor for sharp imaging
- Defog feature for clearer video in humid conditions
Smart Surveillance Features
Motion detection and privacy masking allow for automated alerts and customized viewing areas, optimizing storage use and enhancing privacy compliance in sensitive locations.
- Reduces false alarms with adjustable sensitivity
- Masks private areas to protect confidentiality
Deployment / Use Cases
Ideal for perimeter security, the HCO-6020R is commonly deployed in commercial properties, industrial sites, and residential areas to monitor entrances, parking lots, and outdoor assets. Its pole and backbox mount options facilitate easy installation on fences, walls, or standalone posts, providing wide-angle coverage with minimal obstruction.
In retail settings, this camera supports loss prevention by capturing high-definition video of outdoor spaces, while in educational or government facilities, it enhances safety with reliable night vision and motion-triggered recording. The analog HD compatibility makes it a cost-effective upgrade for existing surveillance systems, extending their lifespan without requiring full network overhauls.
Physical Profile
The HCO-6020R features a compact bullet design with a dark gray finish, measuring 2.31" in diameter and weighing approximately 279g. This lightweight and slim profile allows for discreet placement while maintaining durability against outdoor elements. The weather-resistant construction ensures long-term performance in varied climates, from rainy seasons to snowy conditions.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 279 g. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 279 g
- Length
- 4 mm
Highlights
- 2MP resolution with 1920x1080 HD video for clear surveillance footage
- 30m night vision range using IR technology for low-light monitoring
- Weather-resistant bullet design suitable for outdoor installations
- Fixed 4mm lens provides consistent field of view
- CMOS sensor offers power efficiency and cost-effective operation
- Motion detection and privacy masking for smart security features
- Pole and backbox mount options for flexible installation
- Wide dynamic range and defog enhance video clarity in challenging conditions
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | HCO-6020R |
| Brand Name | Wisenet |
| Product Series | HD+ |
| Product Model | HCO-6020R |
| Product Name | 2MP Analog HD IR Bullet |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 98.43 ft (30 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color,Monochrome |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm |
| Network & Communication | |
| Connectivity Technology | Wired |
| Interfaces/Ports | |
| Network (RJ-45) | No |
| Physical Characteristics | |
| Product Color | Dark Gray |
| Mount Type | Pole Mount,Backbox Mount |
| Form Factor | Bullet |
| Durability | Weather Resistant |
| Diameter | 2.31" (58.60 mm) |
| Weight (Approximate) | 279 g |
| Miscellaneous | |
| Features | Motion Detection,Privacy Masking,Wide Dynamic Range,Defog,Day/Night |
| Indoor/Outdoor | Outdoor |
User Manual
FAQ
What is the resolution of the Wisenet HCO-6020R camera?
The HCO-6020R captures video at a maximum resolution of 1920x1080, which is 2MP (megapixels). This HD resolution provides detailed footage for effective surveillance, allowing clear identification of subjects and activities in monitored areas.
How far does the night vision reach on this camera?
This camera offers night vision up to 98.43 feet (30 meters). It uses IR technology to illuminate low-light environments, ensuring reliable monitoring during nighttime or in dimly lit outdoor spaces without requiring additional lighting.
Is the HCO-6020R suitable for outdoor use?
Yes, the HCO-6020R is designed for outdoor deployment with a weather-resistant construction. It can withstand environmental factors like rain, dust, and temperature fluctuations, making it ideal for perimeter security, parking lots, and other external applications.
What type of lens does this camera have?
It features a fixed lens with a 4mm focal length. This lens type provides a consistent field of view without adjustable zoom, which is common in bullet cameras for stable, wide-angle coverage in surveillance setups.
Does the HCO-6020R support network or PoE connectivity?
No, this camera uses wired analog HD connectivity and does not include an RJ-45 network port or PoE support. It is designed for analog surveillance systems, requiring separate power and video cables for installation.
What mounting options are available for this bullet camera?
The HCO-6020R supports pole mount and backbox mount installations. These options allow flexible placement on posts, walls, or enclosures, facilitating easy integration into various security infrastructures for optimal viewing angles.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
