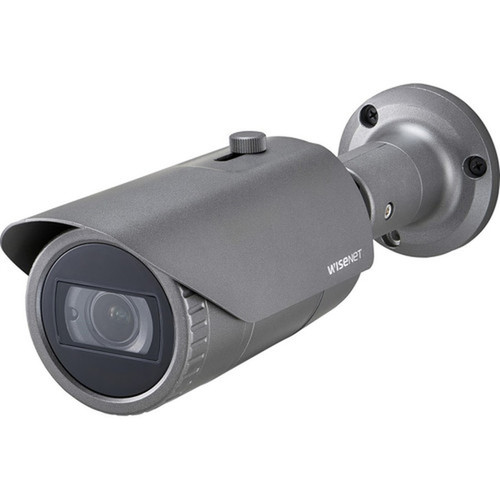

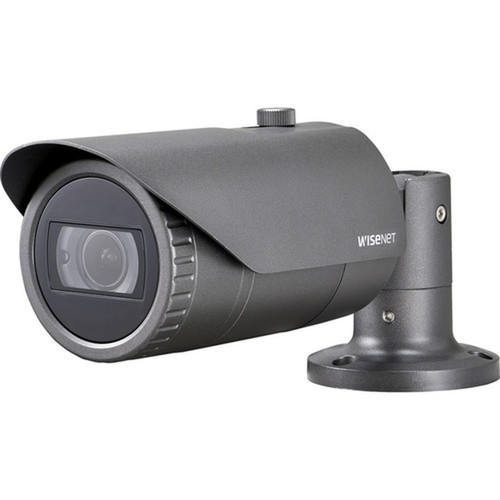

Wisenet HCO-6080R 2MP Analog HD IR Bullet Camera - Full HD 1920 x 1080 - 98 ft Night Vision - Vandal Resistant - Dark Gray
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This surveillance camera captures video at a maximum resolution of 1920x1080, utilizing a 2-megapixel CMOS sensor for efficient power consumption and high-definition output. The varifocal lens system provides a field of view ranging from 110.2° horizontally in wide mode down to 32° in telephoto, with vertical and diagonal adjustments accordingly. A maximum aperture of f/1.6 ensures strong low-light performance, while shutter speeds from 1/12000 second to 1 second accommodate varying lighting conditions.
The HCO-6080R incorporates built-in infrared LEDs for night vision up to 98 feet (29.87 meters), enabling continuous monitoring around the clock. It features advanced imaging technologies such as wide dynamic range, digital noise reduction, defog, and backlight compensation to maintain clarity in challenging environments. The camera operates on 12V DC or 24V AC power and uses wired connectivity for reliable data transmission.
Key Product Advantages
The Wisenet HCO-6080R combines high-definition imaging with rugged construction to deliver a surveillance solution that performs reliably in diverse conditions. Its vandal-resistant design and IP66 rating protect against dust, water jets, and physical impacts, making it suitable for high-risk or exposed locations. The camera's day/night functionality with infrared illumination ensures consistent monitoring regardless of lighting, while features like motion detection and privacy masking enhance security customization.
Durable Construction
Built to withstand harsh environments with an IK10 impact rating and IP66 ingress protection, ensuring longevity and resistance to vandalism, weather, and dust.
- Vandal Resistant
- IP66 Rated
- IK10 Impact Protection
Advanced Imaging Features
Incorporates wide dynamic range, digital noise reduction, defog, and automatic white balance to produce clear, balanced video in varying light and weather conditions.
- Wide Dynamic Range
- Digital Noise Reduction
- Automatic White Balance
Deployment / Use Cases
This camera is ideal for perimeter security, entry points, parking lots, and retail spaces where reliable HD surveillance is required. Its pole and box mounting options facilitate installation on walls, ceilings, or standalone structures, providing flexibility for both new setups and system expansions. The analog compatibility with AHD, TVI, CVI, and CVBS formats allows integration into existing infrastructure without requiring complete overhauls.
For small businesses, the HCO-6080R offers a cost-effective solution to monitor storefronts, inventory areas, or back offices with clear Full HD video. In residential settings, it can secure driveways, gardens, or home exteriors, leveraging its 98-foot night vision for comprehensive coverage after dark. The camera's motion detection capability can trigger alerts or recordings, reducing storage needs while focusing on relevant activity.
Commercial Security
Deploy at retail stores, offices, or warehouses to monitor entrances, aisles, and storage areas with high-definition clarity and vandal-resistant durability.
- Retail Surveillance
- Office Monitoring
- Warehouse Security
Residential Protection
Install around homes to watch over driveways, yards, and entry points, utilizing night vision and weather resistance for 24/7 peace of mind.
- Home Perimeter
- Driveway Monitoring
- Garden Surveillance
Physical Profile
The HCO-6080R features a bullet form factor with a dark gray finish, measuring 10.23 inches in height and 3.07 inches in diameter. Weighing approximately 2.09 pounds, it is designed for stable mounting on poles or boxes, with a compact profile that minimizes visual intrusion. The camera's construction supports operation in temperatures from -22°F to 131°F and up to 90% humidity, ensuring performance in extreme climates.
- Height
- 10.23" (259.80 mm)
- Weight
- 2.09 lb (948 g)
- Length
- 3.2 mm (0.13")
Highlights
- 2-megapixel CMOS sensor for Full HD 1920x1080 video recording
- 98-foot infrared night vision for 24/7 surveillance capability
- Varifocal lens with 3.2 mm to 10 mm focal length and 3.1x optical zoom
- Vandal-resistant design with IP66 rating and IK10 impact protection
- Supports AHD, TVI, CVI, and CVBS analog video formats
- Wide dynamic range, digital noise reduction, and defog features
- Pole and box mounting options for flexible installation
- Operates on 12V DC or 24V AC power with wired connectivity
- Motion detection and privacy masking for enhanced security control
- 3-year limited warranty for reliable long-term use
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | HCO-6080R |
| Brand Name | Wisenet |
| Product Model | HCO-6080R |
| Product Name | 2MP Analog HD IR Bullet |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 98 ft (29.87 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H : 110.2 ?(Wide) ~ 32 ?(Tele) / V : 55.4 ?(Wide) ~ 18 ?(Tele) / D : 128.4 ?(Wide) ~ 36.6 ?(Tele) |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Analog Video Signal Format | AHD,TVI,CVI,CVBS |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.2 mm (0.13") |
| Maximum Focal Length | 10 mm (0.39") |
| Lens Included | Yes |
| Lens Mount Type | Board Mount |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 3.1x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | No |
| Power Description | |
| Input Voltage | 12 V DC,24 V AC |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Dark Gray |
| Mount Type | Pole Mount,Box Mount |
| Form Factor | Bullet |
| Durability | Vandal Resistant |
| Height | 10.23" (259.80 mm) |
| Diameter | 3.07" (78 mm) |
| Weight (Approximate) | 2.09 lb (948 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Day/Night,Wide Dynamic Range,Motion Detection,Built-in IR LED,Digital Noise Reduction,Defog,Privacy Masking,Automatic White Balance,Ingress Protection,Back Light Compensation (BLC),Highlight Compensation (HLC) |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum video resolution of the Wisenet HCO-6080R camera?
The Wisenet HCO-6080R captures video at a maximum resolution of 1920 x 1080, which is Full HD. This provides clear, detailed imagery suitable for identifying faces, license plates, and other critical details in surveillance footage, ensuring effective monitoring for security purposes.
How far does the night vision reach on this camera?
This camera features built-in infrared LEDs that provide night vision up to 98 feet (29.87 meters). The infrared illumination allows for continuous monitoring in low-light or complete darkness, making it reliable for 24/7 surveillance in outdoor or dimly lit indoor environments.
What types of mounts are supported by the HCO-6080R?
The HCO-6080R supports both pole mount and box mount installations. This flexibility allows it to be securely attached to walls, ceilings, or standalone poles, making it adaptable for various surveillance setups in commercial, residential, or industrial settings.
Is this camera resistant to vandalism and weather?
Yes, the HCO-6080R is vandal-resistant with an IK10 impact protection rating and an IP66 ingress protection rating. This means it can withstand physical impacts, dust, and water jets, ensuring durability and reliable performance in harsh or exposed locations.
What analog video formats does the camera support?
The camera supports multiple analog video formats including AHD, TVI, CVI, and CVBS. This broad compatibility allows it to integrate seamlessly with a wide range of existing and new surveillance systems, providing versatility for upgrades or expansions without requiring complete system replacements.
What is the warranty period for the Wisenet HCO-6080R?
The Wisenet HCO-6080R comes with a 3-year limited warranty. This warranty covers defects in materials and workmanship, offering peace of mind and support for long-term reliability in your surveillance investments.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
