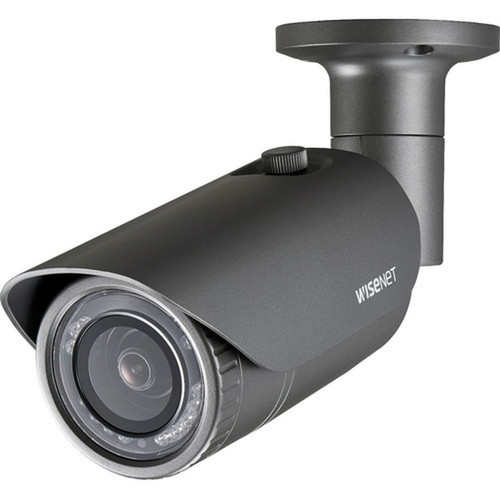

Wisenet HCO-7010RA HD+ 4MP Bullet Surveillance Camera - 2560 x 1440 - 2. 8mm Fixed Lens - 65. 62 ft Night Vision - Dark Gray
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This surveillance camera captures video at a maximum resolution of 2560x1440, equivalent to 4 megapixels, delivering detailed imagery for accurate monitoring. The fixed 2.8mm lens provides a consistent field of view, eliminating the need for manual adjustments while maintaining focus on critical areas.
The camera supports both color and monochrome imaging, with an integrated infrared system enabling night vision up to 65.62 feet (20 meters). Wired connectivity ensures stable video transmission, and the camera includes essential imaging features such as auto gain control, automatic white balance, back light compensation, day/night switching, and privacy masking for flexible deployment.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The HCO-7010RA combines high-resolution imaging with robust physical design to meet the demands of modern security systems. Its 4MP sensor captures finer details than standard HD cameras, enhancing identification capabilities in surveillance footage.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Enhanced Night Coverage, Durable Construction.
Enhanced Night Coverage
With infrared night vision extending to 65.62 feet, the camera maintains visibility in low-light conditions, ensuring continuous monitoring around the clock.
- Infrared illumination
- 20-meter range
- Day/night auto-switching
Durable Construction
The weather-resistant and vandal-resistant housing protects the camera from environmental elements and physical tampering, supporting long-term reliability in exposed locations.
- IP-rated durability
- Dark gray finish
- Multiple mounting options
Deployment / Use Cases
This bullet camera is ideal for perimeter security, entryway monitoring, and outdoor surveillance where clear, high-resolution video is essential. Its fixed lens and compact form factor make it straightforward to install on walls, poles, or backboxes, providing focused coverage of specific zones.
Common applications include monitoring driveways, parking lots, building exteriors, and retail storefronts. The camera's imaging features, such as back light compensation and privacy masking, allow customization for challenging lighting conditions or sensitive areas, ensuring effective surveillance across various scenarios.
Residential Security
Homeowners can use this camera to monitor property boundaries, garages, and backyard areas, leveraging its night vision for 24/7 protection.
- Perimeter monitoring
- Low-light performance
- Vandal resistance
Small Business Surveillance
Retail shops, offices, and warehouses benefit from the camera's high-resolution output for identifying individuals and activities, supporting loss prevention and safety protocols.
- Entryway coverage
- Detailed footage
- Weatherproof design
Physical Profile
The camera features a bullet form factor with a width of 9.69 inches (246 mm) and a diameter of 2.76 inches (70 mm), presenting a low-profile appearance that blends into installation environments. Weighing approximately 1.48 pounds (670 grams), it is lightweight yet sturdy, facilitating secure mounting on various surfaces.
Its dark gray color provides a discreet aesthetic, while the included mounting options—board-in type, pole mount, and backbox mount—offer flexibility for different architectural setups. The durable construction ensures reliable operation in diverse weather conditions, from rain to extreme temperatures.
- Width
- 9.69" (246 mm)
- Weight
- 1.48 lb (670 g)
- Length
- 2.8 mm (0.11")
Highlights
- 4MP resolution delivers 2560x1440 video for detailed surveillance footage
- Fixed 2.8mm lens provides consistent field of view without adjustment
- Night vision extends to 65.62 feet (20 meters) with infrared illumination
- Weather-resistant and vandal-resistant housing for outdoor durability
- Supports color and monochrome imaging with day/night auto-switching
- Includes imaging features: auto gain control, white balance, back light compensation
- Multiple mounting options: board-in, pole, and backbox mounts
- Wired connectivity ensures stable video transmission
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | HCO-7010RA |
| Brand Name | Wisenet |
| Product Series | HD+ |
| Product Model | HCO-7010R |
| Product Name | HD+ 4MP Bullet Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 65.62 ft (20 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color,Monochrome |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Maximum Video Resolution | 2560 x 1440 |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Network & Communication | |
| Connectivity Technology | Wired |
| Interfaces/Ports | |
| Network (RJ-45) | No |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Dark Gray |
| Mount Type | Board-in Type,Pole Mount,Backbox Mount |
| Form Factor | Bullet |
| Durability | Weather Resistant,Vandal Resistant |
| Width | 9.69" (246 mm) |
| Diameter | 2.76" (70 mm) |
| Weight (Approximate) | 1.48 lb (670 g) |
| Miscellaneous | |
| Features | Auto Gain Control,Automatic White Balance,Back Light Compensation (BLC),Day/Night,Privacy Masking |
User Manual
FAQ
What is the maximum video resolution of the Wisenet HCO-7010RA camera?
The camera captures video at a maximum resolution of 2560 x 1440 pixels, which is equivalent to 4 megapixels. This high resolution provides clear, detailed imagery for effective surveillance, allowing for better identification of subjects and activities in monitored areas.
How far does the night vision reach on this surveillance camera?
The night vision capability extends up to 65.62 feet (20 meters), using infrared illumination to maintain visibility in low-light or no-light conditions. This range ensures reliable monitoring during nighttime hours, making it suitable for outdoor security applications.
What type of lens does the HCO-7010RA camera have?
It features a fixed lens with a maximum focal length of 2.8 mm. This lens type provides a consistent field of view without manual adjustments, offering reliable coverage for focused surveillance zones such as entryways or perimeters.
Is this camera suitable for outdoor installation?
Yes, the camera is designed for outdoor use with weather-resistant and vandal-resistant construction. Its durable housing protects against environmental elements like rain and dust, and it supports multiple mounting options for secure installation in exposed locations.
What imaging features are included with this camera?
The camera includes several imaging features to enhance video quality: auto gain control adjusts brightness, automatic white balance corrects color tones, back light compensation manages high-contrast lighting, day/night switching optimizes for light conditions, and privacy masking allows blocking of specific areas in the frame.
What are the mounting options for the HCO-7010RA bullet camera?
It supports board-in type, pole mount, and backbox mount options, providing flexibility for various installation scenarios. These mounting methods enable secure attachment to walls, posts, or enclosures, making it adaptable to different architectural setups for optimal surveillance coverage.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
