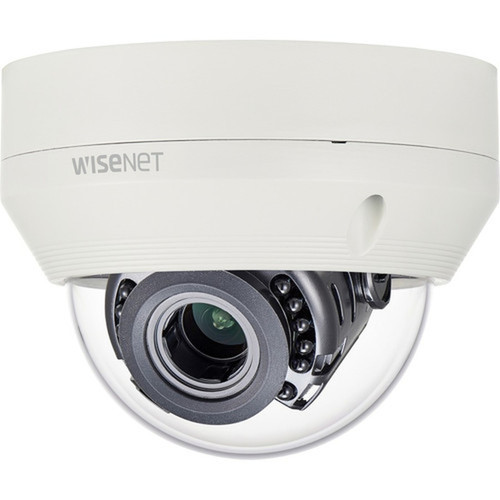

Wisenet HCV-6080R 2MP Analog HD IR Outdoor Dome Camera - Full HD 1080p - 98 ft Night Vision - Varifocal Lens - IP66 IK10 - Ivory
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera supports multiple analog video formats including AHD, TVI, CVI, and CVBS, offering compatibility with various DVR systems. The varifocal lens ranges from 3.2 mm to 10 mm focal length with a maximum aperture of f/1.6, enabling sharp focus and low-light performance. Exposure control is handled by a shutter speed range from 1/12000 second to 1 second, suitable for capturing fast-moving objects or adjusting to bright scenes.
Connectivity is wired, with power input supporting 12 V DC or 24 V AC for flexible installation. The camera includes advanced imaging features such as defog, privacy masking, automatic white balance, back light compensation, and highlight compensation to maintain video clarity across challenging conditions.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The HCV-6080R combines high-definition video, robust construction, and versatile mounting to meet demanding surveillance needs. Its analog HD format ensures straightforward integration with existing systems, while the dome design deters tampering and blends into commercial or residential settings.
Superior Low-Light Performance
Infrared night vision extends monitoring capability to 98 feet, and the f/1.6 aperture lens captures more light for clearer images in dim environments.
- Built-in IR LEDs
- Day/Night mode
- Digital noise reduction
Environmental Resilience
Rated IP66 for dust and water resistance and IK10 for impact protection, this camera withstands outdoor elements and physical interference.
- Weather-resistant housing
- Wide temperature range
- 90% humidity tolerance
Deployment / Use Cases
Ideal for perimeter security, parking lots, retail stores, and industrial sites, the HCV-6080R provides continuous monitoring with reliable video quality. Its multiple mount options—including ceiling, wall, pipe, pole, and box—allow installation in diverse locations such as building corners, under eaves, or on poles.
Use this camera for applications requiring clear identification of subjects, motion-triggered recording, or coverage of wide areas with adjustable zoom. The privacy masking feature enables blocking of sensitive zones within the frame, making it suitable for areas where certain views need restriction.
Commercial Security
Monitor entrances, loading docks, or inventory areas with Full HD video and vandal-resistant design to deter theft and ensure safety.
Outdoor Surveillance
Deploy in weather-exposed locations like parking garages or building exteriors, leveraging IP66 rating and night vision for 24/7 coverage.
Physical Profile
The dome measures 4.18 inches in height and 5.39 inches in diameter, with a weight of 1.60 pounds, making it compact yet sturdy for fixed installations. The ivory color offers a neutral appearance that complements most architectural styles. Mounting hardware is designed for secure attachment to various surfaces, ensuring stable positioning for optimal viewing angles.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4.18" (106.10 mm), 1.60 lb (725 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 4.18" (106.10 mm)
- Weight
- 1.60 lb (725 g)
- Length
- 3.2 mm (0.13")
Highlights
- 2-megapixel CMOS sensor for Full HD 1080p video recording
- 98-foot infrared night vision with built-in IR LEDs
- Varifocal lens with 3.1x optical zoom and 3.2-10 mm focal range
- IP66 weatherproof and IK10 vandal-resistant dome housing
- Supports AHD, TVI, CVI, and CVBS analog video formats
- Wide operating temperature range from -22°F to 131°F
- Multiple mounting options: pipe, ceiling, wall, pole, box
- Features include motion detection, privacy masking, and wide dynamic range
- 3-year limited warranty for long-term reliability
- Low-power consumption design for cost-effective operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | HCV-6080R |
| Brand Name | Wisenet |
| Product Model | HCV-6080R |
| Product Name | 2MP Analog HD IR Outdoor Dome |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 98 ft (29.87 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H : 110.2 ?(Wide) ~ 32 ?(Tele) / V : 55.4 ?(Wide) ~ 18 ?(Tele) / D : 128.4 ?(Wide) ~ 36.6 ?(Tele) |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Analog Video Signal Format | AHD,TVI,CVI,CVBS |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.2 mm (0.13") |
| Maximum Focal Length | 10 mm (0.39") |
| Lens Included | Yes |
| Lens Mount Type | Board Mount |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 3.1x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | No |
| Power Description | |
| Input Voltage | 12 V DC,24 V AC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | Ivory |
| Mount Type | Pipe Mount,Ceiling Mount,Wall Mount,Pole Mount,Box Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant,Weather Resistant |
| Height | 4.18" (106.10 mm) |
| Diameter | 5.39" (137 mm) |
| Weight (Approximate) | 1.60 lb (725 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Day/Night,Wide Dynamic Range,Motion Detection,Built-in IR LED,Digital Noise Reduction,Defog,Privacy Masking,Automatic White Balance,Ingress Protection,Back Light Compensation (BLC),Highlight Compensation (HLC) |
| Indoor/Outdoor | Indoor/Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the video resolution of the Wisenet HCV-6080R camera?
The camera delivers Full HD video at 1920 x 1080 resolution with a 2-megapixel CMOS sensor. This provides clear, detailed footage suitable for identifying subjects and monitoring activities in surveillance applications.
How far does the night vision reach on this camera?
Infrared night vision extends up to 98 feet (29.87 meters), enabling reliable monitoring in low-light or dark conditions. Built-in IR LEDs automatically activate to illuminate the scene without visible light.
Is this camera suitable for outdoor use?
Yes, it is rated IP66 for dust and water resistance and IK10 for impact protection, making it durable for indoor and outdoor environments. It operates in temperatures from -22°F to 131°F and handles up to 90% humidity.
What types of mounts are supported?
The camera supports pipe, ceiling, wall, pole, and box mounts, offering flexibility for installation in various locations. This versatility allows it to be positioned optimally for coverage angles and security needs.
Does the camera include a lens, and what are its specifications?
Yes, a varifocal lens is included with a 3.2 mm to 10 mm focal length range and 3.1x optical zoom. It has a maximum aperture of f/1.6 for low-light performance and is board-mounted for stability.
What video formats does this analog camera support?
It supports AHD, TVI, CVI, and CVBS analog video formats, ensuring compatibility with a wide range of DVR systems. This makes it easy to integrate into existing surveillance setups or new installations.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
