Wisenet PNM-C34404RQPZ 34MP Outdoor 4K Dome Network Camera - White - 656 ft IR Night Vision - H. 265/H. 264/MJPEG
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the PNM-C34404RQPZ is a sophisticated imaging architecture featuring four 1/2.8" CMOS sensors that collectively produce 34-megapixel resolution. This multi-sensor design enables the camera to capture wide-area coverage without compromising image detail, supporting real-time monitoring at 3840 x 2160 resolution with a maximum frame rate of 60 frames per second.
The camera employs advanced video compression technologies including H.265, H.264, and MJPEG formats, optimizing bandwidth usage while maintaining video quality. Intelligent features such as Wide Dynamic Range (WDR), Back Light Compensation (BLC), and Digital Noise Reduction ensure consistent image clarity in challenging lighting scenarios with high contrast or low-light conditions.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This Wisenet dome camera distinguishes itself through several critical advantages for professional surveillance deployments. The combination of ultra-high 34MP resolution with a 4-sensor imaging system provides unparalleled detail capture across wide monitoring areas, reducing the number of cameras needed for comprehensive coverage while maintaining forensic-grade video quality.
Advanced Analytics Capabilities
Integrated AI analytics enable intelligent detection features including vehicle recognition, motion detection, and alarm triggering, transforming raw video into actionable security intelligence.
- Vehicle Detection
- Motion Detection
- Alarm Triggering
- AI Analytics
Robust Environmental Protection
With IP66 waterproof and IK10 impact-resistant ratings, this camera withstands extreme weather conditions and physical tampering, ensuring uninterrupted operation in challenging outdoor installations.
- IP66 Weatherproof
- IK10 Vandal Resistance
- -40°F to 122°F Operating Range
Efficient Power and Connectivity
HPoE (High Power over Ethernet) support delivers both data and power through a single cable up to 64 watts, simplifying installation while supporting the camera's high-performance imaging system.
- Single-Cable HPoE
- Gigabit Ethernet
- 64W Maximum Consumption
Deployment / Use Cases
The PNM-C34404RQPZ is ideally suited for perimeter security applications where detailed identification at distance is paramount. Its 656-foot infrared night vision capability makes it particularly effective for monitoring large outdoor spaces during nighttime hours, while the 4K resolution ensures license plates, facial features, and other critical details remain clearly visible even when digitally zoomed during post-incident review.
Common deployment scenarios include transportation hubs, industrial facilities, educational campuses, and commercial properties requiring comprehensive outdoor surveillance. The dome form factor with hanging mount options facilitates discreet installation on ceilings or under eaves, while the white color blends with most architectural environments. The camera's support for numerous network protocols including IPv4/IPv6, RTSP, and ONVIF compatibility ensures seamless integration with most VMS and NVR systems.
Physical Profile

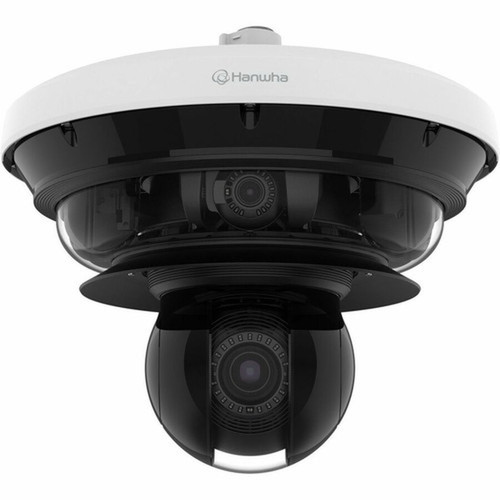

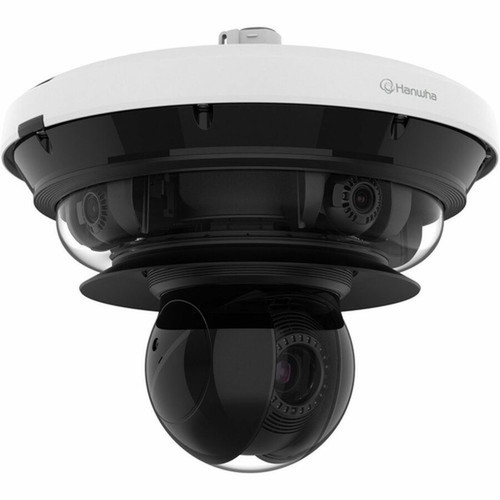

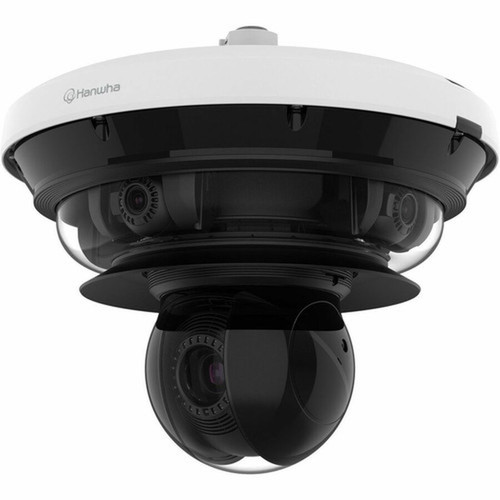

The camera features a substantial white dome housing measuring 14.95 inches (379.80 mm) in diameter with a weight of approximately 17.42 pounds (7900 grams), providing a stable platform that resists wind movement and tampering. The hanging mount design allows for flexible ceiling or eave installation, while the varifocal lens system with 9° to 65° tilt adjustment enables precise field-of-view positioning during setup. The dome's smoked finish helps conceal the camera's direction while protecting the lens from environmental elements.
- Weight
- 17.42 lb (7900 g)
- Length
- 3.3 mm (0.13")
Highlights
- 34-megapixel resolution with four CMOS sensors for exceptional detail capture
- 4K Ultra HD video at 60 fps for smooth, detailed surveillance footage
- 656-foot (200-meter) infrared night vision for 24/7 monitoring capability
- IP66 weatherproof and IK10 impact-resistant ratings for harsh environments
- HPoE (High Power over Ethernet) support for single-cable installation
- Advanced AI analytics including vehicle detection and motion triggering
- Wide 109° horizontal field of view for comprehensive area coverage
- Varifocal lens with 1.7x and 40x optical zoom options
- Operating temperature range from -40°F to 122°F (-40°C to 50°C)
- 5-year limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | PNM-C34404RQPZ |
| Brand Name | Wisenet |
| Product Series | P |
| Product Model | PNM-C34404RQPZ |
| Product Name | P PNM-C34404RQPZ Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Night Vision | Yes |
| Night Vision Distance | 656.17 ft (200 m) |
| Night Vision Type | Infrared |
| Camera Iris | Fixed,Auto |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Tilt | 9° to 65° |
| Field of View | H: 109°/ V: 55° |
| Effective Camera Resolution | 34 Megapixel |
| Number of Sensors | 4 |
| Video | |
| Video Formats | H.264,H.265,MJPEG |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.3 mm (0.13") |
| Maximum Focal Length | 5.7 mm (0.22") |
| Minimum Focal Length (Lens 2) | 0.17" (4.25 mm) |
| Maximum Focal Length (Lens 2) | 6.69" (170 mm) |
| Lens Included | Yes |
| Minimum Aperture | f/1.9 |
| Maximum Aperture | f/1.5 |
| Optical Zoom | 1.7x |
| Optical Zoom (Lens 2) | 40x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | IPv4,IPv6,TCP/IP,UDP/IP,RTP/UDP,RTP/TCP,RTSP,RTCP,NTP,HTTP,HTTPS,SSL/TLS,DHCP,FTP,SMTP,ICMP,IGMP,SNMPv1/v2c/v3 (MIB2),ARP,DNS,DDNS,QoS,UPnP,Bonjour,LLDP,SRTP,MQTT |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 64 W |
| Power Source Type | HPoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Hanging Mount |
| Form Factor | Dome |
| Diameter | 14.95" (379.80 mm) |
| Weight (Approximate) | 17.42 lb (7900 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Day/Night,Back Light Compensation (BLC),Wide Dynamic Range,Digital Noise Reduction,Motion Detection,Gain Control,White Balance,AI Analytics,Vehicle Detection,Alarm Triggering |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Country of Origin | Korea |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the effective resolution of this Wisenet camera?
The PNM-C34404RQPZ delivers 34-megapixel effective resolution through its four-sensor imaging system. This ultra-high resolution enables detailed capture of wide areas, making it suitable for applications requiring facial recognition, license plate identification, or forensic review where fine details are critical. The multi-sensor design maintains image quality across the entire field of view without the distortion sometimes associated with single-sensor wide-angle cameras.
How far does the night vision reach on this outdoor camera?
This camera features infrared illuminators that provide clear night vision up to 656.17 feet (200 meters). The infrared technology enables the camera to capture usable video in complete darkness, maintaining 24/7 surveillance capability regardless of ambient lighting conditions. This extended range makes the camera particularly effective for perimeter security, large parking areas, and other outdoor spaces where lighting may be limited or inconsistent.
What type of power does this network camera require?
The camera supports HPoE (High Power over Ethernet), which delivers both data and up to 64 watts of power through a single Ethernet cable. This simplifies installation by eliminating the need for separate power wiring near the camera location. The 64-watt maximum power consumption supports the camera's high-performance imaging system, infrared illuminators, and heating elements for operation in extreme cold temperatures down to -40°F.
Is this camera suitable for outdoor installation in harsh weather?
Yes, the PNM-C34404RQPZ is specifically designed for outdoor deployment with IP66 ingress protection rating (completely dust-tight and protected against powerful water jets) and IK10 impact resistance (withstands 20 joules of impact energy). It operates reliably in temperatures ranging from -40°F to 122°F (-40°C to 50°C) and up to 95% humidity, making it suitable for installation in virtually any climate or environmental condition.
What video compression formats does this camera support?
This camera supports H.265, H.264, and MJPEG video compression formats. H.265 provides approximately 50% better compression efficiency than H.264, reducing bandwidth and storage requirements while maintaining video quality. MJPEG offers individual frame compression for applications requiring high-quality still images. The camera can stream in multiple formats simultaneously, allowing different clients to receive video optimized for their specific needs and bandwidth constraints.
What mounting options are available for this dome camera?
The camera is designed for hanging mount installation, typically on ceilings or under eaves. The dome housing measures 14.95 inches (379.80 mm) in diameter and weighs approximately 17.42 pounds (7900 grams), providing a stable platform that resists movement from wind or vibration. The varifocal lens system includes tilt adjustment from 9° to 65°, allowing installers to precisely position the field of view during setup without physically moving the entire camera housing.
