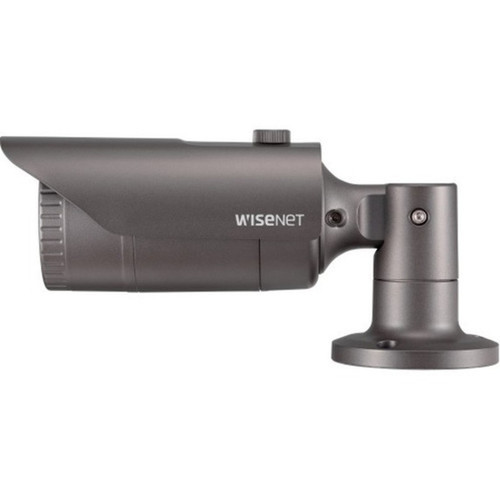

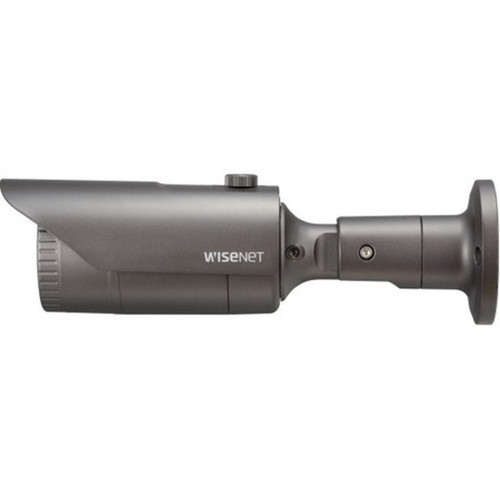

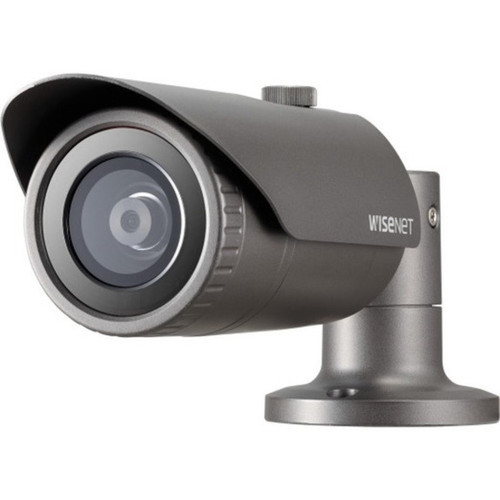

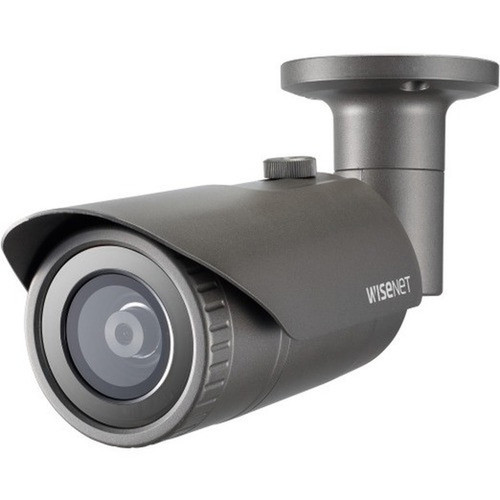

Wisenet QNO-6012R1 2MP IR Bullet Camera - Outdoor Full HD Network Camera - Dark Gray - 65. 62 ft (20 m) Infrared Night Vision - IP66 IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the QNO-6012R1 is a CMOS image sensor that supports 2-megapixel resolution and records in multiple video formats including H.265, H.264, and MJPEG for efficient bandwidth and storage management. The camera features advanced imaging technologies such as Wide Dynamic Range (WDR), Back Light Compensation (BLC), Digital Noise Reduction (DNR), and Automatic White Balance to maintain image quality across varying lighting conditions.
Network connectivity is provided through a wired RJ-45 Ethernet port, supporting remote management capabilities for centralized surveillance system control. Local storage is available via memory card, offering flexible recording options alongside network video recorder (NVR) integration.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The QNO-6012R1 combines robust construction with advanced surveillance features to deliver reliable performance in outdoor environments where durability and image clarity are paramount.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Enhanced Low-Light Performance, Intelligent Video Analytics.
Enhanced Low-Light Performance
Built-in infrared LEDs provide illumination up to 65.62 feet (20 meters), ensuring continuous surveillance capability during nighttime hours without requiring external lighting.
- Infrared night vision
- Day/Night operation
- Built-in IR LED
Intelligent Video Analytics
Integrated motion detection and privacy masking features allow for customizable security zones and automated alerting, reducing false alarms and focusing monitoring efforts.
- Motion Detection
- Privacy Masking
- Remote Management
Deployment / Use Cases
This camera is specifically designed for perimeter security, parking lot monitoring, building exteriors, and other outdoor areas requiring 24/7 surveillance. Its pole and backbox mounting options provide installation flexibility for various architectural environments.
The QNO-6012R1 integrates seamlessly with Wisenet and third-party surveillance systems, making it suitable for both new installations and upgrades to existing security infrastructure. Commercial properties, industrial facilities, educational campuses, and retail establishments benefit from its combination of high-resolution imaging and environmental durability.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The bullet-style form factor measures 9.69 inches in height with a 2.76-inch diameter, presenting a discreet yet visible deterrent presence. Weighing approximately 1.54 pounds, the camera maintains stability in various mounting configurations while remaining manageable for installation. The dark gray finish blends with most architectural exteriors while providing UV resistance for long-term outdoor exposure.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 9.69" (246 mm), 2.76" (70 mm), 1.54 lb (700 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.76" (70 mm)
- Height
- 9.69" (246 mm)
- Weight
- 1.54 lb (700 g)
- Length
- 2.8 mm (0.11")
Highlights
- 2-megapixel CMOS sensor delivers Full HD 1080p video at 30 fps
- Infrared night vision extends up to 65.62 feet (20 meters) in complete darkness
- IP66 weatherproof rating and IK10 impact resistance for outdoor durability
- Wide Dynamic Range (WDR) maintains image quality in high-contrast lighting
- Multiple video formats including H.265, H.264, and MJPEG for storage efficiency
- Motion detection and privacy masking for intelligent surveillance
- Pole and backbox mounting options for flexible installation
- Remote management capability for centralized system control
- Operating temperature range from -22°F to 131°F (-30°C to 55°C)
- 3-year limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | QNO-6012R1 |
| Brand Name | Wisenet |
| Product Series | Q |
| Product Model | QNO-6012R1 |
| Product Name | 2MP IR Bullet Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft (20 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H: 113.7 / V: 61.5° / D: 134.5° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | MJPEG,H.265,H.264,H.265H,H.265M,H.264H,H.264M |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Maximum Aperture | f/2 |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Dark Gray |
| Mount Type | Backbox Mount,Pole Mount |
| Form Factor | Bullet |
| Height | 9.69" (246 mm) |
| Width | 2.76" (70 mm) |
| Diameter | 2.76" (70 mm) |
| Weight (Approximate) | 1.54 lb (700 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Day/Night,Built-in IR LED,SD Card Local Storage,Wide Dynamic Range,Back Light Compensation (BLC),Digital Noise Reduction,Automatic White Balance,Motion Detection,Privacy Masking |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Country of Origin | Vietnam |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum resolution of this Wisenet camera?
The Wisenet QNO-6012R1 captures video at a maximum resolution of 1920 x 1080 pixels (Full HD) at 30 frames per second. This 2-megapixel resolution provides clear, detailed footage suitable for identifying subjects and reading license plates at appropriate distances.
How far does the night vision reach on this outdoor camera?
The integrated infrared LEDs provide night vision coverage up to 65.62 feet (20 meters) in complete darkness. This infrared illumination enables the camera to continue monitoring effectively during nighttime hours without requiring external lighting sources.
Is this camera suitable for outdoor installation in harsh weather?
Yes, the QNO-6012R1 features an IP66 ingress protection rating, making it dust-tight and protected against powerful water jets from any direction. Combined with its IK10 impact resistance and operating temperature range of -22°F to 131°F (-30°C to 55°C), it withstands challenging outdoor conditions.
What mounting options are available for this bullet camera?
This camera supports both pole mounting and backbox mounting configurations, providing flexibility for installation on various surfaces and structures. The included mounting hardware accommodates different installation scenarios commonly encountered in outdoor surveillance deployments.
Does this camera support local storage in addition to network recording?
Yes, the QNO-6012R1 includes memory card support for local storage, allowing footage to be recorded directly to an SD card. This provides redundancy alongside network video recorder (NVR) storage and enables operation in locations where network connectivity may be intermittent.
What video compression formats does this camera support?
The camera supports multiple video formats including H.265, H.264, and MJPEG. H.265 and H.264 provide efficient compression for reduced bandwidth and storage requirements, while MJPEG offers compatibility with legacy systems. The camera can stream in multiple formats simultaneously for different monitoring needs.
