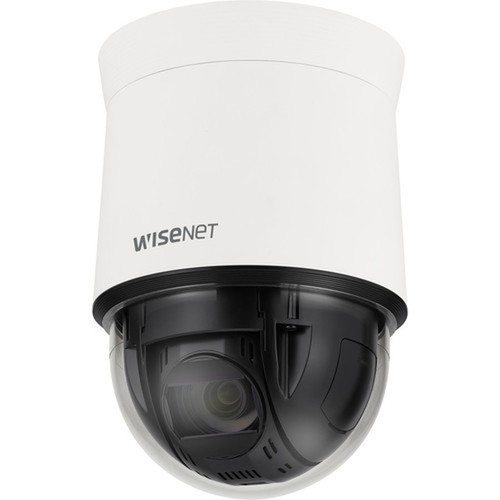

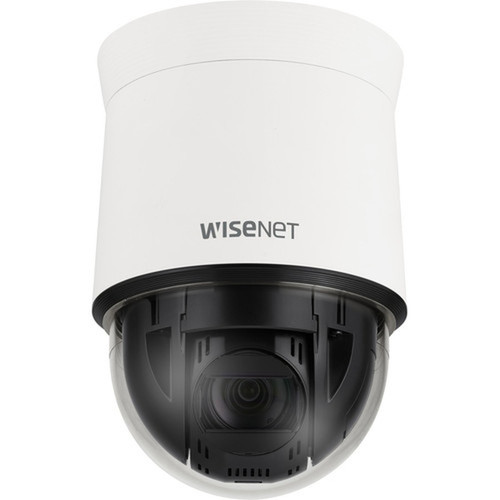

Wisenet QNP-6320 QNP-6230 2. 4MP Full HD Network PTZ Dome Camera - 23x Optical Zoom - Vandal Resistant - IP66 - IK10 - Ivory
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera captures video through a 2.4-megapixel CMOS sensor, producing Full HD resolution at 1920x1080. The 23x optical zoom lens has a focal length range from 4.4 mm (wide) to 102.2 mm (tele), with an aperture from f/1.6 to f/3.6 for light control across conditions. It supports a field of view from 61.8° horizontal wide to 3.08° tele, and 36.2° vertical wide to 1.73° tele, allowing precise scene composition.
Video encoding includes H.264, H.265, MJPEG, and H.264 (MPEG-4 Part 10/AVC), providing flexibility for storage and streaming. The camera features advanced imaging technologies such as back light compensation, highlight compensation, wide dynamic range, and 2D/3D digital noise reduction to maintain image quality in challenging lighting. Exposure control ranges from 1/12000 second to 1 second, accommodating fast motion and low-light scenarios.
Key Product Advantages
The QNP-6230 stands out with its combination of high-resolution imaging, mechanical durability, and intelligent features tailored for security applications. Its vandal-resistant dome design with IK10 impact and IP66 weatherproof ratings ensures reliable operation in indoor and outdoor environments, resisting physical damage and environmental elements.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Advanced Imaging Features, Robust Construction.
Advanced Imaging Features
Includes day/night operation, digital image stabilization, defog, motion detection, privacy masking, and alarm triggering for enhanced surveillance capability.
- PTZ Functionality
- Automatic White Balance
- Gain Control
Robust Construction
Built to withstand harsh conditions with an IK10 impact rating and IP66 ingress protection, suitable for high-risk areas.
- Vandal Resistant
- Weatherproof
- Durable Dome Housing
Deployment / Use Cases
This camera is engineered for scenarios requiring detailed monitoring with remote access and tamper resistance. Its PTZ capabilities and 23x zoom make it effective for large areas like parking lots, warehouses, and perimeter fences, where operators need to zoom in on specific points without sacrificing wide coverage.
Common deployments include retail stores for loss prevention, corporate campuses for security oversight, and industrial sites for safety monitoring. The wired network connectivity and support for SD card local storage allow integration into both centralized NVR systems and standalone setups. Features like audio compression and alarm triggering enable it to function as part of a comprehensive security system with audio alerts and event-based recording.
Relevant factors for this section include HD Recording, Recording Formats, Image Sensor Type, Color Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The QNP-6230 features a dome form factor with an ivory color, measuring 8.58 inches (218 mm) in height and 5.98 inches (152 mm) in diameter. Its compact design facilitates discreet installation on ceilings or walls, while the vandal-resistant construction deters tampering. The camera operates within a temperature range of 14°F to 131°F (-10°C to 55°C) and up to 90% humidity, ensuring performance in varied climates.
- Height
- 8.58" (218 mm)
- Weight
- 3.75 lb (1700 g)
- Length
- 4.4 mm (0.17")
Highlights
- 2.4-megapixel Full HD resolution for clear, detailed video surveillance
- 23x optical zoom lens with 4.4 mm to 102.2 mm focal length range
- Vandal-resistant dome design with IK10 impact and IP66 weatherproof ratings
- Supports H.264, H.265, MJPEG, and H.264 (MPEG-4 Part 10/AVC) video formats
- Advanced imaging features include PTZ, day/night, and digital noise reduction
- Wired network connectivity with RJ-45 port for reliable data transmission
- Remote management capability for easy configuration and monitoring
- Local storage via memory card (SD card) for backup or standalone use
- Operating temperature range from 14°F to 131°F (-10°C to 55°C)
- Includes motion detection, privacy masking, and alarm triggering functions
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | QNP-6320 |
| Brand Name | Wisenet |
| Product Series | Q |
| Product Model | QNP-6230 |
| Product Name | 2MP 23x Network PTZ Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H: 61.8°(Wide)~3.08°(Tele) / V: 36.2°(Wide)~1.73°(Tele) |
| Effective Camera Resolution | 2.4 Megapixel |
| Video | |
| Video Formats | H.264,H.265,MJPEG,H.264 (MPEG-4 Part 10/AVC) |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Zoom |
| Minimum Focal Length | 4.4 mm (0.17") |
| Maximum Focal Length | 102.2 mm (4.02") |
| Lens Included | Yes |
| Lens Mount Type | Board Mount |
| Minimum Aperture | f/3.6 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 23x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | White |
| Product Color | Ivory |
| Form Factor | Dome |
| Durability | Vandal Resistant |
| Height | 8.58" (218 mm) |
| Diameter | 5.98" (152 mm) |
| Weight (Approximate) | 3.75 lb (1700 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | PTZ,Day/Night,Back Light Compensation (BLC),Highlight Compensation (HLC),Automatic White Balance,Gain Control,Wide Dynamic Range,2D Digital Noise Reduction (2DNR),3D Digital Noise Reduction,Digital Image Stabilization,Defog,Motion Detection,Privacy Masking,Alarm Triggering,SD Card Local Storage,Audio Compression |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
FAQ
What is the resolution of the Wisenet QNP-6230 camera?
The Wisenet QNP-6230 delivers 2.4-megapixel resolution, which equates to Full HD at 1920 x 1080 pixels. This provides crisp, detailed video suitable for identifying faces, license plates, and other critical details in surveillance footage, ensuring high-quality monitoring for security applications.
Does this camera have optical zoom capabilities?
Yes, it features a 23x optical zoom lens with a focal length range from 4.4 mm (wide-angle) to 102.2 mm (telephoto). This allows operators to zoom in on distant objects without losing image quality, making it ideal for covering large areas like parking lots or perimeters where detail is needed at varying distances.
Is the Wisenet QNP-6230 suitable for outdoor use?
Absolutely. The camera is built with an IP66 rating for dust and water resistance, and an IK10 impact rating for vandal resistance. It operates in temperatures from 14°F to 131°F (-10°C to 55°C) and up to 90% humidity, making it robust enough for outdoor installations in harsh weather conditions.
What video formats does this network camera support?
It supports multiple video formats including H.264, H.265, MJPEG, and H.264 (MPEG-4 Part 10/AVC). This flexibility allows for efficient bandwidth usage and storage optimization, compatible with various network video recorders (NVRs) and surveillance software for seamless integration into existing systems.
Can I manage this camera remotely?
Yes, the QNP-6230 includes remote management capabilities via its wired network connection. This enables configuration, live viewing, and playback from any location with network access, providing convenience for security personnel to monitor sites without being on-premises.
What storage options are available for this camera?
The camera supports local storage through a memory card (SD card), allowing for on-device recording without requiring a central NVR. This is useful for backup purposes or in standalone deployments, and it can be combined with network storage for a hybrid approach to video retention.
