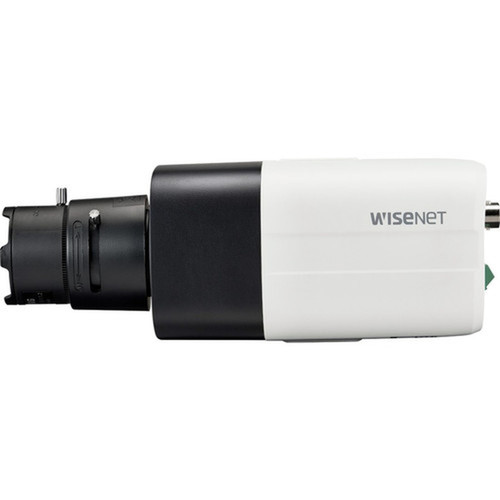

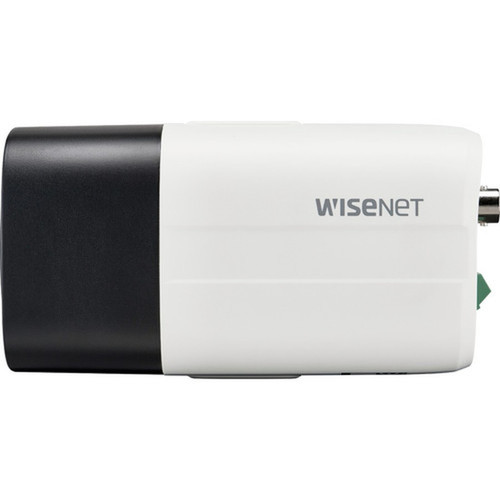

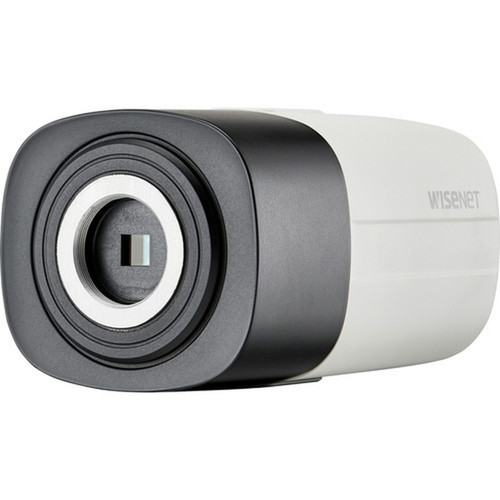

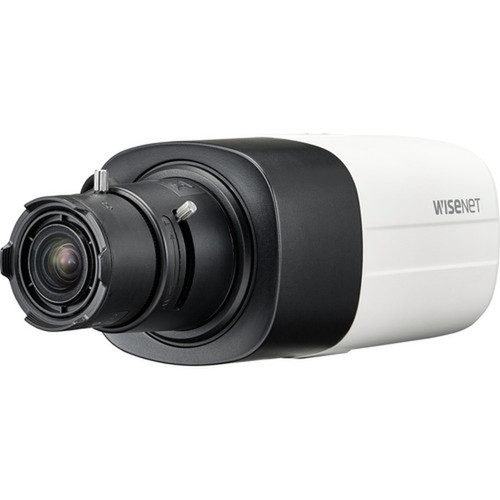

Wisenet SCB-6005 2MP Full HD Analog Box Camera - Indoor/Outdoor - 1080p @ 30fps - C/CS-mount - Black/Ivory
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This surveillance camera captures video at a maximum resolution of 1920 x 1080 pixels with a frame rate of 30 fps, providing detailed Full HD footage. The CMOS sensor enables effective 2-megapixel imaging with color support throughout operation.
The lens system features a C/CS-mount with a maximum aperture of f/1.2, allowing for good light gathering in various lighting conditions. Exposure control includes a wide shutter speed range from 1/12000 second to 1 second, accommodating different scene brightness levels.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Type, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SCB-6005 combines practical surveillance features with reliable performance for security installations. Its imaging capabilities and environmental durability make it suitable for various monitoring scenarios.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Advanced Imaging Features, Versatile Operation.
Advanced Imaging Features
Includes Digital Wide Dynamic Range (D-WDR), Back Light Compensation (BLC), Highlight Compensation (HLC), and digital noise reduction for improved video quality in challenging lighting conditions.
- Motion Detection
- Privacy Masking
- Automatic White Balance
- Gain Control
Versatile Operation
Designed for both indoor and outdoor use with color night vision capability through the built-in infrared illuminator, ensuring 24/7 monitoring.
- Day/Night Function
- Defog Feature
- Built-in Joystick
Deployment / Use Cases
This camera is well-suited for small to medium business security systems, residential surveillance, and commercial property monitoring. Its analog connectivity makes it ideal for upgrading existing CCTV installations while maintaining compatibility with current infrastructure.
The indoor/outdoor rating and wide operating temperature range allow deployment in various environments including retail stores, office buildings, warehouses, and perimeter security applications. The box form factor provides flexibility for different mounting configurations.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Type, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The SCB-6005 features a compact box design measuring 2.69 inches wide, 2.35 inches high, and 3.65 inches deep, with a lightweight construction of approximately 186 grams. This form factor allows for discreet installation in various settings while providing the durability needed for surveillance applications.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.35" (59.60 mm), 2.69" (68.40 mm), 3.65" (92.70 mm), 186 g. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.69" (68.40 mm)
- Depth
- 3.65" (92.70 mm)
- Height
- 2.35" (59.60 mm)
- Weight
- 186 g
Highlights
- 2-megapixel CMOS sensor for Full HD 1080p video recording
- 30 frames per second capture rate for smooth motion video
- C/CS-mount lens compatibility for flexible optics selection
- Color night vision with built-in infrared illuminator
- Indoor/outdoor rated with operating range from -10°C to 55°C
- Wired connectivity supporting AHD and CVBS analog formats
- Dual power input options: 12V DC or 24V AC
- Advanced imaging features including D-WDR and motion detection
- Compact box form factor in black and ivory color options
- Day/night operation with automatic switching capability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | SCB-6005 |
| Brand Name | Wisenet |
| Product Series | HD+ |
| Product Model | SCB-6005 |
| Product Name | 1080p Full HD Analog Box Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision Type | Color |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | AHD,CVBS |
| Lens | |
| Lens Mount Type | C/CS-mount |
| Maximum Aperture | f/1.2 |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | No |
| Power Description | |
| Input Voltage | 12 V DC,24 V AC |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | Black,Ivory |
| Form Factor | Box |
| Height | 2.35" (59.60 mm) |
| Width | 2.69" (68.40 mm) |
| Depth | 3.65" (92.70 mm) |
| Weight (Approximate) | 186 g |
| Environmental Conditions | |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Day/Night,Motion Detection,Defog,Built-in Infrared Illuminator,Built-in Joystick,Digital Wide Dynamic Range (D-WDR),Back Light Compensation (BLC),Highlight Compensation (HLC),Privacy Masking,Gain Control,Automatic White Balance,Digital Noise Reduction |
| Indoor/Outdoor | Indoor/Outdoor |
User Manual
FAQ
What video resolution does the Wisenet SCB-6005 support?
The SCB-6005 captures video at Full HD 1080p resolution (1920 × 1080 pixels) with a 2-megapixel effective camera resolution. This provides clear, detailed footage suitable for identifying subjects and monitoring activities in surveillance applications.
Can this camera be used outdoors?
Yes, the SCB-6005 is rated for both indoor and outdoor use. It operates in temperatures from -10°C to 55°C (14°F to 131°F) and handles up to 90% humidity. The camera's construction and environmental ratings make it suitable for exterior installations where weather resistance is required.
What type of lens mount does this camera have?
This camera features a C/CS-mount lens system, which is a standard mounting type for surveillance cameras. This mount compatibility allows for flexibility in lens selection to achieve different focal lengths and field-of-view requirements based on specific installation needs.
How does the night vision work on this camera?
The SCB-6005 provides color night vision through its built-in infrared illuminator. Unlike traditional black-and-white night vision, this maintains color information in low-light conditions. The camera automatically switches between day and night modes based on lighting conditions.

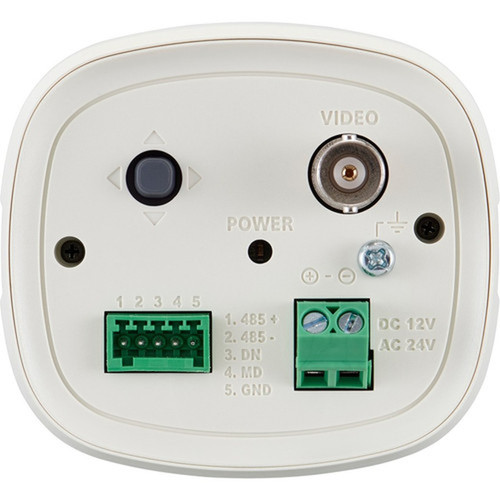

What power options are available for this camera?
The camera accepts either 12V DC or 24V AC power input, providing flexibility for different installation scenarios. This dual-voltage capability allows integration with various power supply systems commonly used in surveillance installations without requiring additional converters.
What video formats does this analog camera support?
The SCB-6005 supports both AHD (Analog High Definition) and CVBS (Composite Video Baseband Signal) formats. This compatibility ensures the camera can work with modern high-definition analog systems as well as legacy standard-definition surveillance equipment.
What display size or resolution is listed?
It features a display specification of 2 Megapixel, giving you clear visuals for work and media use.
