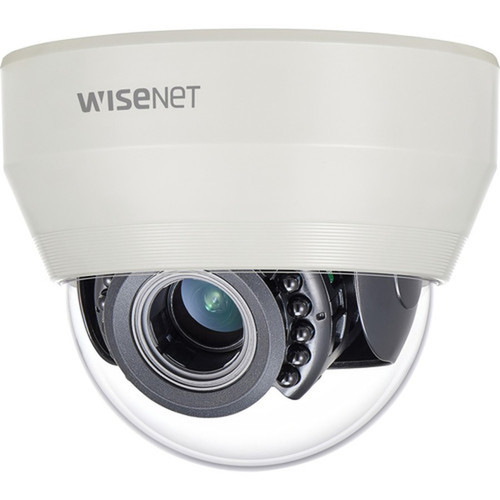

Wisenet SCD-6085R 2MP Analog IR Dome Camera - Indoor HD Surveillance - 1920 x 1080 - 65. 62 ft Night Vision - Varifocal 3. 2-10mm Lens - Ivory
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a CMOS image sensor that supports both color and monochrome imaging, with advanced features including day/night operation via a built-in mechanical ICR filter. The 2-megapixel resolution captures 1920x1080 video in AHD and CVBS analog formats, compatible with standard HD surveillance recorders.
The SCD-6085R incorporates multiple image enhancement technologies: Digital Wide Dynamic Range (D-WDR) balances lighting in high-contrast scenes, Back Light Compensation (BLC) corrects for strong backlighting, and Digital Noise Reduction maintains clarity in low-light conditions. These features work together to deliver consistent video quality across varying lighting environments.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Wisenet SCD-6085R combines practical surveillance features with installation flexibility, making it an effective security solution for various indoor applications. Its comprehensive feature set addresses common monitoring challenges while maintaining straightforward operation.
Enhanced Low-Light Performance
With 65.62 feet of infrared night vision and a fast f/1.6 maximum aperture, the camera maintains visibility in complete darkness. The CMOS sensor's efficient power consumption extends operational reliability while delivering superior HD video compared to traditional CCD sensors.
- 65.62 ft IR illumination range
- f/1.6 maximum aperture for light gathering
- Day/Night operation with mechanical ICR
- Digital Noise Reduction for clean low-light video
Intelligent Image Processing
Multiple compensation technologies ensure usable video across challenging lighting conditions. Highlight Compensation (HLC) manages bright light sources, Defog enhances visibility in hazy conditions, and privacy masking protects sensitive areas from recording.
- Digital Wide Dynamic Range (D-WDR)
- Back Light Compensation (BLC)
- Highlight Compensation (HLC)
- Privacy masking capabilities
Deployment / Use Cases
The SCD-6085R's versatile mounting options and indoor-rated construction make it suitable for numerous security applications. Its discreet dome design and ivory color allow for unobtrusive installation in professional and residential settings alike.
For retail environments, the camera's varifocal lens and 110.2° wide field of view can monitor entire aisles or checkout areas, while motion detection triggers recording only when activity occurs, optimizing storage usage. In office settings, the multiple mounting options enable ceiling, wall, or corner installation to cover entrances, hallways, or sensitive document areas.
Small Business Security
Ideal for monitoring storefronts, reception areas, stock rooms, and cash handling locations. The 2MP resolution provides sufficient detail for identifying individuals and activities, while the analog connectivity ensures compatibility with existing HD surveillance systems.
Residential Monitoring
Effective for home entryways, garages, and interior common areas. The 65.62-foot night vision covers typical residential spaces, and the motion detection feature reduces false alerts while capturing relevant activity.
Physical Profile
The camera features a compact 4.72-inch diameter dome housing in ivory finish, weighing approximately 11.29 ounces for easy installation. Ten mounting options provide flexibility: in-ceiling, flush mount, hanging mount, wall mount, gooseneck, pendant mount, parapet mount, pole mount, corner mount, and backbox mount configurations accommodate various architectural requirements.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 11.29 oz (320 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 11.29 oz (320 g)
- Length
- 3.2 mm (0.13")
Highlights
- 2-megapixel resolution delivers 1920x1080 Full HD video at 30 fps
- 65.62-foot infrared night vision for 24/7 monitoring capability
- Varifocal 3.2-10mm lens with 3.1x optical zoom for flexible field adjustment
- CMOS sensor provides power-efficient HD video with superior low-light performance
- Multiple mounting options including ceiling, wall, corner, and pendant installations
- Advanced image processing with D-WDR, BLC, HLC, and defog technologies
- Day/Night operation with built-in mechanical ICR filter
- Motion detection and privacy masking for intelligent recording
- Indoor-rated with operating range of 14°F to 131°F (-10°C to 55°C)
- Analog HD compatibility with AHD and CVBS video formats
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | SCD-6085R |
| Brand Name | Wisenet |
| Product Series | AHD |
| Product Model | SCD-6085R |
| Product Name | 2MP Analog IR Dome Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft (20 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color,Monochrome |
| Field of View | H : 110.2°(Wide) ~ 32°(Tele) V : 55.4°(Wide) ~ 18°(Tele) D : 128.4°(Wide) ~ 36.6°(Tele) |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | CVBS,AHD |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.2 mm (0.13") |
| Maximum Focal Length | 10 mm (0.39") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 3.1x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | No |
| Power Description | |
| Input Voltage | 12 V DC,24 V AC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | Ivory |
| Mount Type | In-ceiling,Flush Mount,Hanging Mount,Wall Mount,Gooseneck,Pendant Mount,Parapet Mount,Pole Mount,Corner Mount,Backbox Mount |
| Form Factor | Dome |
| Diameter | 4.72" (119.80 mm) |
| Weight (Approximate) | 11.29 oz (320 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Day/Night,Motion Detection,Back Light Compensation (BLC),Highlight Compensation (HLC),Digital Wide Dynamic Range (D-WDR),Defog,Digital Noise Reduction,Gain Control,White Balance,Alarm Triggering,Built-in Mechanical ICR,Privacy Masking |
| Indoor/Outdoor | Indoor |
User Manual
FAQ
What resolution does the Wisenet SCD-6085R camera record at?
The SCD-6085R captures 2-megapixel video at 1920x1080 Full HD resolution with a maximum frame rate of 30 frames per second. This resolution provides clear, detailed imagery suitable for identifying individuals and activities in surveillance applications.
How far does the night vision reach on this camera?
The camera's infrared illumination provides effective night vision up to 65.62 feet (20 meters) in complete darkness. This range covers most indoor residential and commercial spaces, ensuring 24/7 monitoring capability regardless of lighting conditions.
What type of lens does this camera have?
It features a varifocal lens with 3.2mm to 10mm focal length and 3.1x optical zoom. This allows adjustment of the field of view from 110.2° wide angle to 32° telephoto, providing flexibility to cover large areas or focus on specific points of interest.
What mounting options are available for the SCD-6085R?
The camera supports ten mounting configurations: in-ceiling, flush mount, hanging mount, wall mount, gooseneck, pendant mount, parapet mount, pole mount, corner mount, and backbox mount. This versatility accommodates various architectural requirements and installation preferences.
What video formats does this analog camera support?
The SCD-6085R outputs video in both AHD (Analog High Definition) and CVBS (composite video) formats. This dual-format compatibility ensures integration with most modern HD surveillance systems while maintaining backward compatibility with legacy equipment.
What power requirements does this camera have?
The camera operates on either 12V DC or 24V AC power input. This dual-voltage capability provides installation flexibility and compatibility with standard surveillance power supplies commonly used in residential and commercial security systems.
What display size or resolution is listed?
It features a display specification of 2 Megapixel, giving you clear visuals for work and media use.
