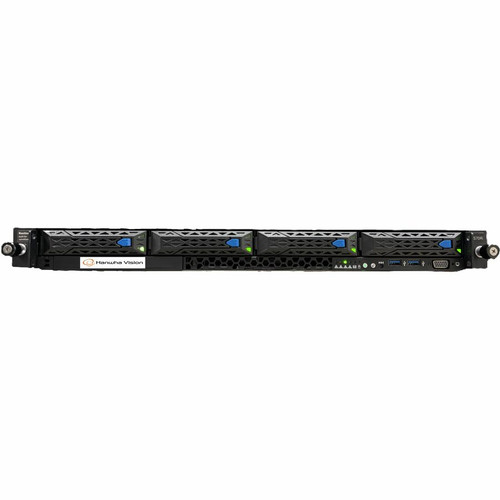

Wisenet WRR-P-E201S-80TB Wave Recording Server - 80 TB HDD - Windows Server 2022 - 16 GB RAM - Network Video Recorder
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Wave Recording Server delivers professional-grade specifications tailored for surveillance applications. The 80 TB hard drive capacity provides substantial storage for high-resolution video feeds, while the 16 GB of RAM supports smooth operation of the Windows Server 2022 environment and associated video management software. The system's 450 W power supply with 80 Plus Platinum certification ensures energy-efficient performance, reducing operational costs in continuous-use scenarios.

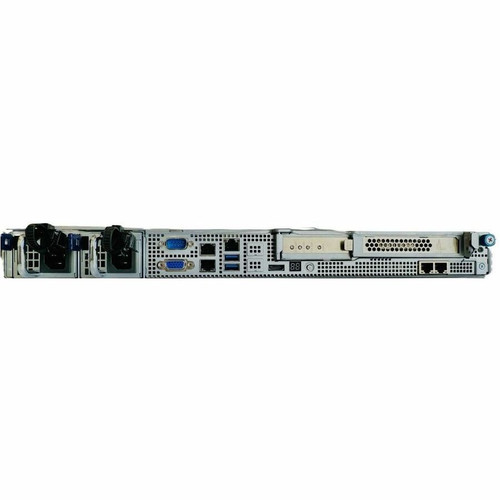

Connectivity is handled through standard Ethernet for network integration, alongside four USB 3.2 ports for peripheral expansion and data transfer. Video output options include HDMI and a VGA port, allowing for direct monitor connections during setup or local viewing. The server's physical design is optimized for rack mounting, with dimensions of 1.73" H x 17.32" W x 19.61" D and a weight of 50 lb, making it suitable for standard server racks.
Key Product Advantages
The Wisenet WRR-P-E201S-80TB stands out with its combination of massive storage, enterprise-grade software, and deployment-ready features. The pre-installed Windows Server 2022 OS offers a secure and scalable foundation for video surveillance applications, enabling advanced management capabilities and compatibility with a wide range of security software.
High-Capacity Storage
With 80 TB of HDD space, this recorder supports long-term retention of high-definition video from numerous cameras, reducing the need for frequent data archiving or external storage solutions.
- Suitable for 24/7 recording
- Minimizes storage maintenance
Remote Management Capability
The built-in remote management feature allows administrators to monitor and control the system from any internet-connected location, enhancing operational flexibility and response times.
- Centralized camera control
- Operational from off-site
Energy-Efficient Design
The 80 Plus Platinum power efficiency certification ensures minimal power waste, which is critical for always-on surveillance systems aiming to lower electricity costs and environmental impact.
- Reduces operational expenses
- Supports green IT initiatives
Deployment / Use Cases
This recording server is ideal for environments requiring robust, scalable video surveillance solutions. Its high storage capacity and remote management features make it a fit for large facilities, multi-site operations, and security-sensitive installations where continuous monitoring and data integrity are priorities.
Common applications include corporate campuses, educational institutions, retail chains, and government facilities that need to manage video feeds from dozens or hundreds of IP cameras. The server's rack-mount design and included sliding rails facilitate deployment in centralized server rooms, while its Windows Server base allows integration with existing IT networks and security protocols.
Large-Scale Security Operations
Deploy in central security rooms to aggregate feeds from multiple buildings or locations, using the remote management to oversee all cameras from a single interface.
Data-Intensive Surveillance
Use in settings with high-resolution cameras or extended retention policies, where the 80 TB capacity ensures video archives remain accessible without compression or loss.
Physical Profile
The server features a compact rack-mount form factor with a height of 1.73 inches (1U), width of 17.32 inches, and depth of 19.61 inches, designed to fit standard 19-inch server racks. Its weight of 50 pounds reflects a sturdy construction with internal components secured for vibration resistance. The included sliding rail kit and cable management arm simplify installation and maintenance, promoting organized cabling and easy access for servicing in data center environments.
- Width
- 17.32" (440 mm)
- Depth
- 19.61" (498 mm)
- Height
- 1.73" (44 mm)
- Weight
- 50 lb (22679.62 g)
What's in the Box
This product ships with all necessary components for immediate deployment and operation.
Highlights
- 80 TB hard drive capacity for extensive video storage
- Windows Server 2022 operating system for enterprise management
- 16 GB of standard memory supports smooth performance
- Remote management enables control from any internet-connected location
- Four USB 3.2 ports for high-speed peripheral connectivity
- HDMI and VGA video outputs for flexible display options
- 80 Plus Platinum certified power supply for energy efficiency
- Rack-mountable design with included sliding rails and cable management
- 5-year limited warranty for long-term reliability
- Manufactured in the United States
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | WRRPE201S80TB |
| Brand Name | Wisenet |
| Product Line | WAVE |
| Product Model | WRR-P-E201S |
| Product Name | WRR-P-E201S Wave Recording Server (Windows Server OS) |
| Product Type | Video Surveillance Station |
| Technical Information | |
| Connectivity Technology | Wired |
| System Components | Network Video Recorder |
| Storage | |
| Hard Drive Capacity | 80 TB |
| Memory | |
| Standard Memory | 16 GB |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Interfaces/Ports | |
| USB | Yes |
| USB Standard | USB 3.2 |
| Number of USB Ports | 4 |
| Number of VGA Out | 1 |
| HDMI | Yes |
| Software | |
| Operating System Supported | Windows Server 2022 |
| Power Description | |
| Power Consumption | 450 W |
| Physical Characteristics | |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 19.61" (498 mm) |
| NVR Weight | 50 lb (22679.62 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 50°F (10°C) |
| Maximum Operating Temperature | 95°F (35°C) |
| Miscellaneous | |
| Package Contents | WRR-P-E201S Wave Recording Server (Windows Server OS) Keyboard Mouse Sliding Rail kit Cable Management Arm |
| Country of Origin | United States |
| Energy Efficiency Certification | 80 Plus Platinum |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What operating system does the Wisenet WRR-P-E201S-80TB use?
This Wave Recording Server comes with Windows Server 2022 pre-installed. This enterprise-grade operating system provides a stable and secure platform for running video management software, supporting remote administration, and integrating with existing network infrastructure for surveillance applications.
How much storage capacity does this recorder have?
The server includes 80 TB of hard drive capacity. This substantial storage allows for long-term recording of high-definition video feeds from multiple IP cameras, reducing the need for frequent data offloading or external storage expansions in large-scale surveillance deployments.
Can I manage this recorder remotely?
Yes, the WRR-P-E201S-80TB supports remote management. This feature enables security personnel to monitor camera feeds, adjust settings, and access recorded video from any location with an internet connection, enhancing operational flexibility and response capabilities for distributed sites.
What are the video output options on this server?
The recorder provides both HDMI and one VGA output port. These connections allow for direct attachment to monitors or displays during initial setup, configuration, or local viewing, offering flexibility in how the video feeds are accessed and displayed in control rooms.
Is this server rack-mountable?
Yes, it is designed for rack mounting with a 1U height profile. The package includes a sliding rail kit and cable management arm, facilitating easy installation into standard 19-inch server racks and helping organize cables for maintenance and airflow in data center environments.
What is the warranty period for this product?
Wisenet provides a 5-year limited warranty for the WRR-P-E201S-80TB. This warranty covers defects in materials and workmanship, offering long-term assurance for investments in critical surveillance infrastructure and supporting reliable operation over extended periods.
How much memory is installed?
It includes 16 GB of memory to support responsive multitasking and daily workloads.
