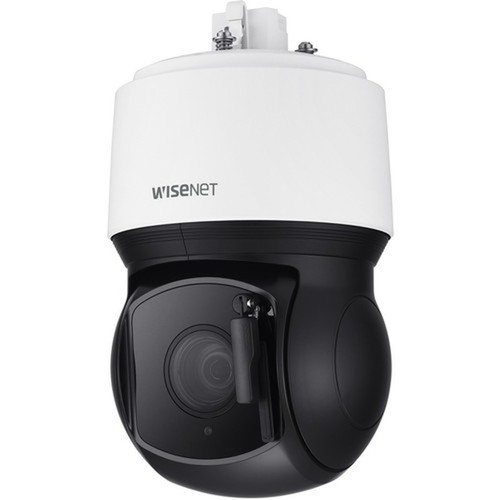

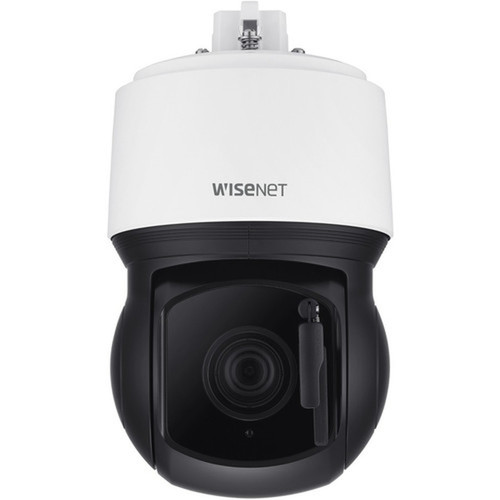

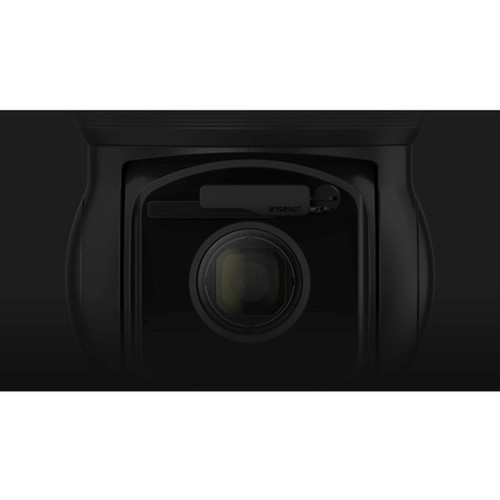

Wisenet XNP-6400RW 2MP Network 40x IR PTZ Dome Camera - Indoor/Outdoor - 656 ft Night Vision - Full HD 1080p - IK10/IP66
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures Full HD 1080p video at 60 frames per second using a CMOS image sensor, providing smooth, detailed footage for accurate identification. The 40x optical zoom lens offers a focal range from 4.3 mm (wide) to 170 mm (tele), with an aperture from f/1.6 to f/4.95 for optimal light control across varying conditions.
Video compression supports H.264, H.265, and MJPEG formats, balancing quality with efficient bandwidth and storage use. The camera operates over a wired network connection via RJ-45 and includes remote management capabilities for centralized control.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The XNP-6400RW stands out with its long-range infrared night vision and powerful optical zoom, enabling detailed surveillance over expansive areas day or night. Its rugged construction and environmental ratings ensure durability in outdoor installations, while advanced imaging features enhance video clarity and reliability.
Advanced Imaging Intelligence
Incorporates features like digital noise reduction, image stabilization, defog, and backlight compensation to maintain video quality in challenging lighting and weather conditions.
- Face Detection
- Motion Detection
- Auto Tracking
- Privacy Masking
- Shock Detection
Operational Flexibility
Supports both color and monochrome imaging with day/night functionality, automatically adapting to light levels for consistent performance.
- PTZ Control
- Built-in HLC
- Remote Management
Deployment / Use Cases
This camera is ideal for securing large outdoor perimeters, industrial sites, and commercial properties where long-range visibility and environmental resilience are critical. Its 40x zoom and night vision capabilities make it effective for monitoring entry points, parking structures, and remote areas without requiring additional lighting.
In retail or campus settings, the auto-tracking and PTZ functions allow for active surveillance of moving subjects, while the dome design provides a deterrent presence. The camera's compatibility with standard network video recorders and support for H.265 compression streamline integration into existing security systems, reducing bandwidth demands.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The dome housing measures 12.55 inches in height and 7.28 inches in diameter, with a weight of approximately 11.90 pounds, contributing to a stable installation. Available in white and black color options, it offers aesthetic flexibility to blend with building exteriors or interiors. The robust design includes a built-in wiper for maintaining lens clarity in adverse weather, supporting continuous operation in rain, snow, or dusty environments.
- Width
- 7.28" (184.90 mm)
- Height
- 12.55" (318.77 mm)
- Weight
- 11.90 lb (5397.75 g)
- Length
- 4.3 mm (0.17")
Highlights
- 2-megapixel CMOS sensor for Full HD 1080p video at 60 fps
- 40x optical zoom lens with 4.3 mm to 170 mm focal range
- Infrared night vision effective up to 656 feet (200 meters)
- IK10 impact and IP66 ingress protection ratings
- Operates in temperatures from -40°F to 140°F (-40°C to 60°C)
- Supports H.264, H.265, and MJPEG video compression
- PTZ functionality with auto-tracking and motion detection
- Versatile mounting for parapet, ceiling, or roof installation
- Day/night operation with color and monochrome imaging
- Wired network connectivity with remote management
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XNP-6400RW |
| Brand Name | Wisenet |
| Product Series | X |
| Product Model | XNP-6400RW |
| Product Name | 2MP Network 40x IR PTZ with Built-in Wiper |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 656.17 ft (200 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color,Monochrome |
| Field of View | H: 65.66 ?(Wide)~1.88 ?(Tele) / V: 39.40 ?(Wide)~1.09 ?(Tele) |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.264,H.265,MJPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Zoom |
| Minimum Focal Length | 4.3 mm (0.17") |
| Maximum Focal Length | 170 mm (6.69") |
| Lens Included | Yes |
| Minimum Aperture | f/1.6 |
| Maximum Aperture | f/4.95 |
| Optical Zoom | 40x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | White,Black |
| Mount Type | Parapet Mount,Ceiling Mount,Roof Mount |
| Form Factor | Dome |
| Height | 12.55" (318.77 mm) |
| Width | 7.28" (184.90 mm) |
| Diameter | 7.28" (184.90 mm) |
| Weight (Approximate) | 11.90 lb (5397.75 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Day/Night,Shock Detection,Face Detection,Back Light Compensation (BLC),Built-in HLC,Digital Noise Reduction,Digital Image Stabilization,Defog,Motion Detection,Privacy Masking,Auto Tracking,PTZ |
| Indoor/Outdoor | Indoor/Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
User Manual
FAQ
What is the effective resolution and video quality of this camera?
The camera features a 2-megapixel CMOS sensor that delivers Full HD video at 1920 x 1080 resolution and 60 frames per second. This ensures smooth, detailed footage suitable for identifying subjects at a distance, with support for H.264, H.265, and MJPEG compression formats to optimize bandwidth and storage efficiency.
How far does the night vision reach, and what type is it?
The infrared night vision is effective up to 656.17 feet (200 meters), providing clear monochrome imaging in complete darkness. This long-range capability allows for reliable surveillance of large outdoor areas without additional lighting, making it ideal for perimeter security and low-light environments.
What are the zoom capabilities of the lens?
It includes a 40x optical zoom lens with a focal length range from 4.3 mm (wide-angle) to 170 mm (telephoto), offering versatile coverage from broad views to detailed close-ups. The aperture ranges from f/1.6 to f/4.95, allowing for precise light control in varying conditions.
Is this camera suitable for outdoor use, and what protections does it have?
Yes, it is designed for indoor/outdoor use with an IK10 impact resistance rating and IP66 ingress protection, making it dust-tight and resistant to powerful water jets. It operates reliably in temperatures from -40°F to 140°F and up to 95% humidity, ensuring durability in harsh weather conditions.
What mounting options are available for installation?
The dome form factor supports parapet, ceiling, and roof mounting, providing flexibility for different installation scenarios. This versatility allows for discreet placement on building exteriors or overhead structures, suitable for securing perimeters, parking lots, and industrial sites.
What advanced features does this camera include for surveillance?
It incorporates features such as auto-tracking, motion detection, face detection, privacy masking, and shock detection. Additional imaging enhancements include digital noise reduction, image stabilization, defog, and backlight compensation, which improve video clarity and reliability in challenging lighting and environmental conditions.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
