Wisenet XNV-6080R/KME 2MP Vandal-Resistant Network IR Dome Camera - Full HD 1080p - 164 ft Night Vision - Varifocal Lens - IP66/IP67 - IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera leverages a 1/2.8" CMOS image sensor to produce 2-megapixel video at a maximum resolution of 1920 x 1080. The varifocal lens ranges from 2.8 mm to 12 mm with apertures from f/1.4 to f/3.6, allowing precise focus and depth-of-field control. Exposure settings span from 1/12000 second to 2 seconds, accommodating varied lighting conditions without motion blur.
Network connectivity is handled via Fast Ethernet with support for multiple protocols including ONVIF, IPv4/IPv6, RTSP, and SNMP for seamless integration into existing surveillance systems. Power flexibility includes 12 V DC, 24 V AC, and Power over Ethernet (PoE) options, simplifying installation in diverse locations. Storage expansion is available through memory card support, and remote management capabilities enable centralized monitoring and configuration.
Key Product Advantages
The XNV-6080R/KME combines robust physical protection with advanced imaging technology for reliable 24/7 surveillance. Its IK10 vandal resistance and IP66/IP67 ratings ensure durability against tampering and environmental elements, while the efficient H.265 codec reduces network load without compromising video quality.
Superior Low-Light Performance
Infrared night vision extends to 164 feet, and features like Day/Night mode, Back Light Compensation, and Digital Noise Reduction maintain image clarity in challenging lighting.
- Infrared LEDs for zero-light environments
- Wide Dynamic Range balances bright and dark areas
- Digital Image Stabilization reduces shake
Flexible Deployment Options
Multiple mounting types—desk, wall, and rack—coupled with wide operating temperature and humidity ranges allow installation in diverse indoor and outdoor settings.
- Mounts on desks, walls, or racks
- Operates from -40°F to 131°F
- Handles up to 90% humidity
Deployment / Use Cases
This camera is designed for high-security and commercial surveillance where durability and image quality are critical. Its vandal-resistant build and weatherproofing make it suitable for perimeter monitoring, entry points, parking lots, and industrial facilities where equipment may face physical stress or harsh weather.
In retail environments, the varifocal lens and motion detection support loss prevention by allowing adjustable coverage of aisles or cash registers. For corporate campuses, the ONVIF compliance and remote management enable integration into larger networked systems for centralized security oversight. The PoE capability simplifies wiring in ceiling or elevated installations, reducing deployment complexity.
Perimeter and Outdoor Security
Use for monitoring building exteriors, fences, or gates where IK10 impact resistance and IP66/IP67 ratings protect against vandalism and weather.
High-Traffic Indoor Areas
Ideal for lobbies, warehouses, or retail floors where the 60 fps frame rate captures fast motion clearly, and privacy masking secures sensitive zones.
Physical Profile

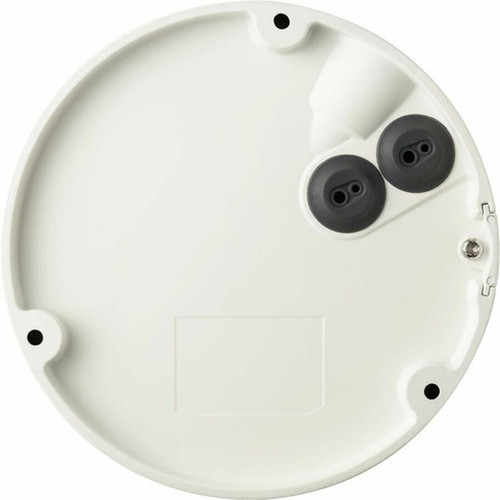

The camera features a compact dome form factor with a height of 4.67 inches and diameter of 6.30 inches, designed for discreet ceiling or wall mounting. The ivory color blends with light interiors, while the robust construction supports a weight of 2.19 pounds. The included varifocal lens and multiple power inputs facilitate straightforward installation in new or upgraded surveillance setups.
- Height
- 4.67" (118.50 mm)
- Weight
- 2.19 lb (995 g)
- Length
- 2.8 mm (0.11")
Highlights
- 2-megapixel Full HD resolution at 60 fps for sharp, real-time video
- 164-foot infrared night vision ensures clear monitoring in total darkness
- IK10 vandal-resistant and IP66/IP67 weatherproof for durable outdoor use
- Varifocal lens with 4.3x optical zoom allows flexible field-of-view adjustment
- Supports H.265 and H.264 compression to reduce bandwidth and storage needs
- Power over Ethernet (PoE) compatible for simplified installation and wiring
- Wide operating temperature range from -40°F to 131°F for extreme environments
- ONVIF compliant for easy integration with existing surveillance systems
- Includes features like motion detection, privacy masking, and audio detection
- 3-year limited warranty provides long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XNV-6080R/KME |
| Brand Name | Wisenet |
| Product Series | X |
| Product Model | XNV-6080R |
| Product Name | 2MP Vandal-Resistant Network IR Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 164.04 ft (50 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | H: 119.5°(Wide)~27.9°(Tele), V: 62.8°(Wide)~15.7°(Tele), T: 142.1°(Wide)~32.0°(Tele) |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.265,H.264,MJPEG,H.265M,H.265H,H.264M,H.264H,H.265B,H.264B |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 2.8 mm (0.11") |
| Maximum Focal Length | 12 mm (0.47") |
| Lens Included | Yes |
| Minimum Aperture | f/3.6 |
| Maximum Aperture | f/1.4 |
| Optical Zoom | 4.3x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | IPv4,IPv6,TCP/IP,UDP/IP,RTP/UDP,RTP/TCP,RTCP,RTSP,NTP,HTTP,HTTPS,SSL/TLS,DHCP,FTP,SMTP,ICMP,IGMP,SNMPv1/v2c/v3 (MIB2),ARP,DNS,DDNS,QoS,UPnP,Bonjour,LLDP,ONVIF,SRTP |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC,24 V AC |
| Power Source Type | DC,PoE,AC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | Ivory |
| Mount Type | Desk Mount,Wall Mount,Rack Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant |
| Height | 4.67" (118.50 mm) |
| Diameter | 6.30" (160 mm) |
| Weight (Approximate) | 2.19 lb (995 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Wide Dynamic Range,Day/Night,Back Light Compensation (BLC),Digital Noise Reduction,Digital Image Stabilization,Motion Detection,Privacy Masking,Gain Control,White Balance,Audio Detection,PTZ,Defog |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP67 |
| Country of Origin | Korea |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the resolution and video quality of this camera?
The Wisenet XNV-6080R/KME delivers 2-megapixel Full HD video at a resolution of 1920 x 1080 pixels. It supports a maximum frame rate of 60 frames per second, ensuring smooth, detailed footage for real-time surveillance and playback. Video compression includes H.265 and H.264 formats, which optimize bandwidth usage and storage efficiency without sacrificing clarity.
How far does the night vision reach, and what type is it?
This camera features infrared night vision with a range of 164.04 feet (50 meters). It uses integrated IR LEDs to provide clear monochrome imaging in complete darkness, supported by features like Day/Night mode and Digital Noise Reduction to enhance low-light performance. This makes it effective for 24/7 monitoring in outdoor or dimly lit areas.
Is this camera suitable for outdoor use?
Yes, the XNV-6080R/KME is built for outdoor deployment with an IP66/IP67 ingress protection rating, meaning it is dust-tight and can withstand temporary immersion in water. Combined with an IK10 vandal-resistant rating, it endures physical impacts and harsh weather conditions. Its operating temperature range of -40°F to 131°F further ensures reliability in extreme climates.
What power options are available for installation?
The camera offers flexible power inputs: 12 V DC, 24 V AC, and Power over Ethernet (PoE). PoE compatibility allows it to receive power and data through a single Ethernet cable, simplifying wiring and reducing the need for separate power outlets. This versatility supports installation in various locations, from ceilings to remote outdoor sites.
Can I adjust the field of view after installation?
Yes, the varifocal lens provides adjustable focal lengths from 2.8 mm (wide-angle) to 12 mm (telephoto), offering a 4.3x optical zoom. This allows you to fine-tune the field of view during or after installation without moving the camera, making it adaptable to different monitoring needs such as covering broad areas or focusing on specific points.
What networking and storage features does it support?
The camera connects via Fast Ethernet (RJ-45) and supports protocols like ONVIF, IPv4/IPv6, RTSP, and SNMP for integration into network video systems. Storage options include local memory card support for onboard recording. Remote management capabilities enable configuration and monitoring from a central location, enhancing system scalability and control.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
