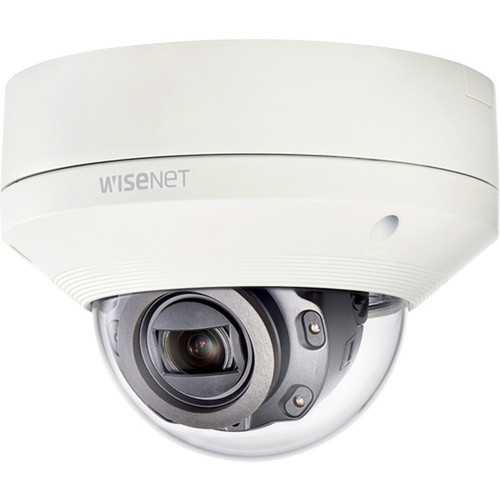

Wisenet XNV-6080R 2MP Outdoor Vandal-Resistant Dome Network Camera - Full HD 1080p - 164 ft IR Night Vision - IP66/67 - IK10 - PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a high-sensitivity CMOS sensor that captures 2-megapixel resolution video at 1920 x 1080 pixels. The sensor's efficiency translates to lower power consumption compared to traditional CCD sensors while delivering superior HD video quality. Video output supports multiple formats including H.265, H.264, MPEG-4 AVC, and MJPEG, providing flexibility for different recording and streaming requirements.
The lens system features a 2.8mm to 12mm focal length range with an aperture from f/1.4 to f/3.6, allowing for precise light control and depth of field adjustment. Exposure control spans from 1/12000 second to 2 seconds, enabling clear capture of fast-moving objects or low-light scenes. Local storage is supported via SD card, while network connectivity through the RJ-45 port enables seamless integration into existing surveillance systems.
Key Product Advantages
The XNV-6080R combines exceptional durability with advanced imaging capabilities to address the core requirements of modern surveillance installations. Its vandal-resistant IK10 rating and IP66/67 certification ensure physical protection against impacts and environmental elements, reducing maintenance needs and extending service life in exposed locations.
Superior Night Performance
Infrared illumination reaches 164 feet, providing reliable monitoring in complete darkness without visible light pollution.
- 50-meter effective range
- Built-in IR LEDs
- Automatic day/night switching
Flexible Installation Options
Multiple mounting types including flush, wall, parapet, corner, and pole mounts accommodate diverse architectural requirements.
- Six mounting configurations
- Dome form factor
- Ivory color blends with surroundings
Power Versatility
Support for 24V AC, 12V DC, and Power over Ethernet (PoE) simplifies installation and reduces wiring complexity.
- Single-cable PoE deployment
- Dual voltage input
- Remote power management
Deployment / Use Cases
This camera is ideally suited for perimeter security, parking facilities, industrial sites, and commercial properties where 24/7 monitoring under variable conditions is essential. Its outdoor rating and temperature tolerance from -40°F to 131°F make it reliable in extreme climates, from freezing winters to hot summer environments.
The vandal-resistant construction and multiple mounting options make it effective for high-risk areas such as retail entrances, transportation hubs, and educational campuses where tampering or intentional damage may occur. Integration with existing network video recorders (NVRs) and video management systems (VMS) is straightforward through standard protocols, supporting both small-scale installations and larger multi-camera deployments.
Perimeter & Entry Point Surveillance
Monitor building exteriors, gates, and access points with clear 1080p video and extended night vision coverage.
- Wide field of view options
- Weatherproof housing
- Tamper-resistant design
Industrial & Infrastructure Monitoring
Deploy in manufacturing plants, warehouses, or utility sites where environmental durability and reliable performance are paramount.
- Extended temperature range
- 90% humidity tolerance
- Impact-resistant construction
Physical Profile
The dome-shaped housing measures 4.67 inches in height and 6.30 inches in diameter, presenting a discreet profile that blends with architectural elements. Weighing approximately 2.19 pounds, the camera maintains a solid feel without excessive bulk. The ivory color finish provides neutral aesthetics suitable for various environments, while the dome form factor offers some discretion compared to more conspicuous camera designs.
- Height
- 4.67" (118.50 mm)
- Weight
- 2.19 lb (995 g)
- Length
- 2.8 mm (0.11")
Highlights
- 2-megapixel CMOS sensor delivers Full HD 1080p video at 60 fps
- Infrared night vision extends to 164 feet (50 meters) for 24/7 monitoring
- Vandal-resistant IK10 rating and IP66/67 weatherproof certification
- 4.3x optical zoom lens with 2.8mm to 12mm focal length range
- Supports H.265 and H.264 video compression for efficient bandwidth use
- Power over Ethernet (PoE) capable for simplified single-cable installation
- Operates in extreme temperatures from -40°F to 131°F (-40°C to 55°C)
- Multiple mounting options: flush, wall, parapet, corner, and pole mounts
- Local storage via SD card with remote management capability
- 3-year limited warranty for added protection
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XNV-6080R |
| Brand Name | Wisenet |
| Product Series | X |
| Product Model | XNV-6080R |
| Product Name | 2M Vandal-Resistant Network IR Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 164.04 ft (50 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H : 119.5 ? ~ 27.9 ? / V : 62.8 ? ~ 15.7 ? / D : 142.1 ? ~ 32.0 ? |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.265,H.264,MPEG-4 AVC,MJPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Zoom |
| Minimum Focal Length | 2.8 mm (0.11") |
| Maximum Focal Length | 12 mm (0.47") |
| Lens Included | Yes |
| Minimum Aperture | f/3.6 |
| Maximum Aperture | f/1.4 |
| Optical Zoom | 4.3x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 24 V AC,12 V DC |
| Power Source Type | AC,DC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | Ivory |
| Mount Type | Flush Mount,Hanging Mount,Wall Mount,Parapet Mount,Corner Mount,Pole Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant |
| Height | 4.67" (118.50 mm) |
| Diameter | 6.30" (160 mm) |
| Weight (Approximate) | 2.19 lb (995 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Day/Night,Built-in IR LED,SD Card Local Storage,Highlight Compensation (HLC),Back Light Compensation (BLC) |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP67 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum video resolution of the Wisenet XNV-6080R camera?
The camera captures 2-megapixel video at 1920 x 1080 resolution, which is Full HD 1080p. This resolution provides clear, detailed imagery suitable for identifying faces, license plates, and other important details in surveillance footage. The 60 frames per second frame rate ensures smooth video playback even with fast-moving subjects.
How far does the night vision reach on this camera?
The built-in infrared LEDs provide effective night vision up to 164 feet (50 meters). This extended range allows for reliable monitoring in complete darkness across substantial distances, making it suitable for perimeter security, parking lots, and other large outdoor areas where lighting may be limited or unavailable.
What environmental protections does this camera offer?
The camera carries both IP66 and IP67 ingress protection ratings, meaning it's dust-tight and protected against powerful water jets and temporary immersion. Additionally, it meets IK10 impact resistance standards, providing protection against 20 joules of impact energy equivalent to 11 pounds dropped from 16 inches. These certifications ensure reliable operation in harsh outdoor conditions.
What power options are available for this network camera?
The XNV-6080R supports three power methods: 24V AC, 12V DC, and Power over Ethernet (PoE). This flexibility allows installers to choose the most convenient option for each deployment scenario. PoE support enables single-cable installation for both power and data transmission, reducing wiring complexity and installation costs.
What mounting options does this dome camera support?
The camera accommodates six different mounting configurations: flush mount, hanging mount, wall mount, parapet mount, corner mount, and pole mount. This versatility allows installation in various architectural environments, from ceiling surfaces to exterior walls and specialized structures, ensuring optimal camera positioning for surveillance coverage.
What video compression formats does the camera support?
The camera supports H.265, H.264, MPEG-4 AVC, and MJPEG compression formats. H.265 offers approximately 50% better compression efficiency than H.264, reducing bandwidth and storage requirements while maintaining video quality. This format flexibility allows integration with different recording systems and optimization for specific network conditions.
What processor does this product use?
Wisenet XNV-6080R 2 Megapixel Outdoor Full HD Network Camera - Color - Dome - 164.04 ft (50 m) Infrared Night Vision - H.265, H.264, - (XNV-6080R) is positioned around the listed processor configuration, giving buyers a clearer view of expected performance for business workloads and everyday deployment needs.
