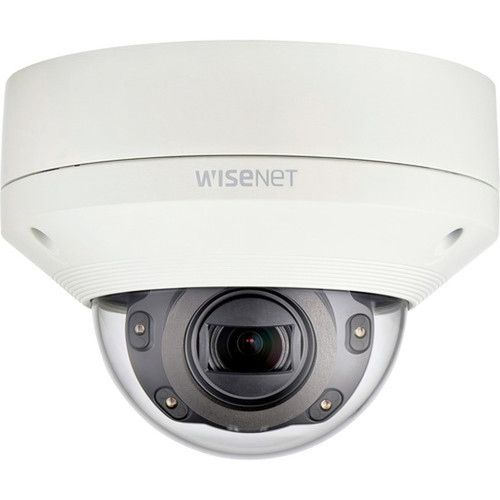

Wisenet XNV-L6080R 2MP Outdoor Dome Network Camera - 1080p HD - 30m IR Night Vision - H. 265 - Vandal-Resistant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera features a 2-megapixel CMOS sensor that records at a maximum resolution of 1920 x 1080 and supports frame rates up to 60 fps for smooth video playback. It utilizes modern video codecs including H.265, H.264, MPEG-4 AVC, and MJPEG, offering flexibility in balancing video quality with network bandwidth and storage requirements. The camera's zoom lens provides a 3.1x optical zoom with a focal length range from 3.2 mm to 10 mm and aperture settings from f/1.6 to f/2.9, allowing for adjustable field of view and focus in diverse surveillance scenarios.
Network connectivity is established through a wired RJ-45 interface, ensuring stable data transmission for continuous recording. The camera supports remote management capabilities, enabling administrators to configure settings, view live feeds, and review footage from centralized security software. Its technical design prioritizes reliability and performance in outdoor conditions, with components optimized for long-term operation in varying weather and temperature ranges.
Key Product Advantages
The Wisenet XNV-L6080R offers distinct advantages for security professionals seeking durable and high-performance surveillance solutions. Its vandal-resistant dome design protects against tampering and environmental elements, while the 30-meter infrared night vision ensures consistent monitoring in low-light conditions. The camera's support for H.265 compression reduces bandwidth consumption by up to 50% compared to older codecs, lowering network costs and extending storage capacity without compromising video quality.
Enhanced Night Vision
Infrared illuminators provide clear monochrome imaging up to 98.43 feet (30 meters), enabling reliable surveillance after dark without additional lighting.
- Infrared night vision type
- 30-meter effective distance
- Color and monochrome support
Efficient Video Compression
H.265 and H.264 codecs optimize video streams for reduced bandwidth and storage requirements, making it ideal for large-scale or bandwidth-constrained deployments.
- H.265 and H.264 support
- Bandwidth efficiency
- Storage optimization
Deployment / Use Cases
This camera is engineered for outdoor surveillance applications where durability, image clarity, and night vision are critical. Its versatile mounting options—including wall, pipe, pole, bracket, and ceiling mounts—allow installation in various environments such as retail storefronts, industrial facilities, educational campuses, and government buildings. The dome form factor provides a discreet appearance while offering protection against weather, vandalism, and physical impact.
Common use cases include perimeter security monitoring, parking lot surveillance, entrance and exit oversight, and asset protection in outdoor storage areas. The camera's 1080p resolution and 60 fps capability make it suitable for identifying details like license plates or facial features in recorded footage. Integration with network video recorders (NVRs) and video management systems (VMS) enables centralized control and recording, supporting both small-scale installations and expansive multi-camera security networks.
Physical Profile
The camera features a compact dome design with a height of 4.67 inches (118.50 mm) and a diameter of 6.30 inches (160 mm), making it unobtrusive yet robust for outdoor mounting. Weighing approximately 2.07 pounds (940 g), it is lightweight enough for easy installation while maintaining structural integrity. The housing is built to withstand outdoor conditions, with materials resistant to moisture, dust, and temperature fluctuations, ensuring reliable operation in environments from -40°C to 60°C. The dome's shape also helps deter tampering and provides a wide viewing angle when paired with the adjustable lens.
- Height
- 4.67" (118.50 mm)
- Weight
- 2.07 lb (940 g)
- Length
- 3.2 mm (0.13")
Highlights
- 2-megapixel resolution delivers crisp 1080p HD video for detailed surveillance
- Infrared night vision covers distances up to 98.43 feet (30 meters) for 24/7 monitoring
- H.265 compression reduces bandwidth and storage needs by up to 50%
- Vandal-resistant dome housing protects against tampering and environmental damage
- 3.1x optical zoom lens allows adjustable field of view and focus
- Supports multiple mounting options: wall, pipe, pole, bracket, and ceiling
- CMOS sensor provides efficient power usage and high-quality imaging in color and monochrome
- Wired RJ-45 connectivity ensures stable network performance for continuous recording
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XNV-L6080R |
| Brand Name | Wisenet |
| Product Series | X |
| Product Model | XNV-L6080R |
| Product Name | 2M Vandal-Resistant Network IR Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color,Monochrome |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.265,H.264,MPEG-4 AVC,MJPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Zoom |
| Minimum Focal Length | 3.2 mm (0.13") |
| Maximum Focal Length | 10 mm (0.39") |
| Minimum Aperture | f/2.9 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 3.1x |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mount Type | Wall Mount,Pipe Mount,Pole Mount,Bracket Mount,Ceiling Mount |
| Form Factor | Dome |
| Height | 4.67" (118.50 mm) |
| Diameter | 6.30" (160 mm) |
| Weight (Approximate) | 2.07 lb (940 g) |
| Miscellaneous | |
| Indoor/Outdoor | Outdoor |
User Manual
FAQ
What is the maximum video resolution of the Wisenet XNV-L6080R camera?
The camera records at a maximum resolution of 1920 x 1080 (1080p HD), providing detailed footage suitable for identifying objects, people, and license plates in surveillance applications.
How far does the night vision reach on this camera?
The infrared night vision effectively covers distances up to 98.43 feet (30 meters), enabling clear monochrome imaging in low-light or no-light conditions for round-the-clock security monitoring.
What video compression formats does this camera support?
It supports H.265, H.264, MPEG-4 AVC, and MJPEG formats. H.265 offers advanced compression for reduced bandwidth and storage usage, while H.264 ensures compatibility with most existing security systems.
Is this camera suitable for outdoor installation?
Yes, it is designed for outdoor use with a vandal-resistant dome housing that protects against weather, dust, and tampering. It operates reliably in a wide temperature range and supports multiple mounting options for exterior surfaces.
What types of mounts are compatible with this dome camera?
The camera supports wall mount, pipe mount, pole mount, bracket mount, and ceiling mount configurations, providing flexibility for installation in various outdoor and indoor environments like parking lots, building perimeters, and entryways.
Does the camera include optical zoom capabilities?
Yes, it features a 3.1x optical zoom lens with a focal length range from 3.2 mm to 10 mm, allowing you to adjust the field of view and focus remotely for optimized surveillance coverage without losing image quality.
What processor does this product use?
Wisenet XNV-L6080R 2 Megapixel Outdoor HD Network Camera - Color, Monochrome - Dome - 98.43 ft (30 m) Infrared Night Vision - H.265, - (XNV-L6080R) is positioned around the listed processor configuration, giving buyers a clearer view of expected performance for business workloads and everyday deployment needs.
