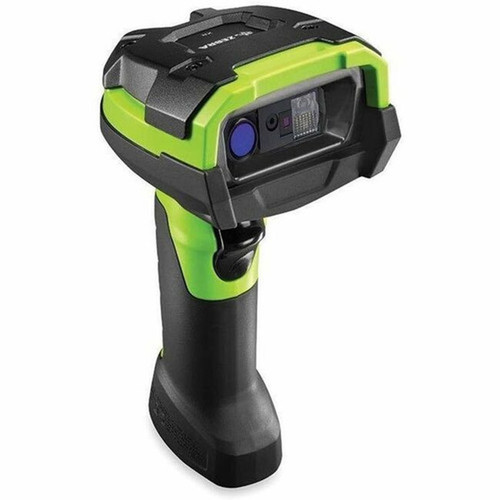

Zebra DS3600 DS3678-XR Barcode Scanner - Wireless Connectivity - SE58Scan Engine - 104.99 ft (32000 mm) Scan Distance - 1D, 2D - Laser (DS3678-XR6F003VZWW)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Code 39
- Code 128
- Code 93
- Codabar/NW7
- Code 11
- MSI Plessey
- UPC/EAN
- I 2 of 5
- Korean 3 of 5
- GS1 DataBar
- Base 32 (Italian Pharma)
- PDF417
- Micro PDF417
- Composite Codes
- TLC-39
- Aztec
- DataMatrix
- MaxiCode
- QR Code
- Micro QR
- Chinese Sensible (Han Xin)
- Postal Codes
- DotCode
- Digital watermark technology
- Supports IUID parsing, the ability to read and separate IUID fields per application requirements
- DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature
- Cordless: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C
Connectivity Technology: Wireless
Scanning Capability: 1D,2D
Barcode Symbology Supported:
1D:
2D:
Digimarc:
IUID Support:
Scan Engine Model: SE58
Light Source: Laser
Image Sensor Type: Imager
Scan Mode: Trigger
Scan Pattern: Area
Scanner Range: Extended Range
Scanning Distance: 104.99 ft (32000 mm)
Field of View (Horizontal): 42°
Field of View (Vertical): 27°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Maximum Ambient Light: 107639 lux
Drop Specification:
Minimum Print Contrast: 25%
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (Code 39): 100 mil (2.54 mm)
Minimum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Maximum Element Resolution (DataMatrix): 0.20" (5.08 mm)
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 25kV
Features: Vibration,Beep,Notification LED,Data Formatter,Data Parser,Diagnostic Reporting
Bluetooth: Yes
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 3100 mAh
Operating Temperature: -22°F (-30°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 5% to 95%
Rugged: Yes
Color Family: Green
Product Color: Industrial Green

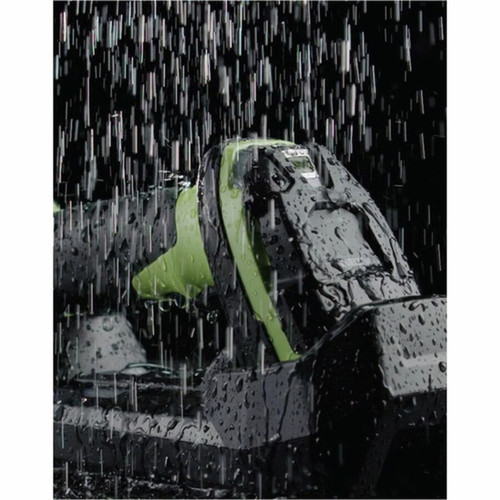

Durability: Dust Proof,Water Proof
Height: 7.30" (185.42 mm)
Width: 3" (76.20 mm)
Depth: 5.60" (142.24 mm)
Weight (Approximate): 14.46 oz (410 g)
Ingress Protection (IP) Rating: IP65,IP68
Application/Usage: Industrial,Manufacturing,Warehouse,Inventory,Self-checkout,Outdoor
- With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
- Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices
- With Bluetooth technology, you can scan barcodes and then transmit data from the base
[custom-specifications]
| Specifications | |
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | DS3678-XR6F003VZWW |
| Manufacturer Website Address | http://www.zebra.com |
| Brand Name | Zebra |
| Product Series | 3600 |
| Product Model | DS3678-XR |
| Product Name | DS3600 DS3678-XR Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D:
2D:
Digimarc:
IUID Support:
|
| Scan Engine Model | SE58 |
| Light Source | Laser |
| Image Sensor Type | Imager |
| Scan Mode | Trigger |
| Scan Pattern | Area |
| Scanner Range | Extended Range |
| Scanning Distance | 104.99 ft (32000 mm) |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 27° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 107639 lux |
| Drop Specification |
|
| Minimum Print Contrast | 25% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 100 mil (2.54 mm) |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (DataMatrix) | 0.20" (5.08 mm) |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 25kV |
| Features | Vibration,Beep,Notification LED,Data Formatter,Data Parser,Diagnostic Reporting |
| Network & Communication | |
| Bluetooth | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3100 mAh |
| Environmental Conditions | |
| Operating Temperature | -22°F (-30°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
| Rugged | Yes |
| Color Family | Green |
| Product Color | Industrial Green |
| Durability | Dust Proof,Water Proof |
| Height | 7.30" (185.42 mm) |
| Width | 3" (76.20 mm) |
| Depth | 5.60" (142.24 mm) |
| Weight (Approximate) | 14.46 oz (410 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP65,IP68 |
| Application/Usage | Industrial,Manufacturing,Warehouse,Inventory,Self-checkout,Outdoor |
[/custom-specifications]
