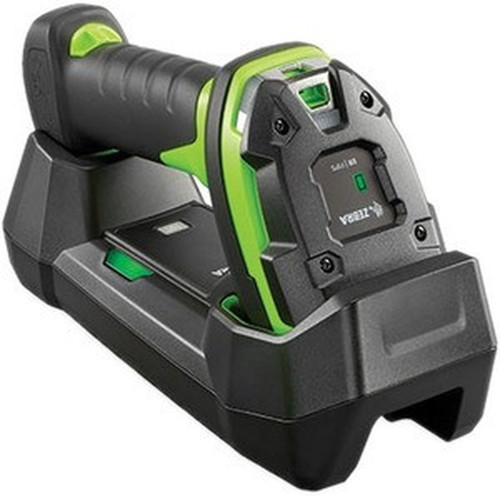

Zebra DS3678-ER3U42A2SVW Barcode Scanner Kit - Wireless - 8. 6" Range - 1D/2D Imager

Manufacturer: Zebra

Zebra DS3678-ER3U42A2SVW Barcode Scanner Kit - Wireless - 8. 6" Range - 1D/2D Imager
SKU: DS3678-ER3U42A2SVW
UPC: 9999999999999
(No reviews) Write a Review
MSRP: $2,577.09
$2,577.09
$1,712.99
Save: $864.10 (33.53%)

Free shipping*

Warranty Information: Covered by Manufacturer
Condition: New
Availability:
Visa, Mastercard, Apple Pay, Google Pay, Interac and PayPal logos We support these payment methods.

Ask for ETA! 🗨️

FleetNetwork servicesServices FleetNetwork
B2B Pricing

Business volume discounts

IT Experts

Technical guidance

IT Configuration

Preparation & staging

Canada Stock

QC · ON · AB · BC

Order with confidenceCommander en confiance
Secure paymentPaiement sécurisé

TLS encrypts payment data in transit.Les données de paiement sont chiffrées en transit par TLS.

Delivery & returnsLivraison et retours

Tracked delivery across Canada.Livraison avec suivi au Canada. Returns policyPolitique de retour

Canadian supportSoutien d’ici

A Canadian business since 2007.Une entreprise québécoise depuis 2007. 1-844-836-8268

Description

    Connectivity Technology: Wireless

    Scanning Capability: 1D,2D

    Barcode Symbology Supported:

    1D:

    • Code 39
    • Code 128
    • Code 93
    • Codabar/NW7
    • Code 11
    • MSI Plessey
    • UPC/EAN, I 2 of 5
    • Korean 3 of 5
    • GS1 DataBar
    • Base 32 (Italian Pharma)

    2D:

    • PDF417
    • Micro PDF417
    • Composite Codes
    • TLC-39
    • Aztec
    • DataMatrix
    • MaxiCode
    • QR Code
    • Micro QR
    • Chinese Sensible (Han Xin)
    • Postal Codes
    • DotCode

    Digimarc:

    • Digital watermark technology

    IUID Support:

    • Supports IUID parsing, the ability to read and separate IUID fields per application requirement

    Image Sensor Type: Imager

    Scan Pattern: Omni-directional

    Scanner Range: Extended Range

    Scanning Distance: 8.60" (218.44 mm)

    Cable Type Included: USB

    Field of View (Horizontal): 42°

    Field of View (Vertical): 28°

    Reading Angle (Skew): 60°

    Reading Angle (Pitch): 60°

    Reading Angle (Roll): 360°

    Drop Specification: Withstands multiple 8.0 ft. / 2.4 m drops to concrete

    Minimum Print Contrast: 15%

    Minimum Element Resolution (DataMatrix): 10 mil (0.25 mm)

    Maximum Element Resolution (DataMatrix): 0.20" (5.08 mm)

    Bluetooth: Yes

    Form Factor: Handheld

    Rugged: Yes

    Color Family: Green

    Product Color: Industrial Green

    Height: 7.30" (185.42 mm)

    Width: 3" (76.20 mm)

    Depth: 5.60" (142.24 mm)

    Weight (Approximate): 15.38 oz (436.02 g)

    Ingress Protection (IP) Rating: IP67,IP65

    Application/Usage: Industrial,Warehouse,Manufacturing

    Country of Origin: China

[custom-highlights]
  • Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices
  • Bluetooth technology - Allows compatibility with most of your smart devices
[/custom-highlights]

[custom-specifications]

Specifications
ManufacturerZebra Technologies Corporation
Manufacturer Part NumberDS3678-ER3U42A2SVW
Manufacturer Website Addresshttp://www.zebra.com
Brand NameZebra
Product Series3600
Product ModelDS3678-ER
Product NameDS3678-ER Barcode Scanner Kit
Product TypeBarcode Scanner Kit
Technical Information
Connectivity TechnologyWireless
Scanning Capability1D,2D
Barcode Symbology Supported

1D:

  • Code 39
  • Code 128
  • Code 93
  • Codabar/NW7
  • Code 11
  • MSI Plessey
  • UPC/EAN, I 2 of 5
  • Korean 3 of 5
  • GS1 DataBar
  • Base 32 (Italian Pharma)

2D:

  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Chinese Sensible (Han Xin)
  • Postal Codes
  • DotCode

Digimarc:

  • Digital watermark technology

IUID Support:

  • Supports IUID parsing, the ability to read and separate IUID fields per application requirement
Image Sensor TypeImager
Scan PatternOmni-directional
Scanner RangeExtended Range
Scanning Distance8.60" (218.44 mm)
Cable Type IncludedUSB
Field of View (Horizontal)42°
Field of View (Vertical)28°
Reading Angle (Skew)60°
Reading Angle (Pitch)60°
Reading Angle (Roll)360°
Drop SpecificationWithstands multiple 8.0 ft. / 2.4 m drops to concrete
Minimum Print Contrast15%
Minimum Element Resolution (DataMatrix)10 mil (0.25 mm)
Maximum Element Resolution (DataMatrix)0.20" (5.08 mm)
Network & Communication
BluetoothYes
Physical Characteristics
Form FactorHandheld
RuggedYes
Color FamilyGreen
Product ColorIndustrial Green
Height7.30" (185.42 mm)
Width3" (76.20 mm)
Depth5.60" (142.24 mm)
Weight (Approximate)15.38 oz (436.02 g)
Miscellaneous
Ingress Protection (IP) RatingIP67,IP65
Application/UsageIndustrial,Warehouse,Manufacturing
Country of OriginChina

[/custom-specifications]

[custom-user-manual]

Available Documentation:


Additional-pdf4
Additional-pdf3
Additional-pdf2
Additional-pdf1
Manufacturer-Brochure

[/custom-user-manual]
