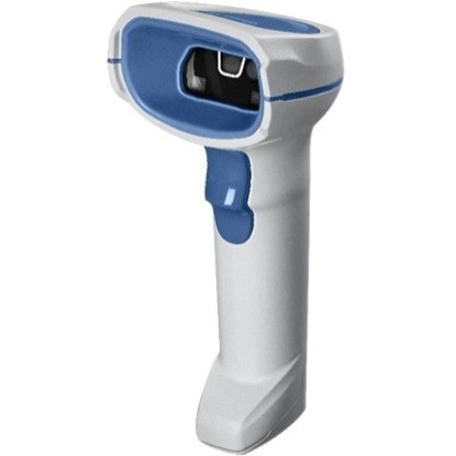

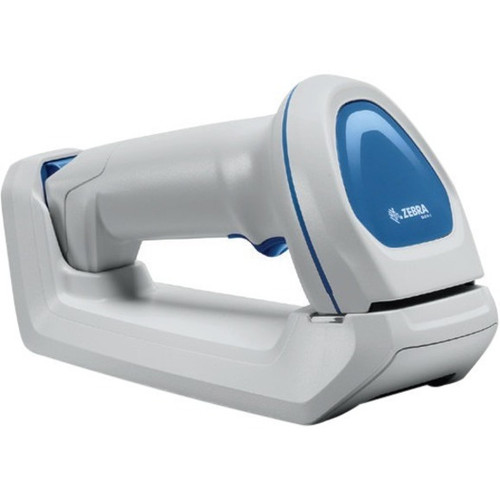

Zebra DS8178-HCBU210FP5W DS8178-HC Handheld Barcode Scanner - Wireless Bluetooth USB Imager for 1D/2D Barcodes in Healthcare White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Zebra DS8178-HC handheld barcode scanner employs an advanced imager sensor to capture both 1D and 2D barcodes at a consistent rate of 1 scan per second. This wireless device utilizes Bluetooth technology for cable-free operation, transmitting scanned data to a host system via its USB interface.
The scanner supports an extensive range of barcode symbologies, including common retail formats like UPC/EAN and Code 128, as well as specialized 2D codes such as DataMatrix, QR Code, PDF417, and postal codes. Built for durability and precision, the imager-based scanning engine ensures reliable performance across various lighting conditions and surface types.
Relevant factors for this section include Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Bluetooth. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The DS8178-HC enhances operational efficiency with its wireless design and broad symbology support. Its Healthcare White color scheme aligns with clinical aesthetics, while the lightweight build promotes extended use without fatigue.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Wireless Mobility, Comprehensive Symbology Support.
Wireless Mobility
Bluetooth connectivity eliminates cable clutter, enhancing mobility in dynamic environments like warehouses, clinics, and retail floors.
- Cable-free operation
- Flexible deployment
- Enhanced user mobility
Comprehensive Symbology Support
Compatible with legacy and modern labeling systems worldwide, from pharmaceutical applications using GS1 DataBar to international formats like Chinese Sensible (Han Xin).
- Over 20 symbologies supported
- Global compatibility
- Future-proof scanning
Deployment / Use Cases
The Zebra DS8178-HC is designed for versatile deployment across multiple environments where reliable barcode scanning is essential. Its wireless connectivity and healthcare-appropriate color make it particularly suitable for clinical settings, while its robust scanning capabilities serve retail and inventory management needs equally well.
In healthcare facilities, the scanner supports medication administration, patient identification, and inventory tracking with its specialized symbology support. For retail and warehouse operations, it handles product scanning, inventory counts, and point-of-sale transactions with equal efficiency.
Healthcare Applications
Ideal for clinical environments with Healthcare White finish and support for pharmaceutical symbologies like GS1 DataBar.
- Medication scanning
- Patient ID verification
- Medical inventory management
Retail & Inventory Management
Supports common retail formats including UPC/EAN and Code 128 for efficient product scanning and inventory control.
- Point-of-sale scanning
- Stock management
- Price verification
Physical Profile
The DS8178-HC features compact dimensions of 6.60" x 2.60" x 4.20" (167.64 mm x 66.04 mm x 106.68 mm) with a lightweight design weighing only 5.50 oz (156 g). The handheld form factor provides comfortable ergonomics for extended use, while the Healthcare White finish maintains a professional appearance suitable for clinical environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6.60" (167.64 mm), 2.60" (66.04 mm), 4.20" (106.68 mm), 5.50 oz (156 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.60" (66.04 mm)
- Depth
- 4.20" (106.68 mm)
- Height
- 6.60" (167.64 mm)
- Weight
- 5.50 oz (156 g)
Highlights
- Wireless handheld barcode scanner with Bluetooth and USB connectivity
- Scans both 1D and 2D barcodes at 1 scan per second
- Supports over 20 symbologies including DataMatrix, QR Code, and UPC/EAN
- Healthcare White color scheme for clinical environments
- Lightweight design at 5.50 oz (156 g) for extended use
- Imager-based sensor for reliable barcode capture
- Compact dimensions: 6.60" x 2.60" x 4.20"
- Manufactured by Zebra Technologies Corporation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | DS8178-HCBU210FP5W |
| Brand Name | Zebra |
| Product Series | DS8100-HC |
| Product Model | DS8178-HC |
| Product Name | DS8178-HC Handheld Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Code 39 Code 128 Code 93 Codabar/NW7 Code 11 MSI Plessey UPC/EAN I 2 of 5 Korean 3 of 5 GS1 DataBar Base 32 (Italian Pharma) 2D: PDF417 Micro PDF417 Composite Codes TLC-39 Aztec DataMatrix MaxiCode QR Code Micro QR Chinese Sensible (Han Xin) Postal Codes |
| Image Sensor Type | Imager |
| Scan Rate | 1 scan/s |
| Network & Communication | |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Host Interface | USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Product Color | Healthcare White |
| Height | 6.60" (167.64 mm) |
| Width | 2.60" (66.04 mm) |
| Depth | 4.20" (106.68 mm) |
| Weight (Approximate) | 5.50 oz (156 g) |
| Miscellaneous | |
| Country of Origin | Mexico |
User Manual
FAQ
What types of barcodes can the Zebra DS8178-HC scanner read?
The DS8178-HC scanner reads both 1D and 2D barcodes, supporting over 20 symbologies including common formats like UPC/EAN, Code 128, and Code 39, plus specialized 2D codes such as DataMatrix, QR Code, PDF417, Aztec, MaxiCode, and postal codes. It also handles pharmaceutical formats like GS1 DataBar and international codes like Chinese Sensible (Han Xin).
How does the wireless connectivity work on this barcode scanner?
The scanner features Bluetooth wireless technology for cable-free operation, transmitting scanned data to compatible host systems. It also includes a USB host interface for direct wired connections when needed. This dual-connectivity approach provides flexibility for different deployment scenarios and environments.
What is the scanning speed of the DS8178-HC scanner?
The scanner captures barcodes at a rate of 1 scan per second using its advanced imager sensor. This consistent scanning speed ensures reliable performance for various applications including inventory management, point-of-sale transactions, and clinical documentation.
Why is the Healthcare White color significant for this scanner?
The Healthcare White finish is specifically designed for clinical environments where cleanliness and professional appearance are important. This color scheme helps the scanner blend into healthcare settings while maintaining visibility for easy location and use during medical procedures and inventory management.
What are the physical dimensions and weight of this handheld scanner?
The scanner measures 6.60" (167.64 mm) in height, 2.60" (66.04 mm) in width, and 4.20" (106.68 mm) in depth, with a lightweight construction weighing only 5.50 oz (156 g). These compact dimensions and light weight make it comfortable for extended handheld use in various operational environments.
What environments is the DS8178-HC scanner best suited for?
This scanner is engineered for healthcare, retail, and inventory management environments. Its Healthcare White color and pharmaceutical symbology support make it ideal for clinical applications, while its robust scanning capabilities and wireless connectivity serve retail point-of-sale and warehouse inventory tracking needs effectively.
