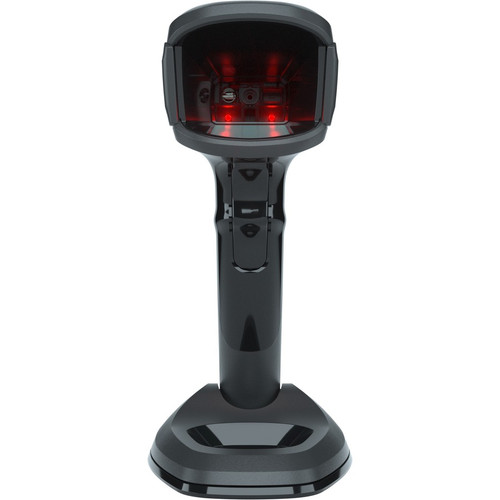

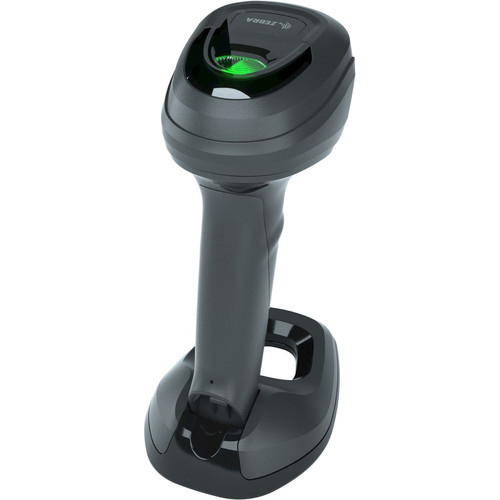

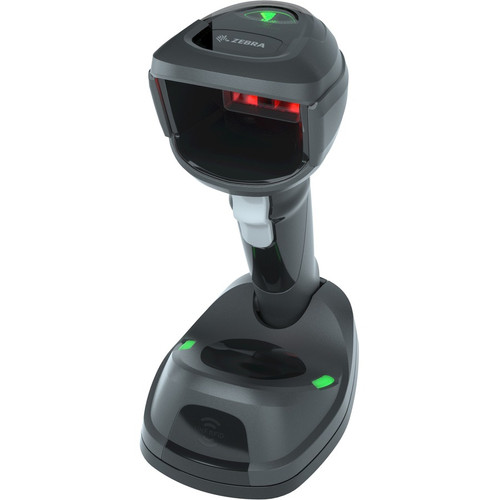

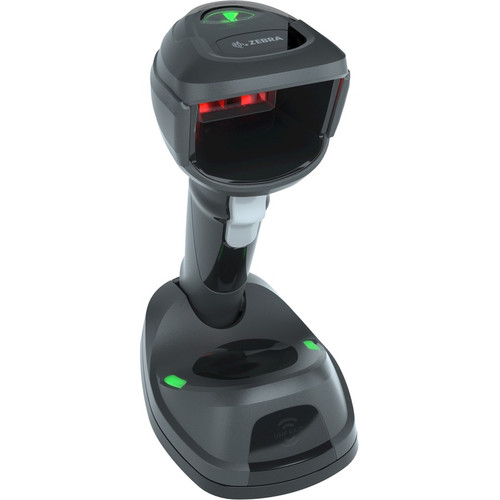

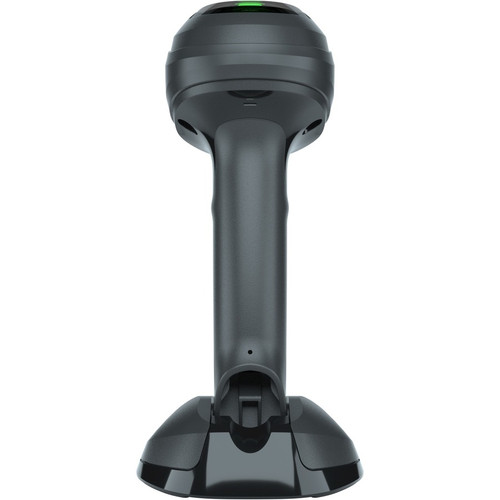

Zebra DS9908-SR4U2100AZW DS9908-SR Barcode Scanner Kit - 1D/2D Hybrid Imager - 24.7" Scan Distance - USB Cable - Handheld - Midnight Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The DS9908-SR utilizes a high-resolution 1280 x 800 imager sensor with LED illumination for consistent barcode capture across diverse symbologies. It supports comprehensive 1D codes including Code 39, Code 128, UPC/EAN, and GS1 DataBar, plus 2D formats like DataMatrix, QR Code, PDF417, and Aztec. The scanner achieves a minimum print contrast of 16% and handles maximum ambient light up to 107,600 lux for reliable performance in bright environments.
Advanced reading angles include 60° skew and pitch with 360° roll capability, allowing flexible scanning orientations. The 48° horizontal and 31° vertical field of view provides broad coverage for efficient scanning. Image capture supports JPEG, TIFF, and BMP formats for documentation needs.
Relevant factors for this section include Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Radio Frequency. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The DS9908-SR combines industrial-grade durability with advanced scanning technology for mission-critical applications. Its hybrid imager design eliminates the need for multiple scanners by handling both 1D and 2D barcodes with equal proficiency. The extended 24.7" scanning distance provides operational flexibility in various workstation configurations.
Enhanced Durability
Built to survive harsh environments with IP52 rating and drop resistance up to 5 feet onto concrete.
- Scratch resistant construction
- Spill resistant design
- Dust resistant sealing
Comprehensive Symbology Support
Reads virtually all common barcode formats including specialized codes for pharmaceutical, postal, and currency applications.
- 1D: Code 39, Code 128, UPC/EAN
- 2D: DataMatrix, QR Code, PDF417
- OCR: OCR-A, OCR-B, MICR
Operational Reliability
Maintains consistent performance across wide temperature ranges and challenging lighting conditions.
- Operating temperature: 32°F to 122°F
- Storage temperature: -40°F to 158°F
- Humidity tolerance: 5% to 95% non-condensing
Deployment / Use Cases
The DS9908-SR excels in retail environments where rapid, accurate scanning drives checkout efficiency and inventory management. Its cable connectivity ensures stable, high-speed data transfer without wireless interference, making it ideal for fixed workstation setups. The scanner's rugged design withstands the daily wear of high-volume scanning operations.
Quick service restaurants benefit from the scanner's ability to read damaged or poorly printed barcodes on packaging and labels. Industrial settings utilize the extended scanning distance for warehouse applications where items may be at varying distances. Convenience stores and similar retail operations appreciate the comprehensive symbology support for diverse product types.
Retail Checkout
Provides fast, accurate scanning at point-of-sale with reliable USB connectivity and durable construction for high-traffic environments.
Inventory Management
Handles warehouse barcode scanning with extended reach and comprehensive format support for efficient stock tracking and management.
Physical Profile
The handheld scanner measures 8" H × 3.70" W × 5.20" D (203.20 × 93.98 × 132.08 mm) with an approximate weight of 11.64 oz (330 g). Its ergonomic design balances comfortable grip with operational stability during extended use. The Midnight Black finish maintains a professional appearance while hiding minor wear in busy environments.
- Width
- 3.70" (93.98 mm)
- Depth
- 5.20" (132.08 mm)
- Height
- 8" (203.20 mm)
- Weight
- 11.64 oz (330 g)
What's in the Box
The DS9908-SR Barcode Scanner Kit includes all components needed for immediate deployment in retail, QSR, or industrial settings.
Highlights
- 1D and 2D hybrid imager scans both linear and matrix barcodes
- 24.7" standard-range scanning distance for flexible positioning
- USB cable connectivity ensures reliable, high-speed data transfer
- Rugged handheld design withstands drops up to 5 feet onto concrete
- IP52 rating provides protection against dust and water splashes
- Comprehensive symbology support including specialized formats
- 1280 x 800 image sensor resolution for detailed capture
- Operating temperature range from 32°F to 122°F (0°C to 50°C)
- Five-year limited warranty for long-term reliability
- Midnight Black finish with scratch-resistant construction
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | DS9908-SR4U2100AZW |
| Brand Name | Zebra |
| Product Series | DS9900 |
| Product Model | DS9908-SR |
| Product Name | DS9908-SR Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Code 39 Code 128 Code 93 Codabar/NW7 Code 11 MSI Plessey UPC/EAN I 2 of 5 Korean 3 of 5 GS1 DataBar Base 32 (Italian Pharma) 2D: PDF417 Micro PDF417 Composite Codes TLC-39 Aztec DataMatrix MaxiCode QR Code Micro QR Han Xin Postal Codes OCR: OCR-A OCR-B MICR US Currency Digimarc: Digimarc barcodes |
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Pattern | Area |
| Scanner Range | Standard Range |
| Scanning Distance | 24.70" (627.38 mm) |
| Cable Type Included | USB |
| Field of View (Horizontal) | 48° |
| Field of View (Vertical) | 31° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Image Formats | JPEG,TIFF,BMP |
| Maximum Ambient Light | 107600 lux |
| Drop Specification | DS9908: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
| Minimum Print Contrast | 16% |
| Maximum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 15kV |
| Features | Checkpoint EAS,Notification LED |
| Network & Communication | |
| Radio Frequency | Yes |
| Interfaces/Ports | |
| Host Interface | USB |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Midnight Black |
| Durability | Scratch Resistant,Drop Resistant,Spill Resistant,Dust Resistant |
| Height | 8" (203.20 mm) |
| Width | 3.70" (93.98 mm) |
| Depth | 5.20" (132.08 mm) |
| Weight (Approximate) | 11.64 oz (330 g) |
| Miscellaneous | |
| Package Contents | DS9900 Series Corded Hybrid Imager for Retail DS9908-SR00004ZZWW Scanner CBA-U21-S07ZBR Suielded USB Cable |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Retail,Quick Service Restaurant (QSR),Industrial,Convenience Store |
| Warranty | |
| Limited Warranty | 5 Year |
FAQ
What types of barcodes can the DS9908-SR scanner read?
The DS9908-SR reads both 1D and 2D barcode formats. For 1D barcodes, it supports Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, and Base 32 (Italian Pharma). For 2D barcodes, it handles PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, and postal codes. It also reads OCR-A, OCR-B, MICR, US Currency, and Digimarc barcodes for comprehensive scanning capability.
What is the maximum scanning distance for this barcode scanner?
The DS9908-SR offers a standard-range scanning distance of 24.70 inches (627.38 mm). This extended reach allows operators to scan items at varying distances without needing to reposition the scanner constantly. The 48° horizontal and 31° vertical field of view, combined with 60° skew and pitch angles with 360° roll capability, provides flexible scanning orientations for efficient operation in retail, warehouse, and industrial environments.
How durable is this Zebra barcode scanner for industrial use?
The DS9908-SR is engineered for industrial durability with multiple protective features. It withstands multiple drops from 5.0 feet (1.5 meters) onto concrete surfaces. The scanner carries an IP52 ingress protection rating, making it resistant to dust and water splashes. Additional durability features include scratch-resistant, spill-resistant, and dust-resistant construction. These characteristics ensure reliable performance in demanding environments like warehouses, manufacturing facilities, and high-traffic retail locations.
What connectivity options does this scanner support?
The DS9908-SR uses cable connectivity technology with a USB host interface. The kit includes a shielded USB cable (CBA-U21-S07ZBR) for direct connection to workstations, point-of-sale systems, or notebooks. This wired approach provides stable, high-speed data transfer without wireless interference or battery concerns. The cable connectivity makes it ideal for fixed workstation setups where consistent performance is essential for checkout operations or inventory management systems.
What environmental conditions can this scanner operate in?
The DS9908-SR operates reliably across a wide temperature range from 32°F to 122°F (0°C to 50°C) and stores safely from -40°F to 158°F (-40°C to 70°C). It handles humidity levels from 5% to 95% non-condensing. The scanner functions in maximum ambient light up to 107,600 lux, making it suitable for brightly lit retail environments or outdoor applications. These environmental tolerances ensure consistent performance in various operational conditions from refrigerated areas to warehouse settings.
What warranty coverage comes with the DS9908-SR scanner?
Zebra provides a five-year limited warranty for the DS9908-SR Barcode Scanner Kit. This extended warranty period reflects the product's durability and reliability for commercial and industrial applications. The warranty covers manufacturing defects and ensures long-term support for businesses investing in robust scanning technology. This coverage provides peace of mind for organizations deploying these scanners in mission-critical retail, QSR, and industrial operations where continuous uptime is essential.
