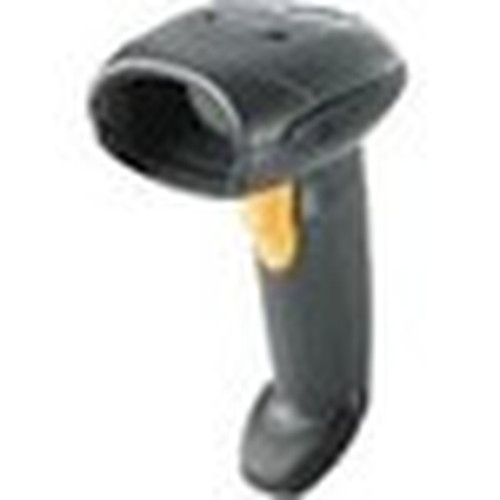

Zebra LI4278-PRBU2100AWR LI4278 Cordless Linear Scanner - Wireless Bluetooth - 547 scan/s - 1D - Twilight Black - Handheld
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the LI4278's performance is its linear imager sensor with LED illumination, capable of capturing 1D barcodes at 547 scans per second. The scanner maintains reliable operation across a 3-inch (76.20 mm) scanning distance with 65° skew and pitch angles plus 45° roll tolerance. Advanced motion handling accommodates items moving at up to 25 inches per second while the 108,000 lux maximum ambient light rating ensures performance in brightly lit environments.
The scanner decodes an extensive range of 1D symbologies including UPC/EAN variants, Code 128 with GS1-128, Code 39 (including Trioptic and Full ASCII), Code 93, Code 11, Interleaved 2 of 5, Codabar, MSI, Chinese 2 of 5, and GS1 DataBar formats. Minimum print contrast of 15% enables reliable scanning of challenging barcodes while the extended range capability provides flexibility in deployment scenarios.
Key Product Advantages
The LI4278 cordless scanner transforms barcode capture workflows by eliminating cable constraints while delivering industrial-grade performance. Wireless operation enables greater mobility and reduces workstation clutter, particularly valuable in space-constrained retail counters or mobile inventory applications. The combination of high-speed scanning with robust construction addresses the demands of high-volume environments where reliability directly impacts operational efficiency.
Wireless Productivity
Bluetooth connectivity enables cable-free operation across PC and smartphone platforms, reducing setup complexity and increasing user mobility during scanning tasks.
- Eliminates cable management overhead
- Supports both stationary and mobile workflows
- Simplifies multi-device deployment
Enterprise Durability
Tested to survive over 100 drops from 5 feet and 6-foot drops to concrete, with IP53 protection against dust and water spray for reliable performance in demanding environments.
- Industrial-grade drop resistance
- Environmental protection rating
- Long-term reliability in high-use scenarios
Comprehensive Symbology Support
Decodes virtually all common 1D barcode formats including retail UPC/EAN, industrial Code 39 and 128 variants, pharmaceutical codes, and GS1 DataBar standards.
- Retail and industrial code coverage
- Pharmaceutical code compatibility
- GS1 standard compliance
Deployment / Use Cases
The LI4278 excels in retail point-of-sale environments where rapid item scanning drives customer throughput. Cashiers benefit from the wireless design that eliminates cable snags while maintaining the 547 scan/s speed needed during peak shopping periods. The scanner's compact handheld form factor and Twilight Black aesthetic integrate seamlessly with modern POS system designs.
In warehouse and inventory management applications, the cordless operation enables efficient cycle counting and receiving processes without workstation constraints. The extended scanning range accommodates various package sizes while the robust construction withstands the physical demands of distribution center environments. Healthcare settings leverage the scanner for patient wristband verification and medication administration, where the LED illumination provides patient-friendly aiming without harsh laser beams.
Physical Profile
The LI4278 presents a compact handheld design measuring 3.84" (97.54 mm) in height, 2.75" (69.85 mm) in width, and 7.34" (186.44 mm) in depth. Weighing just 7.90 ounces (224 grams), the scanner balances substantial feel with comfortable extended use. The Twilight Black finish provides a professional appearance that complements various workstation aesthetics while offering practical resistance to visible wear.
- Width
- 2.75" (69.85 mm)
- Depth
- 7.34" (186.44 mm)
- Height
- 3.84" (97.54 mm)
- Weight
- 7.90 oz (224 g)
Highlights
- Wireless Bluetooth connectivity eliminates cable constraints
- High-speed 547 scans per second performance
- Comprehensive 1D barcode symbology support
- Rugged construction survives 6-foot drops to concrete
- IP53 rating for dust and water spray protection
- Twilight Black handheld design
- Extended 3-inch scanning distance
- PC and smartphone platform compatibility
- 3-year limited warranty coverage
- RoHS compliant environmental design
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | LI4278-PRBU2100AWR |
| Brand Name | Zebra |
| Product Model | LI4278 |
| Product Name | LI4278 Cordless Linear Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D |
| Barcode Symbology Supported | UPC/EAN: UPC-A UPC-E UPC-E1 EAN-8/JAN 8 EAN-13/JAN 13 Bookland EAN Bookland ISBN Format UCC Coupon Extended Code ISSN EAN Code 128 Including GS1-128 ISBT 128 ISBT Concatenation? Code 39 including Trioptic Code 39 Convert Code 39 to Code 32 (Italian Pharmacy Code) Code 39 Full ASCII Conversion Code 93 Code 11? Matrix 2 of 5 Interleaved 2 of 5 (ITF)? Discrete 2 of 5 (DTF) ? Codabar (NW - 7)? MSI Chinese 2 of 5 IATA Inverse 1D (except all GS1 DataBars)? GS1 DataBar including GS1 DataBar-14 GS1 DataBar Limited GS1 DataBar Expanded |
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Rate | 547 scan/s |
| Scan Pattern | Linear |
| Scanner Range | Extended Range |
| Scanning Distance | 3" (76.20 mm) |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 45° |
| Motion Tolerance | 25 in/s (635 mm/s) |
| Maximum Ambient Light | 108000 lux |
| Drop Specification | Over 100 drops at 5 ft./1.5 m at room temperature; survives 6ft./1.8 m drops to concrete |
| Minimum Print Contrast | 15% |
| Network & Communication | |
| Bluetooth | Yes |
| Physical Characteristics | |
| Form Factor | Handheld |
| Product Color | Twilight Black |
| Height | 3.84" (97.54 mm) |
| Width | 2.75" (69.85 mm) |
| Depth | 7.34" (186.44 mm) |
| Weight (Approximate) | 7.90 oz (224 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP53 |
| Platform Supported | PC,Smartphone |
| Country of Origin | Mexico |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What type of barcodes can the Zebra LI4278 scanner read?
The LI4278 reads 1D barcodes including UPC/EAN retail codes, Code 128 (with GS1-128), Code 39 (including Trioptic and Full ASCII variants), Code 93, Code 11, Interleaved 2 of 5, Codabar, MSI, Chinese 2 of 5, and GS1 DataBar formats. It supports virtually all common 1D symbologies used in retail, industrial, pharmaceutical, and logistics applications.
How does the wireless connectivity work with different devices?
The scanner uses Bluetooth wireless technology to connect with both PCs and smartphones. This cable-free operation enables flexible deployment in traditional point-of-sale systems with computers or mobile workflows with smartphones and tablets. The wireless design eliminates cable management issues while maintaining reliable data transmission.
What is the scanning speed of this barcode scanner?
The LI4278 captures barcodes at 547 scans per second, providing rapid data capture that supports high-volume scanning environments. This speed ensures efficient processing during peak retail periods, warehouse receiving operations, and inventory management tasks where throughput directly impacts productivity.
How durable is the Zebra LI4278 scanner for daily use?
Tested to survive over 100 drops from 5 feet (1.5 meters) at room temperature and 6-foot (1.8 meter) drops to concrete, the LI4278 offers industrial-grade durability. The IP53 rating provides protection against dust ingress and water spray, making it suitable for demanding retail, warehouse, and healthcare environments where equipment faces regular physical stress.
What is the scanning distance and angle range?
The scanner operates at a 3-inch (76.20 mm) scanning distance with generous reading angles: 65° skew, 65° pitch, and 45° roll tolerance. This extended range and angular flexibility accommodate various barcode orientations and package sizes, reducing the precision required during scanning operations while maintaining reliable capture rates.
What warranty coverage comes with the LI4278 scanner?
Zebra provides a 3-year limited warranty for the LI4278 cordless linear scanner. This coverage supports long-term deployment in commercial and industrial environments, backed by the manufacturer's commitment to product reliability and performance throughout the warranty period.
What print speed is listed?
Zebra LI4278 Cordless Linear Scanner - Wireless Connectivity - 547 scan/s - 3" (76.20 mm) Scan Distance - 1D - LED - Imager - Linear - (LI4278-PRBU2100AWR) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
What sheet capacity, media size, or paper handling detail is listed?
Zebra LI4278 Cordless Linear Scanner - Wireless Connectivity - 547 scan/s - 3" (76.20 mm) Scan Distance - 1D - LED - Imager - Linear - (LI4278-PRBU2100AWR) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
